ZS/FR 13-14-15 september 2010 - Strong 2m and new 70cms

Openings of 13/14/15-09-2010 - Strong 2m and new 70cms qso

The general situation :

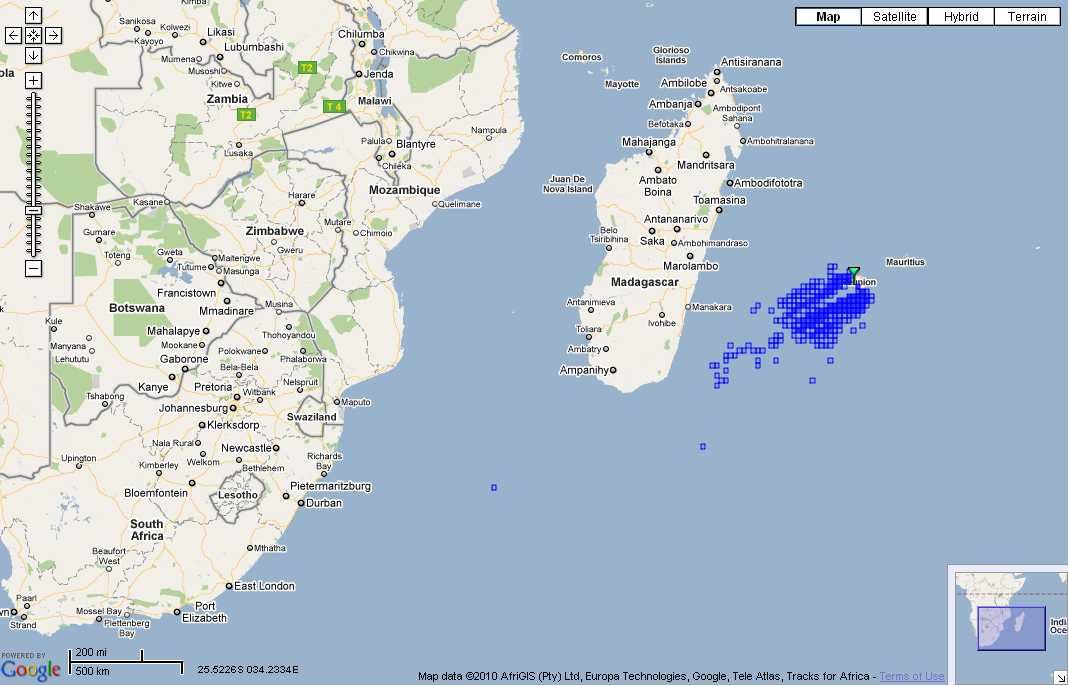

1-AIS RX

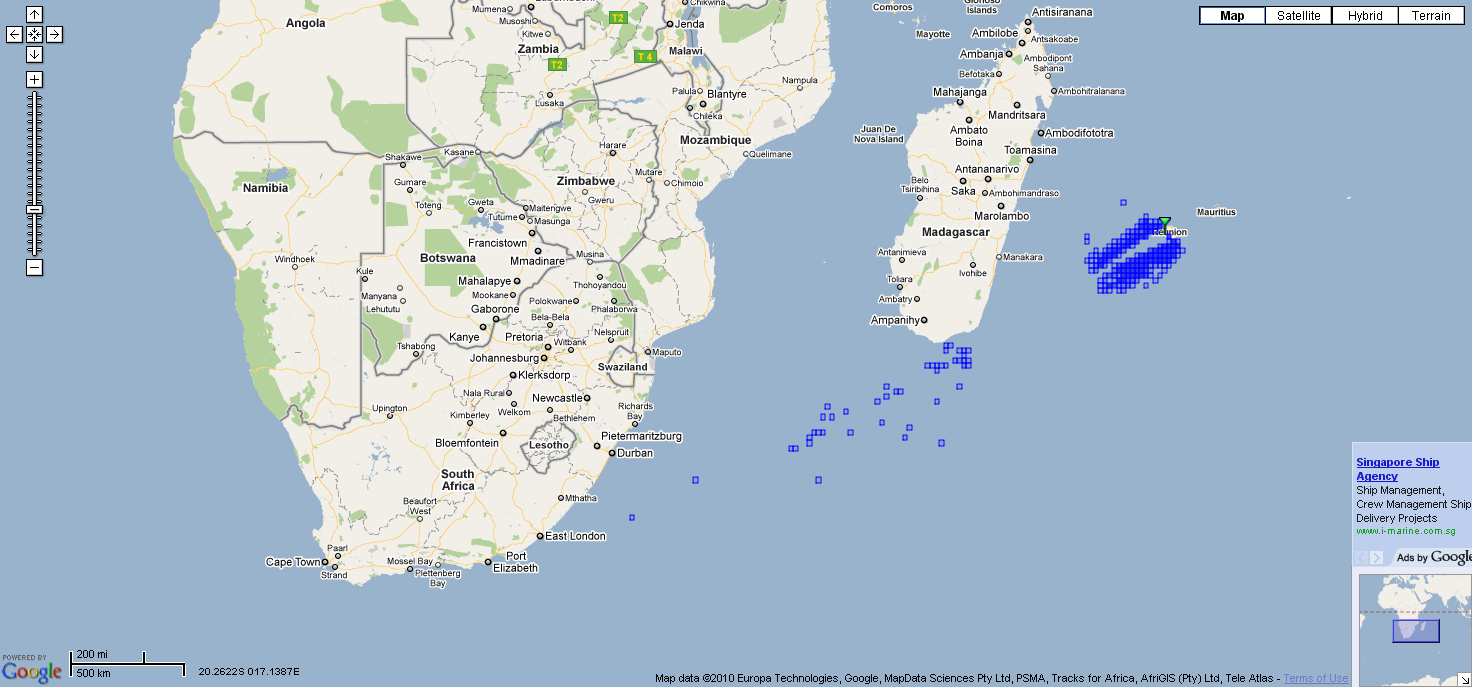

Each picture represents abt 24h data.

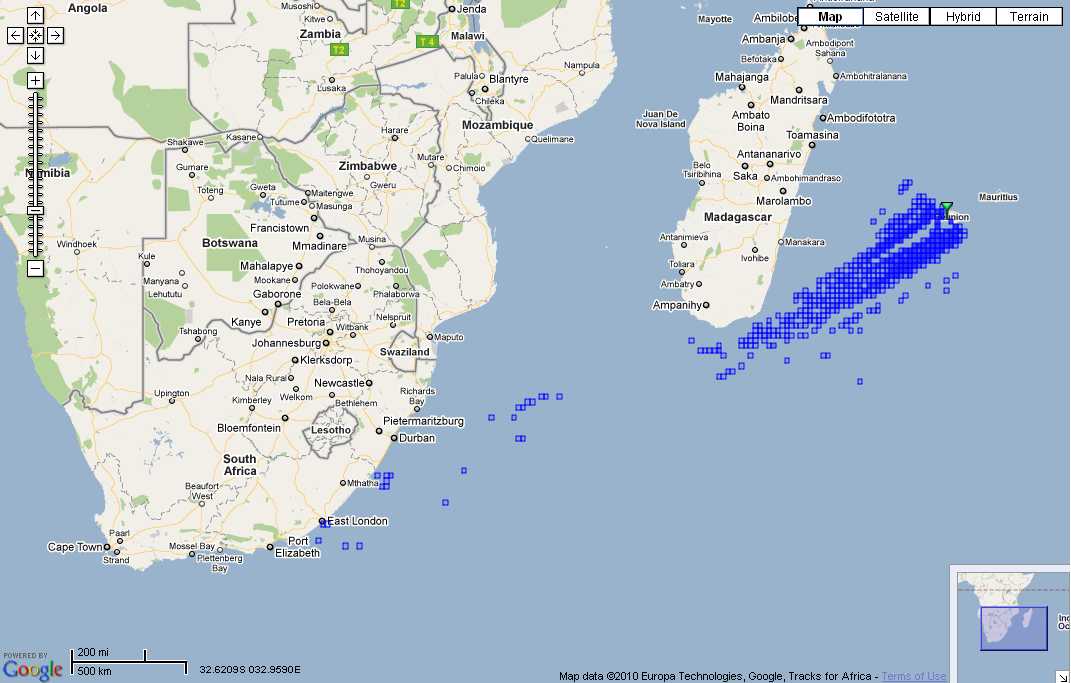

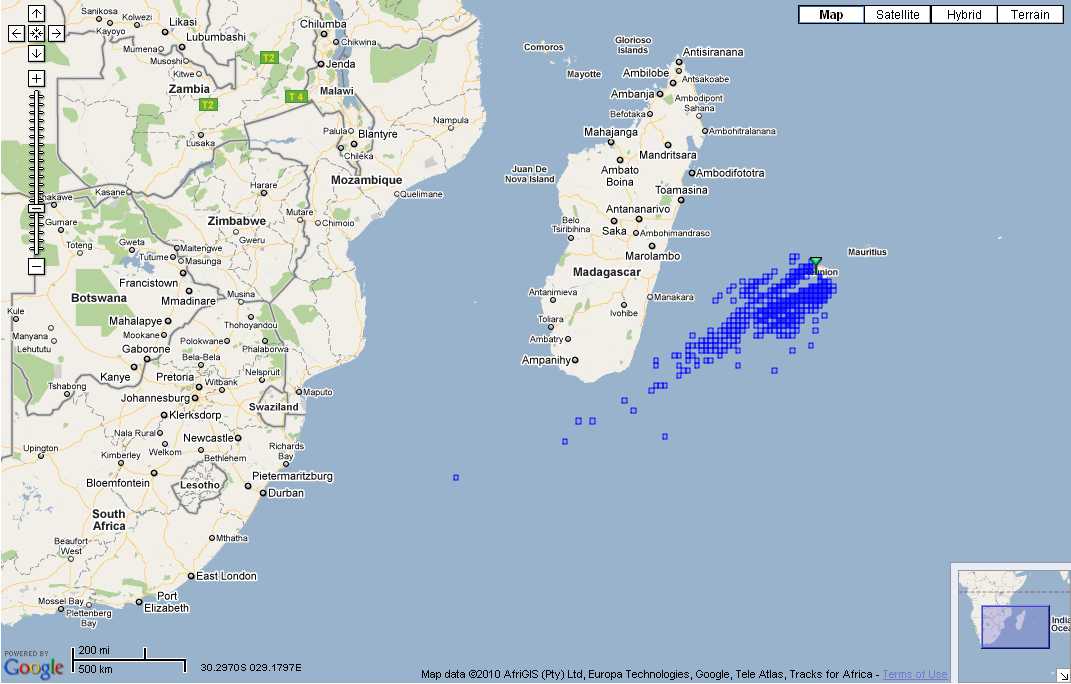

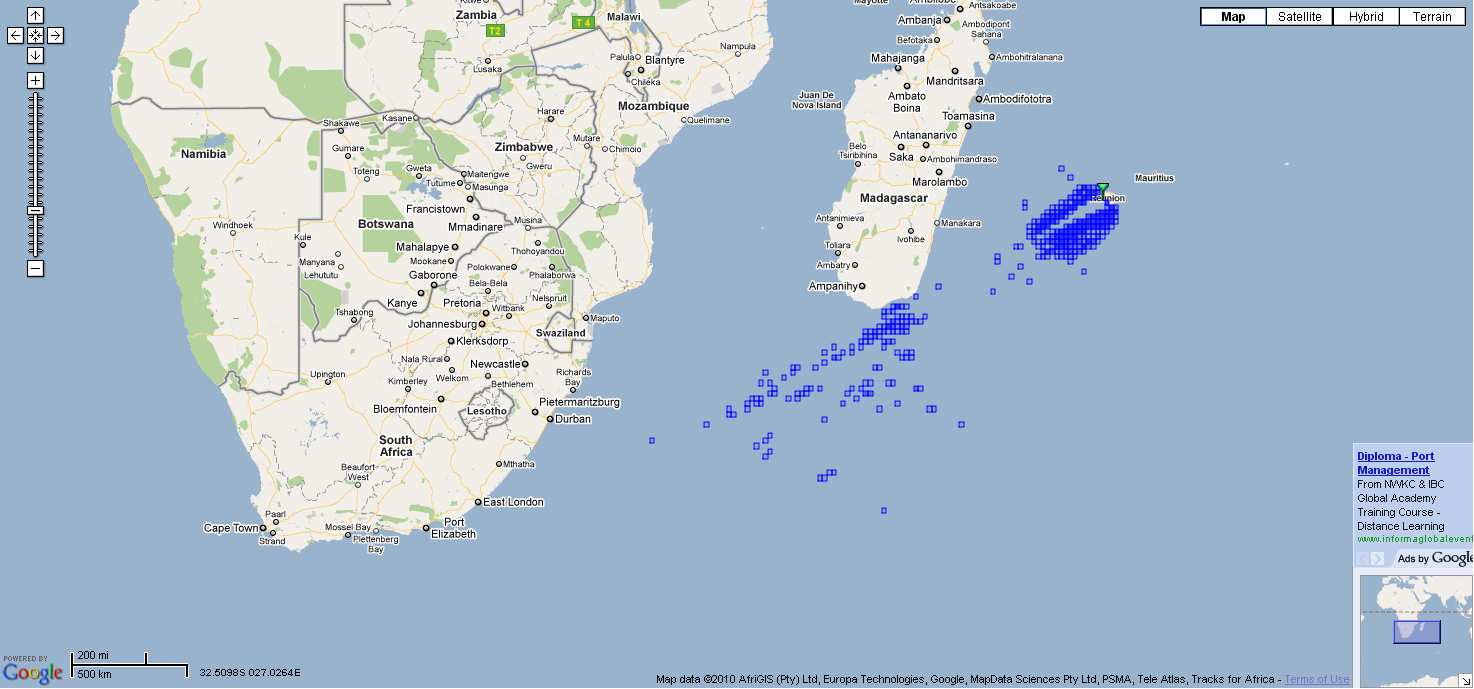

AIS-FR-COVERAGE-2010-09-12to13-0430z	AIS-FR-COVERAGE-2010-09-12to13-0902z

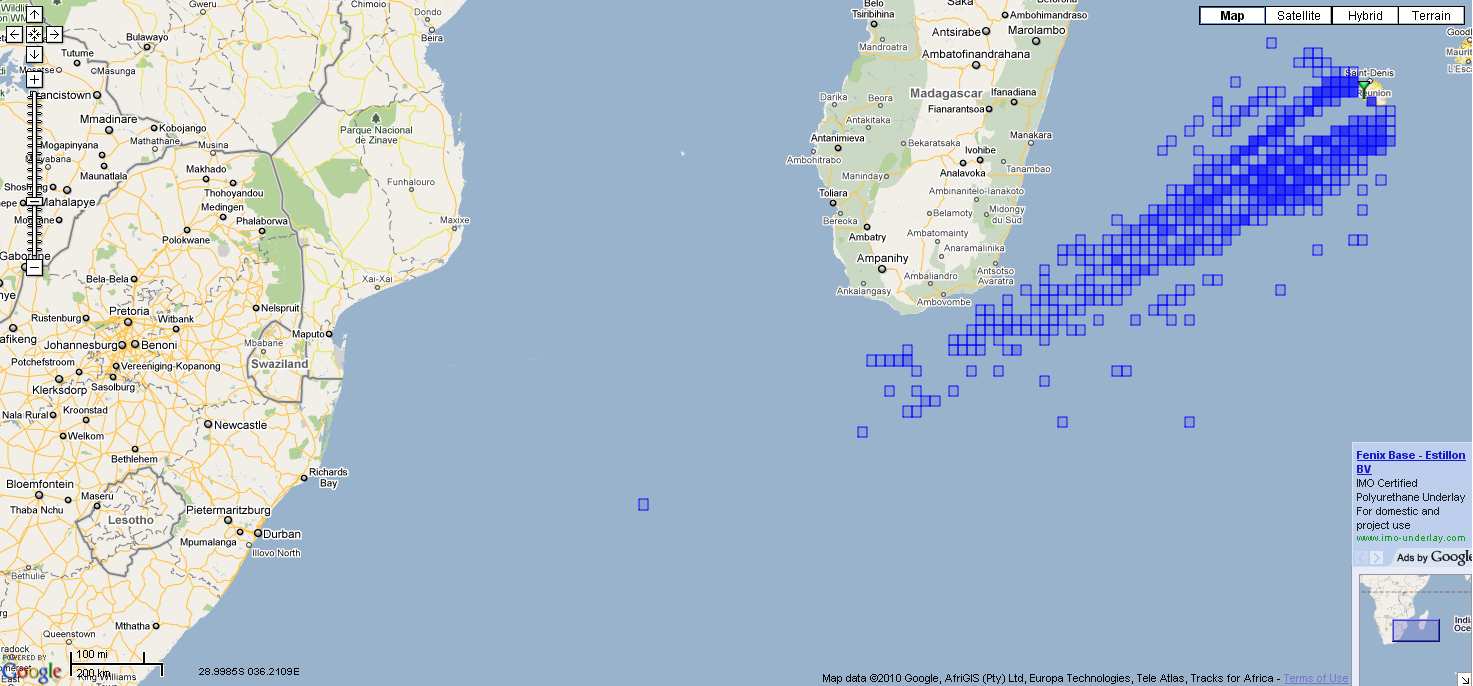

ais-fr-coverage-2010-09-12to13-17z	AIS-FR-COVERAGE-2010-09-13to14-09z

ais-fr-coverage-2010-09-14to15-08z	ais-fr-coverage-2010-09-14to15-14z

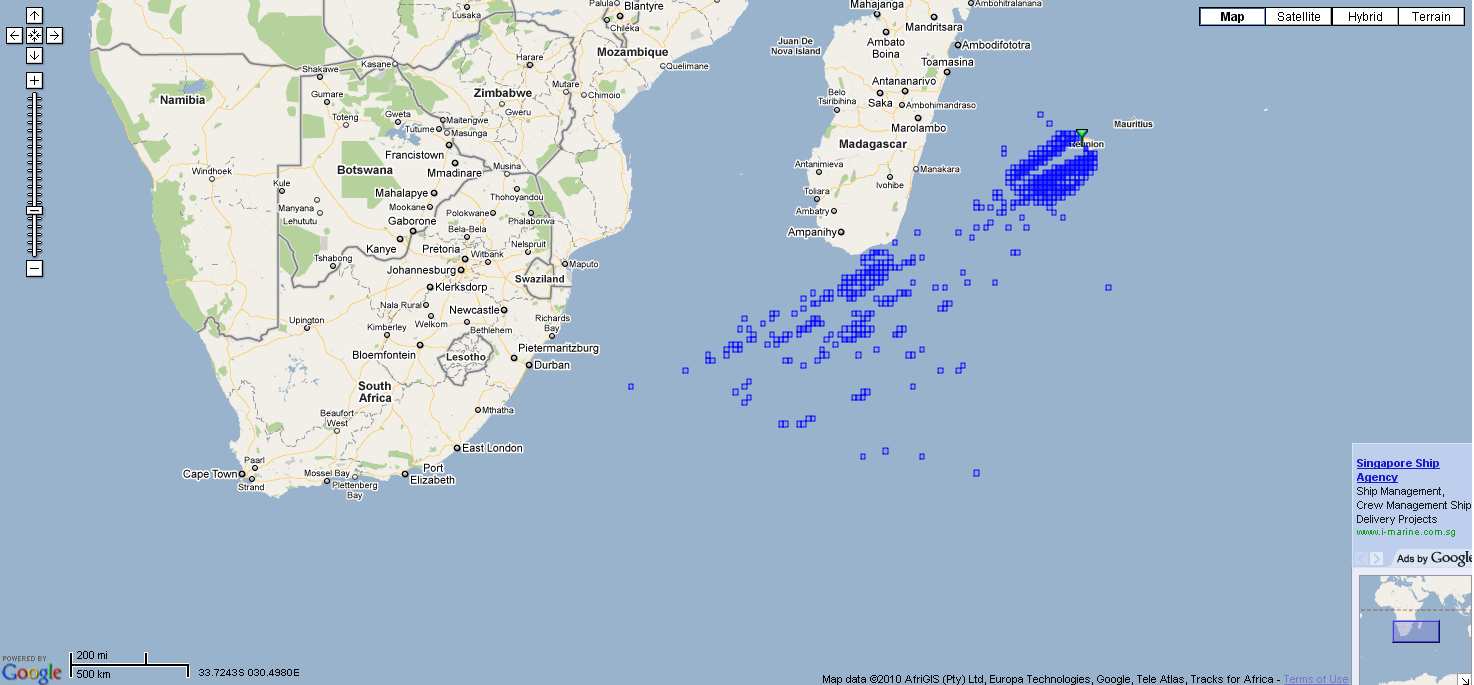

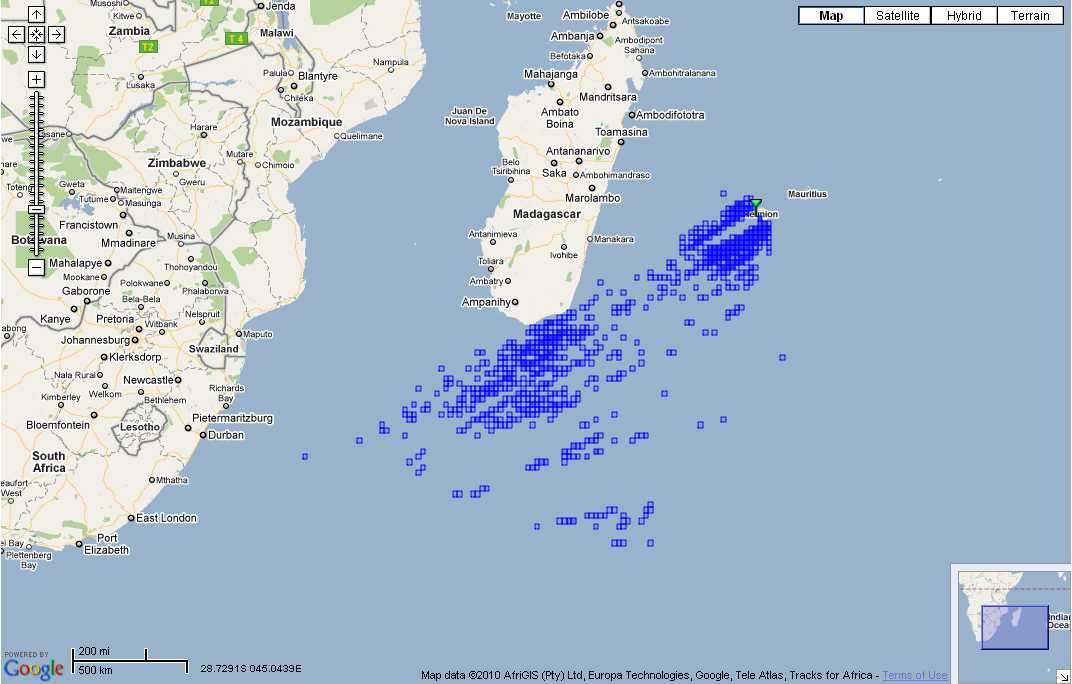

ais-fr-coverage-2010-09-14to15-17z	AIS-FR-COVERAGE-2010-09-15to16-06z

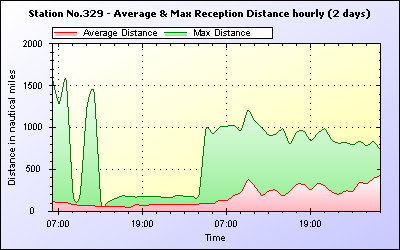

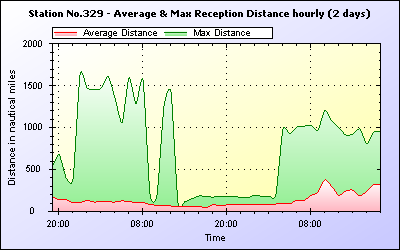

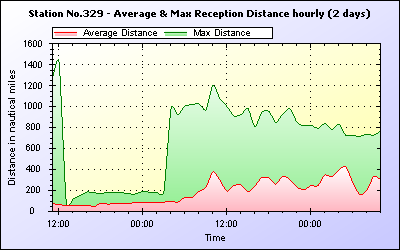

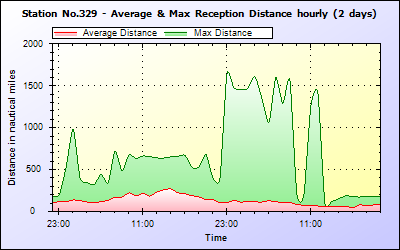

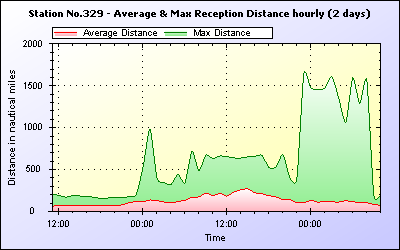

graphstation2-2010-09-12to14	graphstation-fr-2010-09-12to14

graphstation-fr-2010-09-13-15	graphstation-FR-2010-09-14to16-06z
	South-5R8-2010-09-13-00z
graphstation-FR-2010-09-14to16-11z	graphstation-2010-09-14to16-19z

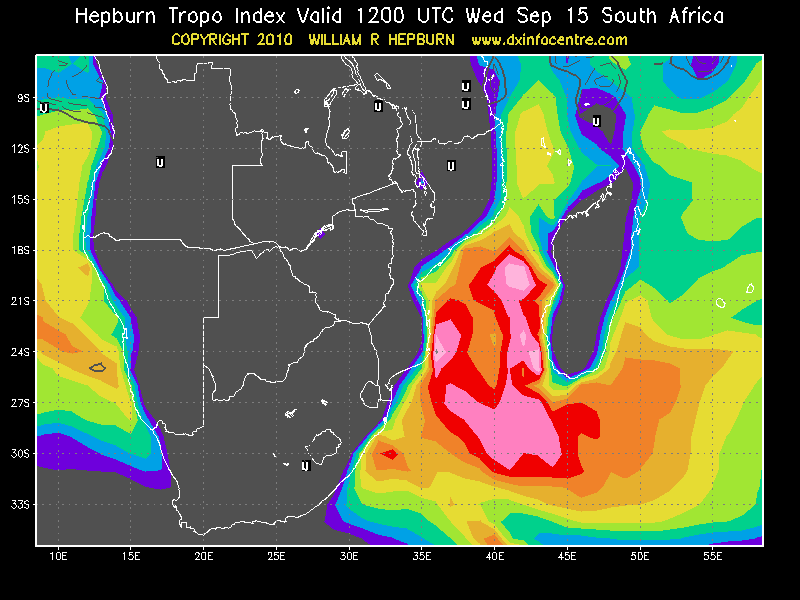

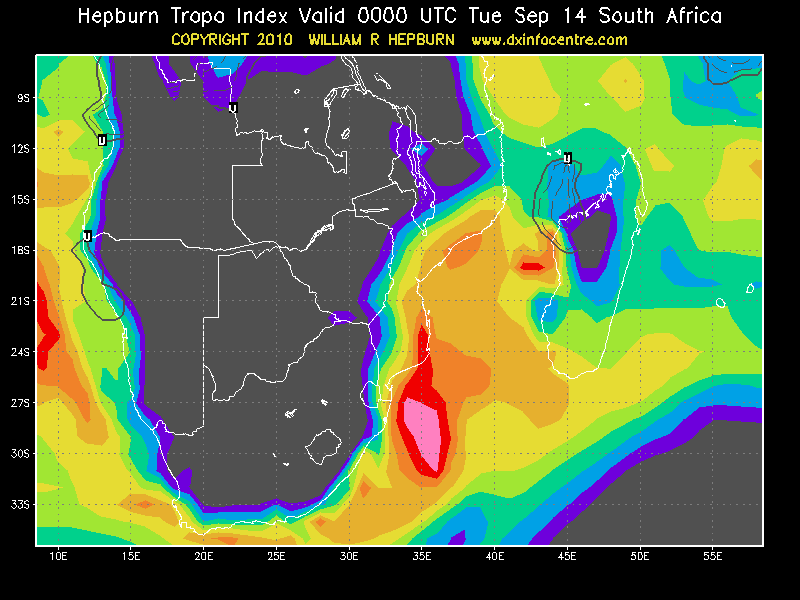

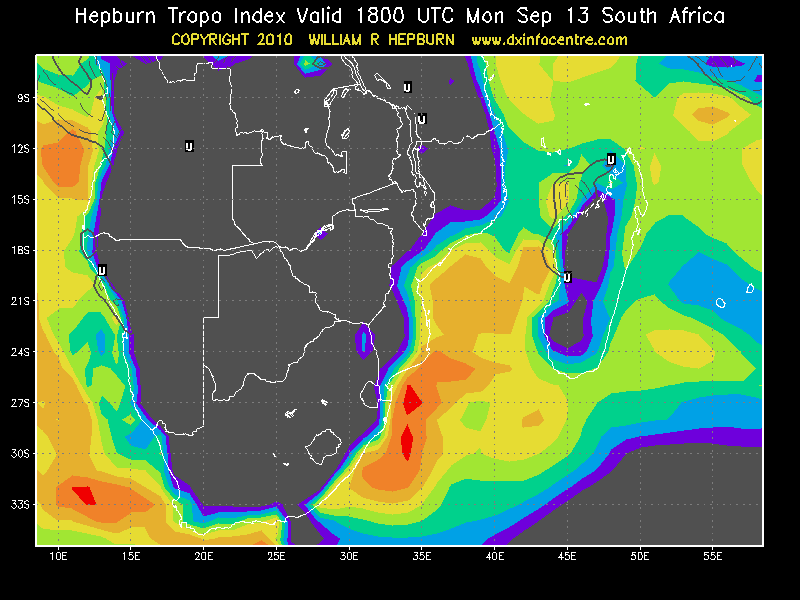

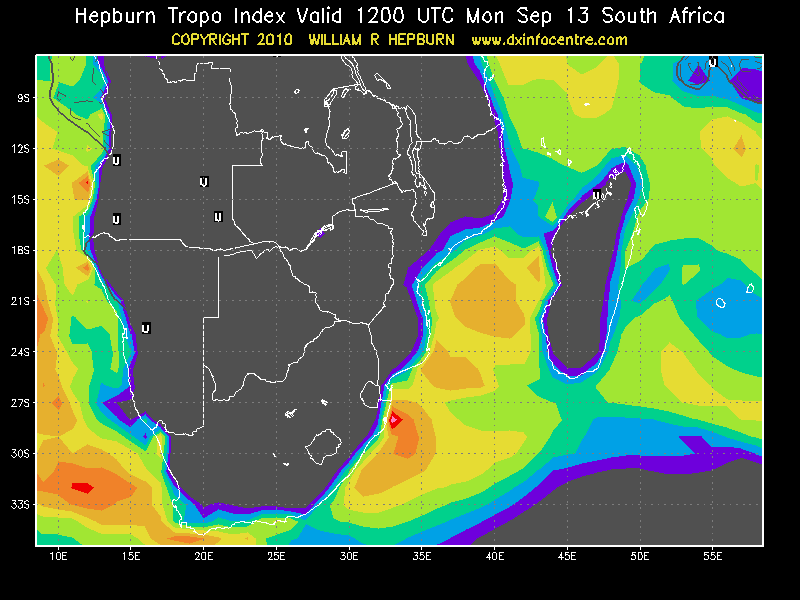

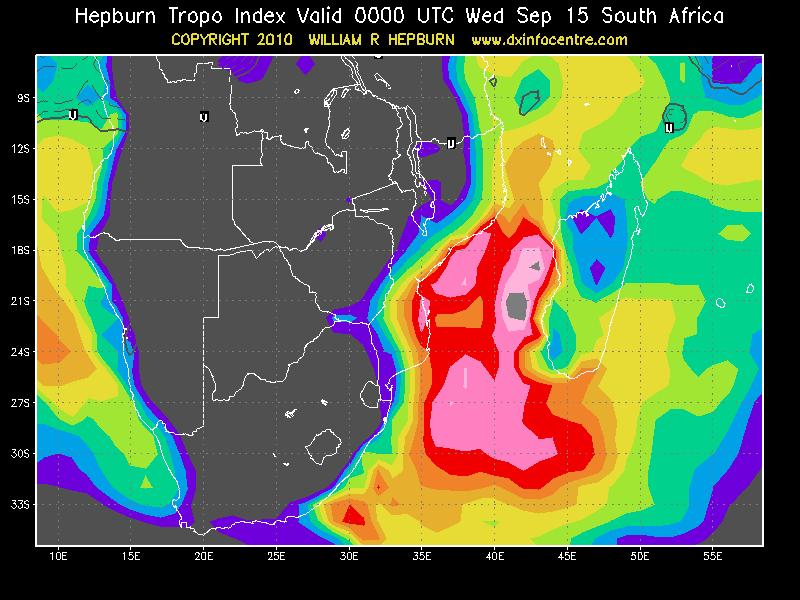

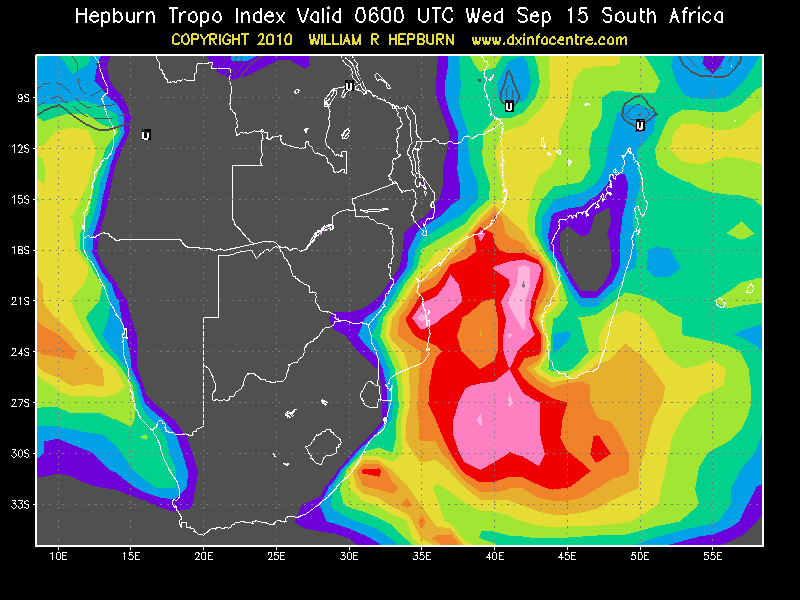

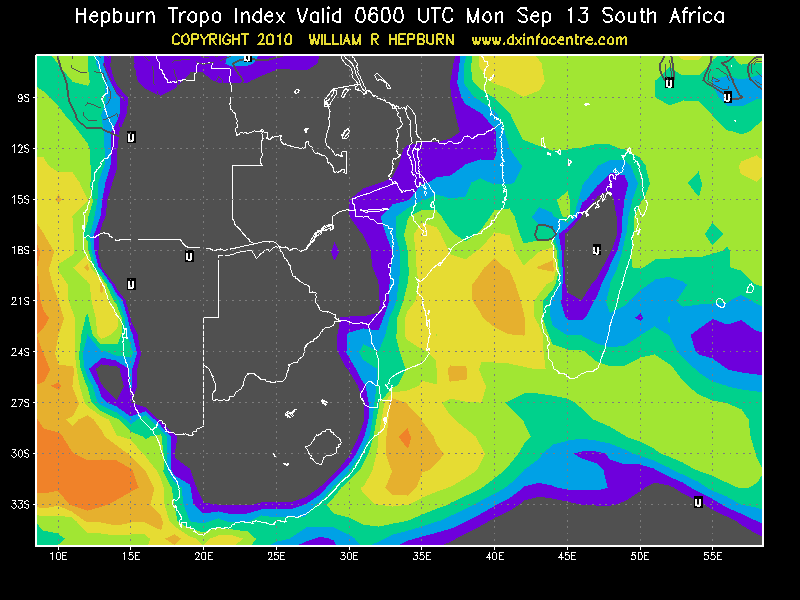

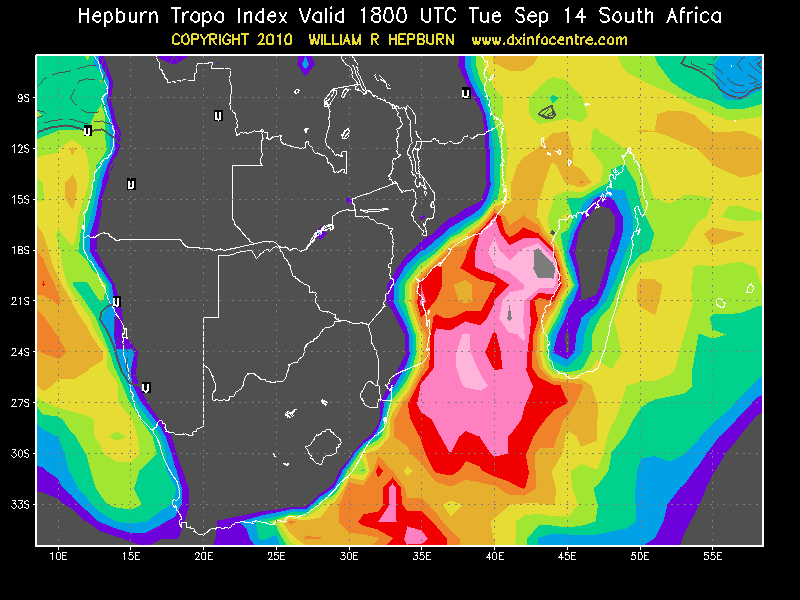

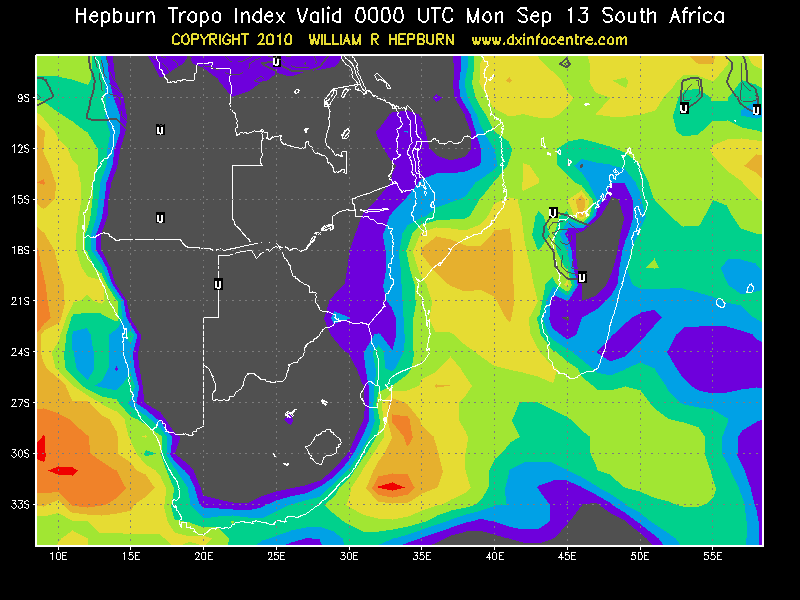

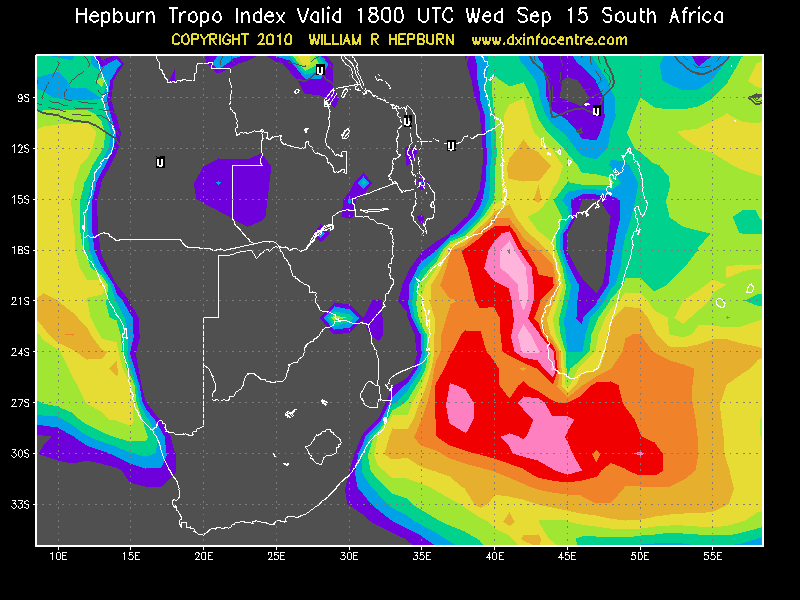

2-The Hepburn predictions

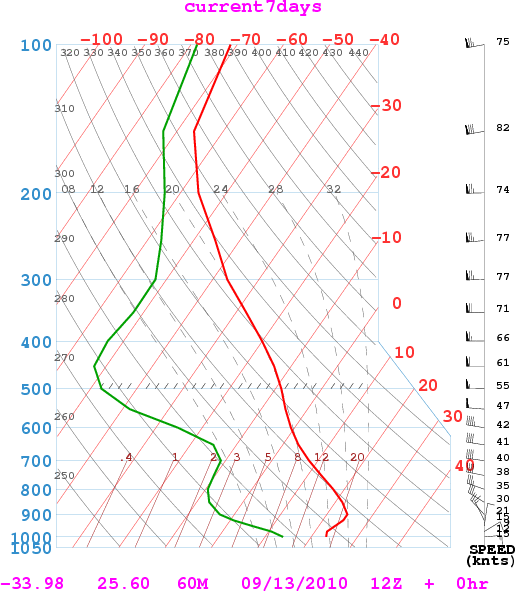

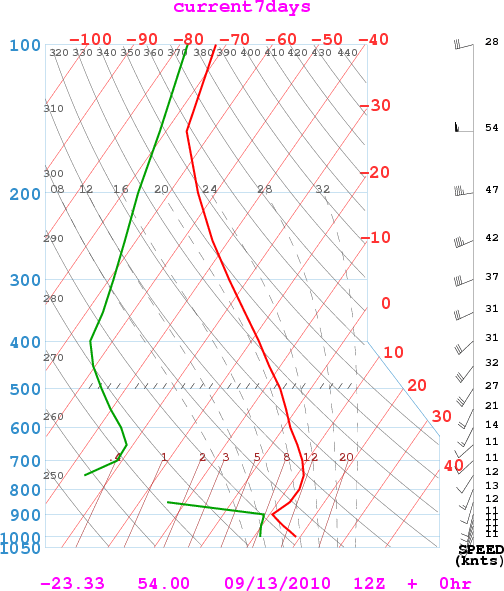

3-The radiosounding data (PREDICTED DATA from NOAA Air Resources Laboratory)

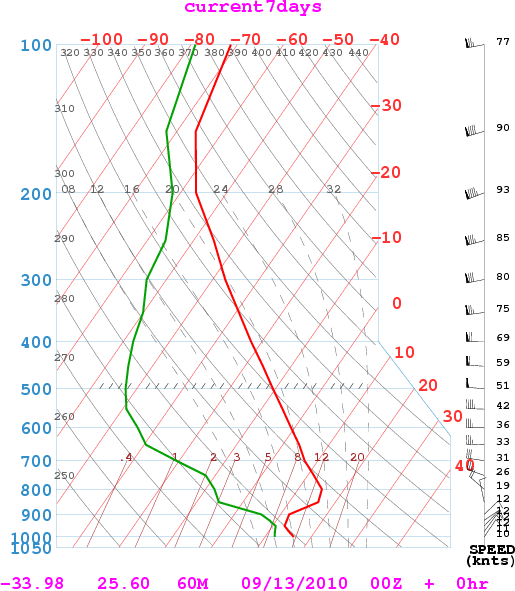

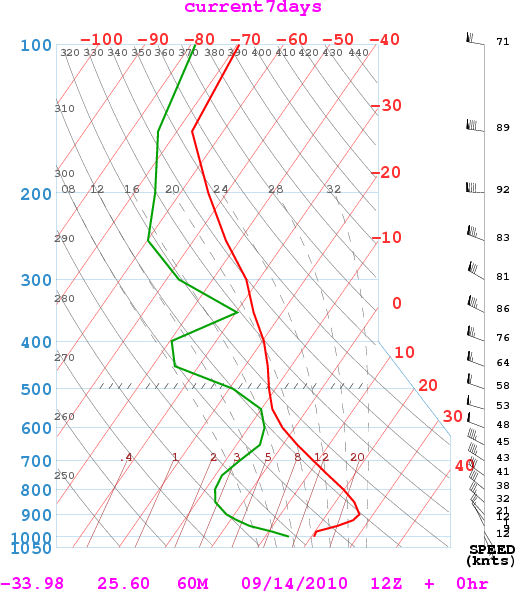

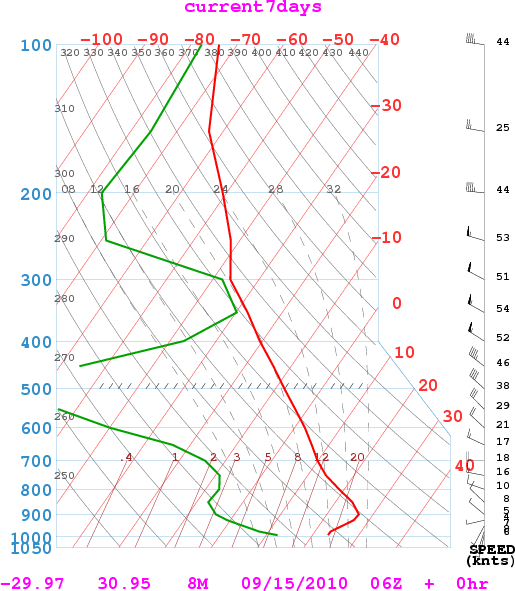

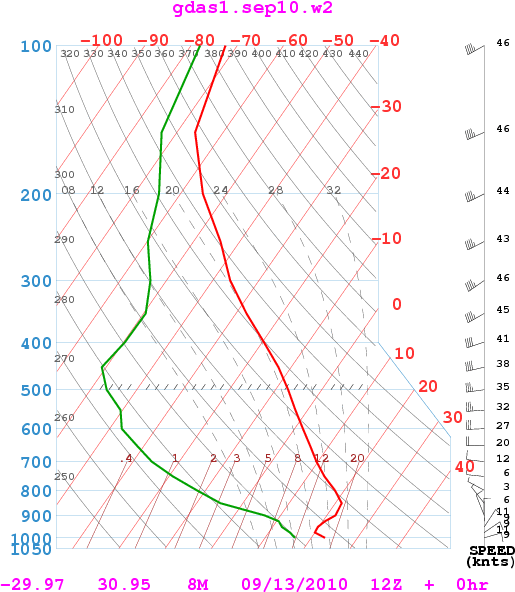

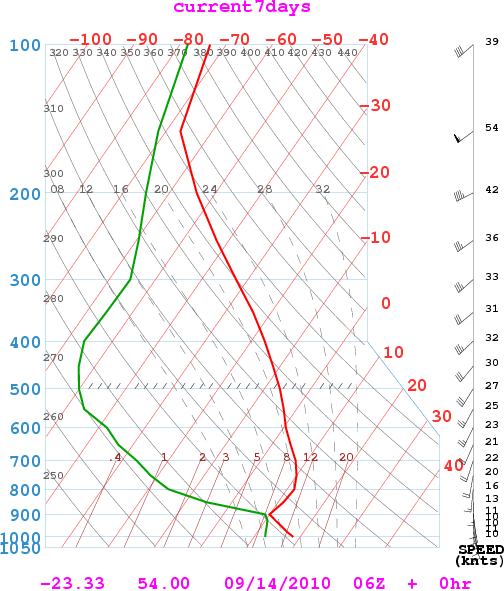

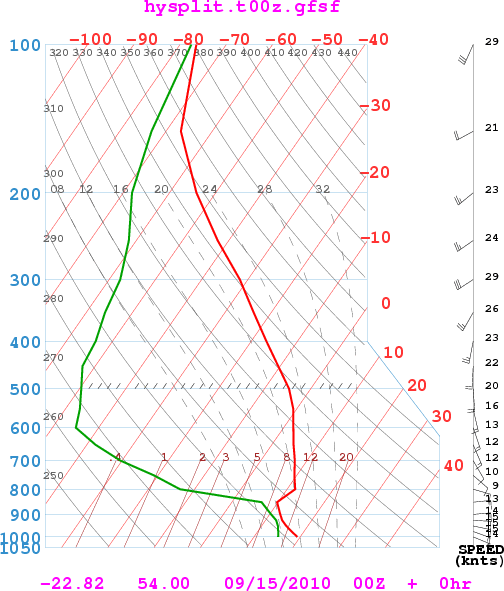

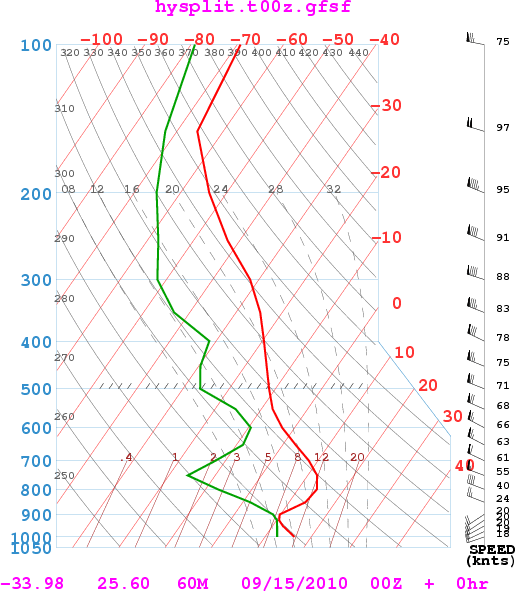

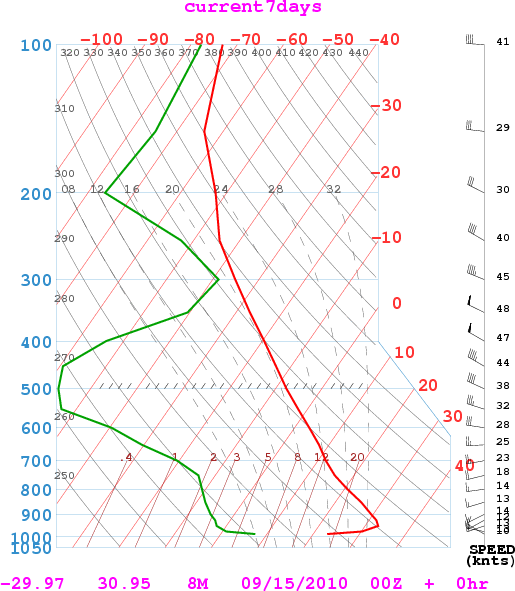

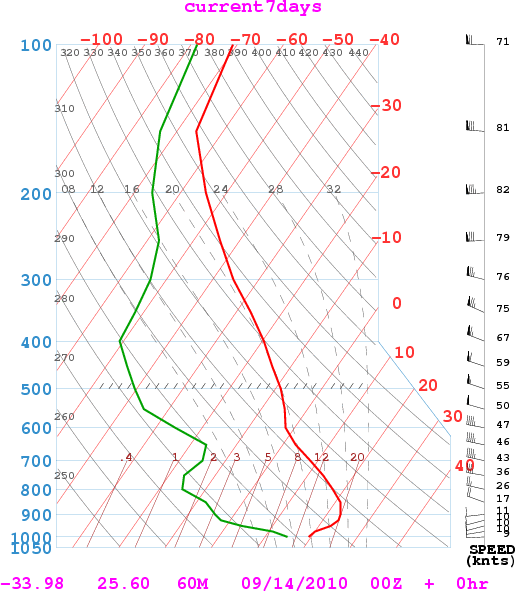

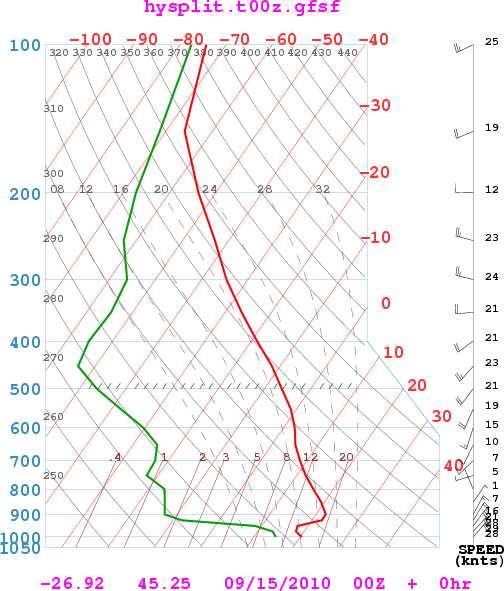

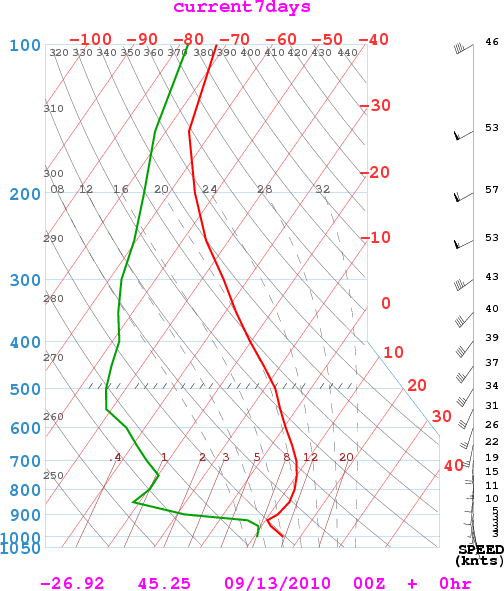

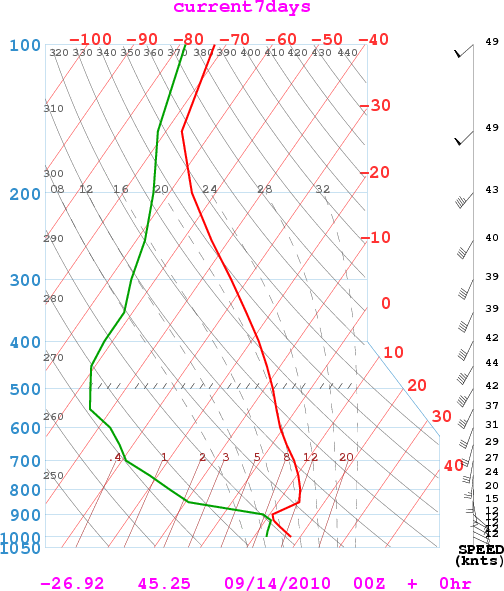

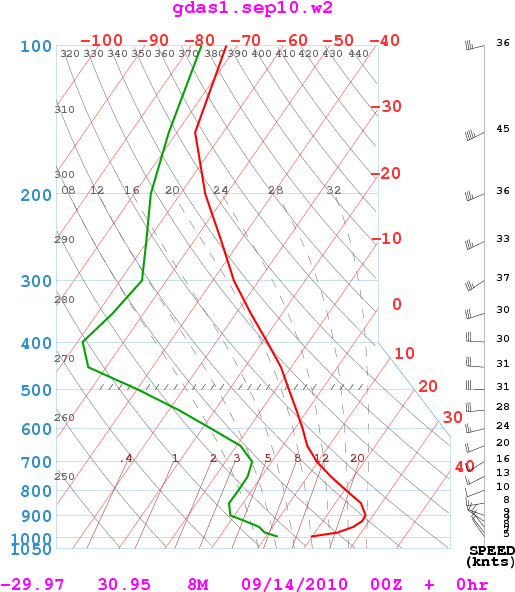

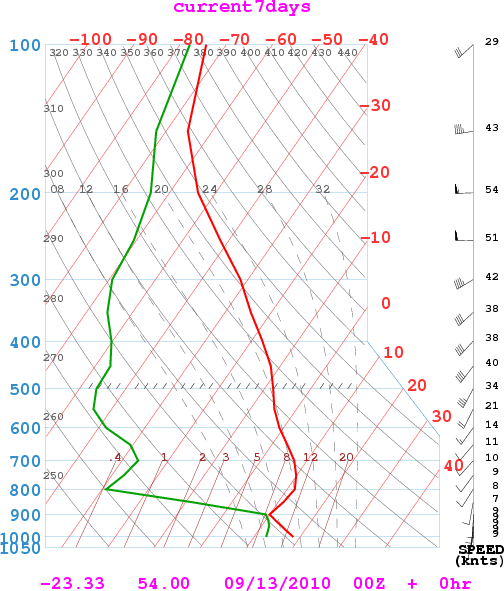

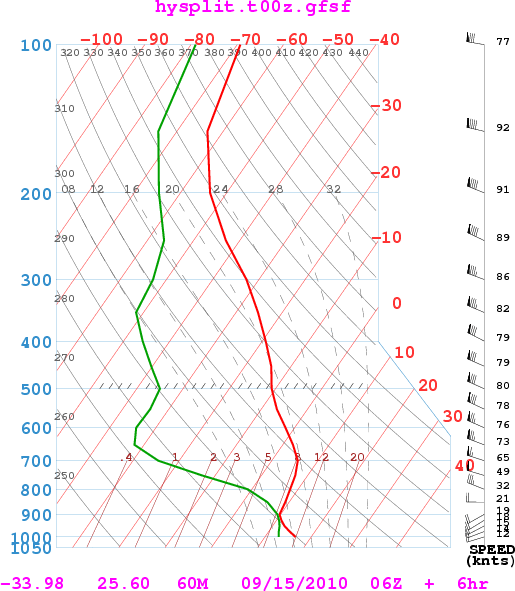

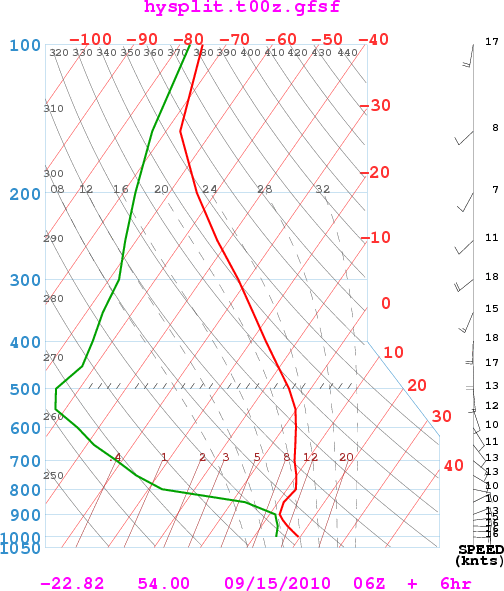

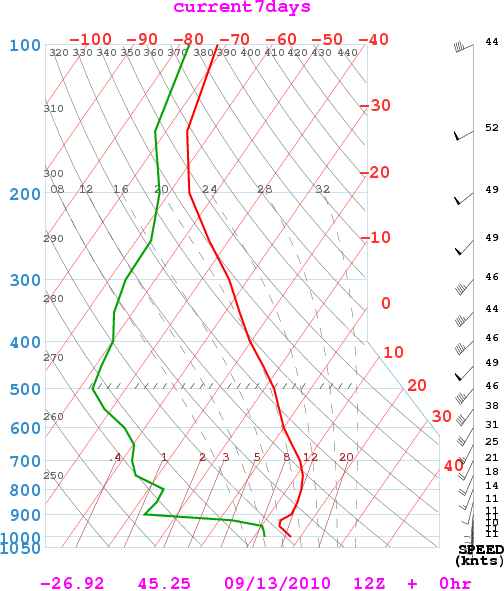

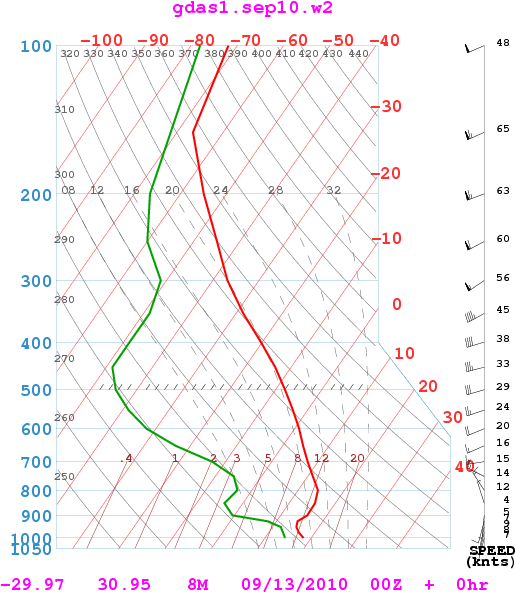

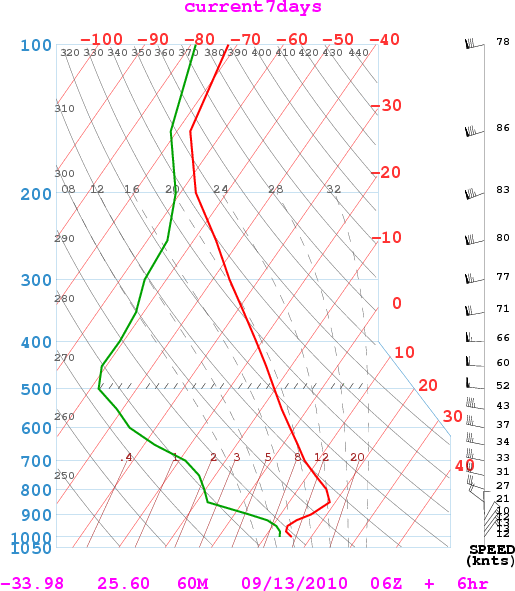

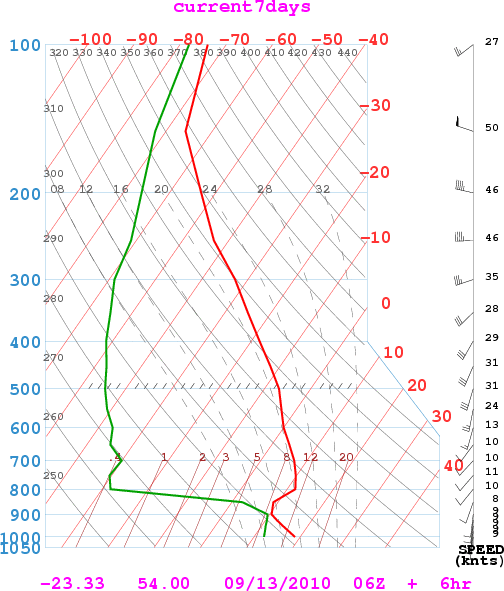

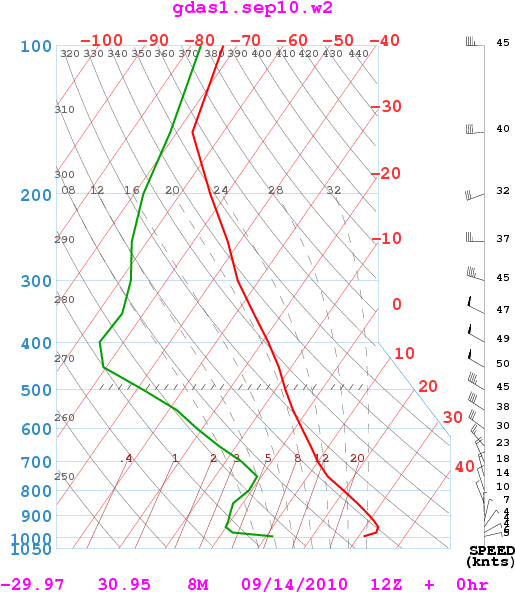

sounding-PE-2010-09-13-00z.gif	sounding-Durban-2010-09-13-00z.gif	sounding-5R8-2010-09-13-00z.gif	sounding-FR-2010-09-13-00z.gif

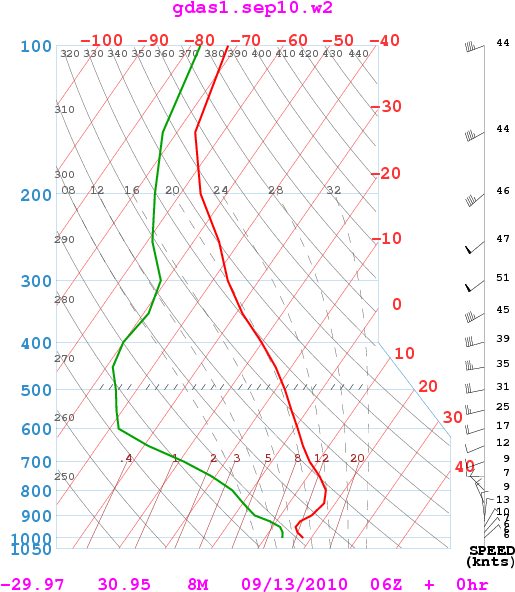

sounding-PE-2010-09-13-06z.gif	sounding-Durban-2010-09-13-06z.gif	sounding-5R8-2010-09-13-06z.gif	sounding-FR-2010-09-13-06z.gif

sounding-PE-2010-09-13-12z.gif	sounding-Durban-2010-09-13-12z.gif	sounding-5R8-2010-09-13-12z.gif	sounding-FR-2010-09-13-12z.gif

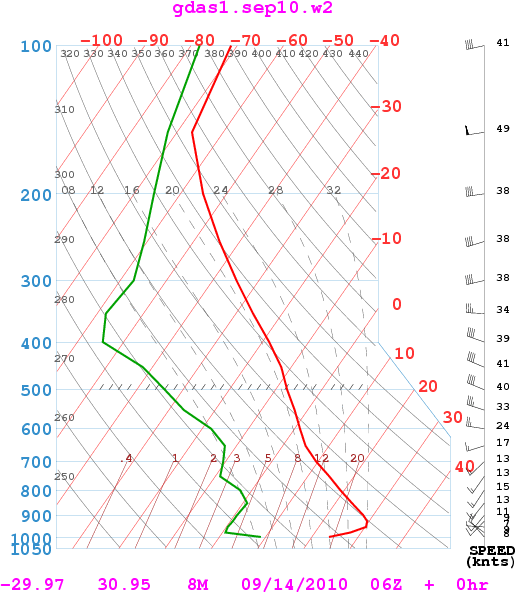

sounding-PE-2010-09-14-00z.gif	sounding-Durban-2010-09-14-00z.gif	sounding-5R8-2010-09-14-00z.gif	sounding-FR-2010-09-14-00z.gif

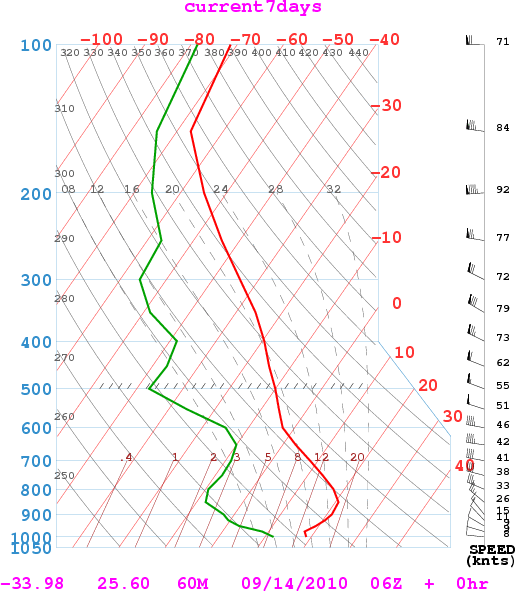

sounding-PE-2010-09-14-06z.gif	sounding-Durban-2010-09-14-06z.gif	sounding-5R8-2010-09-14-06z.gif	sounding-FR-2010-09-14-06z.gif

sounding-PE-2010-09-14-12z.gif	sounding-Durban-2010-09-14-12z.gif	sounding-5R8-2010-09-14-12z.gif	sounding-FR-2010-09-14-12z.gif

sounding-PE-2010-09-15-00z.gif	sounding-Durban-2010-09-15-00z.gif	sounding-5R8-2010-09-15-00z.gif	sounding-FR-2010-09-15-00z.gif

sounding-PE-2010-09-15-06z.gif	sounding-Durban-2010-09-15-06z.gif	sounding-5R8-2010-09-15-06z.gif	sounding-FR-2010-09-15-06z.gif

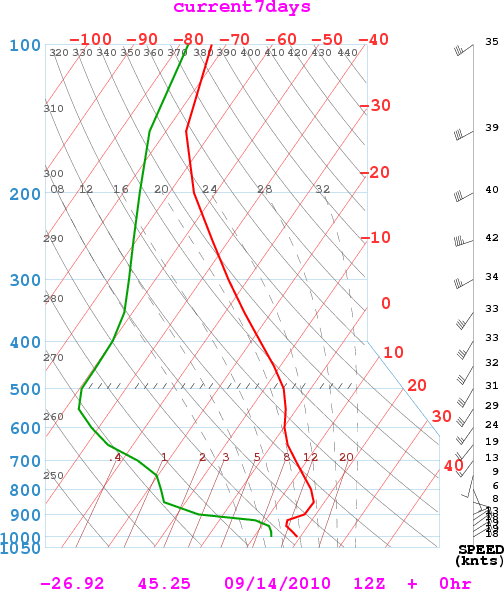

4-The predicted data from NOAA Air Resources Laboratory - GDAS1 Profile

PORT_ELIZABETH-2010-09-13-00z	Durban-2010-09-13-00z	South-5R8-2010-09-13-00z	FR-2010-09-13-00z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 389. 0.001 0.2 608. 0.002 0.4 832. 0.008 1.8 1061. 0.008 1.9 1543. 0.020 9.5 ** 2057. 0.008 4.1 2599. 0.003 1.6 3170. 0.003 1.5 3774. 0.004 2.6 4417. 0.003 2.2 5106. 0.004 2.4 5845. 0.003 2.5 6647. 0.004 2.8 7522. 0.003 2.7 8489. 0.004 3.4 9570. 0.003 3.6 10808. 0.004 5.4 12259. 0.003 4.8 14038. 0.008 13.4 16450. 0.014 33.3 20567. 0.023 95.9 26220. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 417. 0.001 0.3 638. 0.004 0.8 864. 0.007 1.6 1095. 0.015 3.6 ** 1580. 0.010 4.7 2093. 0.008 3.9 2634. 0.004 2.3 3206. 0.004 2.4 3811. 0.005 2.9 4458. 0.005 3.3 5151. 0.004 3.1 5898. 0.004 3.0 6708. 0.004 3.0 7592. 0.002 2.2 8564. 0.002 1.9 9648. 0.003 3.0 10888. 0.005 5.8 12345. 0.004 6.4 14131. 0.005 9.7 16538. 0.014 33.3 20642. 0.024 98.2 26340. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 403. 0.000 0.0 621. -.001 -0.1 844. 0.003 0.6 1073. 0.016 3.7 ** 1551. 0.012 5.5 2058. 0.009 4.4 2594. 0.007 3.9 3164. 0.006 3.6 3770. 0.005 2.9 4416. 0.004 2.7 5108. 0.005 3.2 5854. 0.005 3.8 6664. 0.003 2.5 7548. 0.003 2.3 8522. 0.003 3.0 9612. 0.004 4.1 10856. 0.003 3.6 12314. 0.005 7.1 14107. 0.006 11.6 16525. 0.013 30.3 20662. 0.024 99.4 26419. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 385. 0.000 0.0 605. 0.000 0.0 830. 0.000 0.0 1059. 0.001 0.1 1533. 0.013 6.0 ** 2041. 0.011 5.8 2577. 0.007 3.7 3146. 0.006 3.2 3751. 0.004 2.3 4393. 0.004 2.2 5082. 0.005 3.3 5825. 0.006 4.7 6637. 0.006 5.0 7528. 0.004 3.9 8514. 0.004 3.8 9620. 0.004 4.9 10882. 0.002 3.1 12352. 0.002 3.6 14148. 0.006 10.1 16546. 0.011 26.4 20682. 0.026 26453. 0.032 **
PORT_ELIZABETH-2010-09-13-06z	Durban-2010-09-13-06z	South-5R8-2010-09-13-06z	FR-2010-09-13-06z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 367. 0.000 0.0 587. 0.007 1.6 812. 0.015 3.3 ** 1044. 0.020 4.7 1533. 0.015 7.2 2049. 0.005 2.5 2592. 0.002 0.9 3164. 0.002 1.1 3767. 0.004 2.3 4410. 0.004 2.3 5097. 0.004 2.5 5838. 0.004 3.1 6640. 0.004 3.4 7519. 0.004 3.3 8490. 0.003 3.4 9575. 0.003 3.5 10818. 0.004 4.8 12269. 0.003 4.0 14043. 0.006 11.4 16448. 0.014 34.3 20566. 0.024 97.8 26216. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 411. 0.000 0.1 632. 0.004 0.9 858. 0.011 2.4 ** 1091. 0.017 3.9 1578. 0.012 5.8 2094. 0.007 3.6 2638. 0.004 2.0 3211. 0.002 1.3 3818. 0.004 2.3 4464. 0.005 3.0 5156. 0.004 3.0 5902. 0.005 3.4 6712. 0.004 3.1 7596. 0.002 2.2 8568. 0.002 1.5 9652. 0.003 3.4 10894. 0.005 6.3 12351. 0.003 4.7 14133. 0.007 11.6 16539. 0.013 32.3 20648. 0.023 95.7 26326. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 416. 0.000 0.1 636. 0.000 0.1 858. 0.009 2.0 1089. 0.020 4.6 ** 1569. 0.008 3.6 2076. 0.007 3.6 2613. 0.007 3.7 3182. 0.006 3.5 3788. 0.005 3.2 4433. 0.004 2.3 5124. 0.004 2.9 5870. 0.006 4.5 6681. 0.004 3.1 7565. 0.002 2.0 8539. 0.003 2.5 9628. 0.003 3.7 10871. 0.003 4.2 12326. 0.004 5.7 14114. 0.007 13.1 16536. 0.013 32.7 20670. 0.023 96.6 26413. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 402. 0.000 0.0 622. 0.000 0.0 847. 0.000 0.0 1076. 0.001 0.2 1551. 0.007 3.3 ** 2057. 0.016 8.1 2594. 0.007 3.5 3163. 0.006 3.3 3768. 0.005 2.8 4413. 0.004 2.8 5104. 0.006 4.1 5852. 0.006 4.5 6666. 0.004 3.3 7555. 0.004 3.3 8538. 0.004 3.7 9640. 0.004 4.2 10894. 0.002 2.6 12361. 0.005 6.8 14161. 0.005 8.1 16559. 0.012 27.9 20695. 0.027 26462. 0.031 **
PORT_ELIZABETH-2010-09-13-12z	Durban-2010-09-13-12z	South-5R8-2010-09-13-12z	FR-2010-09-13-12z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 322. 0.007 1.5 547. 0.014 3.1 ** 780. 0.014 3.3 1019. 0.010 2.4 1516. 0.004 2.0 2036. 0.002 1.2 2580. 0.001 0.7 3155. 0.001 0.8 3761. 0.002 1.4 4404. 0.004 2.4 5092. 0.005 3.2 5836. 0.005 4.0 6644. 0.005 3.6 7528. 0.003 2.9 8501. 0.002 2.4 9588. 0.002 2.2 10827. 0.004 5.3 12279. 0.004 5.1 14061. 0.007 11.9 16469. 0.014 33.8 20591. 0.023 96.0 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 368. -.004 -0.9 593. 0.009 2.0 822. 0.013 3.0 ** 1058. 0.016 3.8 1553. 0.009 4.5 2074. 0.003 1.7 2621. 0.002 1.1 3196. 0.003 1.8 3806. 0.004 2.4 4455. 0.004 2.5 5149. 0.004 2.8 5898. 0.004 3.2 6710. 0.004 3.0 7596. 0.002 2.2 8571. 0.002 2.0 9659. 0.003 3.0 10903. 0.005 6.0 12362. 0.003 5.0 14147. 0.006 10.8 16548. 0.013 31.2 20654. 0.023 96.0 26339. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 402. 0.000 0.0 623. 0.000 0.1 848. 0.007 1.6 1078. 0.017 3.8 ** 1559. 0.009 4.4 2069. 0.008 4.1 2608. 0.007 3.8 3181. 0.005 3.0 3788. 0.003 2.0 4433. 0.003 2.2 5124. 0.005 3.5 5869. 0.005 3.8 6679. 0.003 2.7 7562. 0.003 2.4 8537. 0.004 4.0 9633. 0.004 4.8 10882. 0.002 2.9 12339. 0.003 4.3 14125. 0.007 12.8 16540. 0.013 31.5 20667. 0.024 98.3 26423. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 388. 0.000 0.0 609. -.001 -0.1 834. 0.000 0.1 1064. 0.001 0.2 1539. 0.014 6.8 ** 2047. 0.011 5.4 2586. 0.008 4.4 3159. 0.006 3.4 3767. 0.005 2.8 4416. 0.004 2.6 5111. 0.005 3.6 5861. 0.005 3.6 6674. 0.003 2.7 7563. 0.004 3.4 8544. 0.003 3.0 9642. 0.003 3.2 10892. 0.003 4.0 12358. 0.004 6.2 14154. 0.005 9.6 16561. 0.013 30.9 20696. 0.025 26459. 0.032 **
PORT_ELIZABETH-2010-09-14-00z	Durban-2010-09-14-00z	South-5R8-2010-09-14-00z.	FR-2010-09-14-00z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 308. 0.012 2.7 ** 532. 0.021 4.8 765. 0.014 3.2 1002. 0.008 1.9 1499. 0.006 3.1 2019. 0.003 1.5 2564. 0.002 1.3 3139. 0.001 0.7 3742. 0.001 0.4 4384. 0.003 1.7 5070. 0.006 4.4 5813. 0.005 4.0 6621. 0.004 3.2 7504. 0.004 3.9 8481. 0.003 3.2 9573. 0.002 2.6 10815. 0.004 4.9 12277. 0.004 6.2 14069. 0.006 10.2 16485. 0.014 33.9 20611. 0.024 97.1 26299. 0.030 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 321. 0.036 6.8 ** 548. 0.021 4.8 786. 0.014 3.4 1029. 0.009 2.3 1531. 0.004 2.2 2059. 0.000 -0.1 2607. 0.000 0.0 3186. 0.001 0.4 3797. 0.003 1.7 4446. 0.005 3.2 5142. 0.004 3.1 5890. 0.004 3.2 6703. 0.004 3.5 7592. 0.003 2.4 8570. 0.002 2.3 9662. 0.003 2.8 10906. 0.004 5.3 12368. 0.004 5.5 14158. 0.006 10.0 16564. 0.013 31.6 20668. 0.024 26370. 0.031 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 406. 0.000 0.0 626. 0.000 0.0 853. 0.001 0.1 1080. 0.005 1.2 1561. 0.019 9.0 ** 2070. 0.007 3.4 2610. 0.006 3.0 3178. 0.005 2.7 3783. 0.004 2.1 4426. 0.004 2.6 5115. 0.005 3.6 5860. 0.006 4.1 6670. 0.005 4.0 7558. 0.004 4.0 8540. 0.004 3.5 9639. 0.003 3.5 10891. 0.002 3.1 12352. 0.003 4.3 14135. 0.006 9.9 16536. 0.013 32.2 20664. 0.025 26410. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 391. 0.000 0.0 614. 0.000 0.0 837. 0.000 0.1 1067. 0.002 0.4 1543. 0.014 6.5 ** 2047. 0.010 4.9 2586. 0.009 4.7 3157. 0.006 3.5 3763. 0.004 2.4 4409. 0.004 2.5 5101. 0.006 3.9 5848. 0.006 4.3 6662. 0.004 3.3 7552. 0.005 4.1 8539. 0.004 4.0 9643. 0.003 2.8 10897. 0.002 2.9 12361. 0.003 4.3 14146. 0.005 8.0 16543. 0.014 33.1 20689. 0.025 26446. 0.032 **
PORT_ELIZABETH-2010-09-14-06z	Durban-2010-09-14-06z	South-5R8-2010-09-14-06z.	FR-2010-09-14-06z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 301. 0.004 1.0 524. 0.017 3.8 ** 753. 0.015 3.4 992. 0.013 3.0 1483. 0.009 4.6 2003. 0.004 2.2 2550. 0.002 1.0 3123. 0.001 0.7 3730. 0.001 0.4 4370. 0.002 1.0 5054. 0.005 3.6 5796. 0.005 4.1 6600. 0.005 3.9 7482. 0.005 4.8 8461. 0.005 4.5 9559. 0.003 3.3 10810. 0.003 3.5 12270. 0.003 5.0 14056. 0.005 8.8 16470. 0.015 35.0 20608. 0.023 94.0 26265. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 324. 0.030 5.7 ** 554. 0.021 4.8 792. 0.007 1.7 1034. 0.003 0.7 1535. 0.001 0.6 2059. 0.001 0.7 2611. 0.002 1.0 3187. 0.001 0.6 3795. 0.002 1.4 4444. 0.004 2.9 5139. 0.005 3.3 5885. 0.004 3.1 6699. 0.005 4.1 7587. 0.003 2.9 8567. 0.002 2.4 9662. 0.003 3.0 10908. 0.003 3.8 12366. 0.004 5.4 14151. 0.005 9.6 16559. 0.014 34.7 20670. 0.022 92.5 26334. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 411. -.001 -0.2 632. 0.001 0.1 856. 0.001 0.2 1086. 0.014 3.2 ** 1572. 0.017 8.4 2081. 0.005 2.5 2622. 0.005 2.8 3193. 0.004 2.3 3797. 0.003 2.0 4442. 0.005 3.0 5133. 0.006 4.3 5881. 0.006 4.5 6697. 0.005 3.8 7586. 0.003 2.7 8569. 0.002 2.4 9665. 0.004 3.9 10918. 0.003 3.4 12377. 0.002 3.6 14159. 0.006 10.9 16563. 0.014 32.9 20682. 0.024 99.6 26421. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 408. 0.000 -0.1 627. 0.000 0.0 853. 0.000 0.1 1083. 0.001 0.2 1560. 0.013 6.2 ** 2064. 0.010 5.1 2603. 0.008 4.2 3172. 0.006 3.5 3780. 0.005 2.9 4427. 0.005 3.5 5122. 0.006 4.3 5873. 0.005 3.7 6689. 0.004 3.2 7582. 0.005 4.1 8571. 0.004 3.7 9676. 0.002 2.7 10932. 0.003 3.4 12401. 0.003 4.5 14191. 0.004 7.8 16584. 0.012 28.2 20713. 0.027 26474. 0.032 **
PORT_ELIZABETH-2010-09-14-12z	Durban-2010-09-14-12z	South-5R8-2010-09-14-12z	FR-2010-09-14-12z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 258. 0.008 1.7 485. 0.026 6.0 ** 719. 0.020 4.7 960. 0.012 2.8 1463. 0.004 2.0 1988. 0.001 0.7 2535. 0.001 0.3 3111. 0.000 0.1 3720. 0.001 0.4 4362. 0.000 0.3 5044. 0.003 2.0 5781. 0.005 3.8 6581. 0.006 4.5 7461. 0.005 4.5 8436. 0.004 4.1 9529. 0.005 5.3 10784. 0.004 5.0 12251. 0.003 5.1 14043. 0.004 8.0 16454. 0.015 36.6 20607. 0.022 92.7 26291. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 298. 0.023 3.7 ** 530. 0.008 1.9 769. 0.003 0.6 1012. 0.002 0.4 1516. 0.001 0.5 2041. 0.000 0.1 2592. 0.000 -0.1 3170. 0.002 1.4 3777. 0.004 2.2 4429. 0.003 2.2 5123. 0.003 2.4 5870. 0.004 3.1 6680. 0.005 3.8 7568. 0.004 3.3 8548. 0.003 2.8 9644. 0.003 3.1 10897. 0.005 6.1 12367. 0.004 5.2 14159. 0.004 7.3 16551. 0.013 31.4 20661. 0.023 95.5 26360. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 391. -.001 -0.2 611. 0.002 0.3 837. 0.008 1.7 1069. 0.024 5.5 ** 1560. 0.009 4.5 2073. 0.006 2.8 2615. 0.003 1.6 3187. 0.003 1.7 3791. 0.003 2.0 4436. 0.005 3.5 5127. 0.007 4.7 5878. 0.006 4.8 6695. 0.004 3.3 7587. 0.003 2.5 8568. 0.002 2.4 9666. 0.003 3.3 10917. 0.003 4.2 12380. 0.003 4.8 14171. 0.006 10.5 16573. 0.012 29.0 20667. 0.025 26437. 0.034 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 394. 0.000 0.0 616. 0.000 0.0 840. 0.000 0.1 1071. 0.001 0.3 1548. 0.012 5.9 ** 2053. 0.010 5.2 2593. 0.007 3.8 3163. 0.006 3.7 3770. 0.005 3.1 4418. 0.006 3.9 5115. 0.007 4.7 5870. 0.005 3.7 6688. 0.004 3.2 7584. 0.003 3.1 8574. 0.004 3.9 9682. 0.003 3.2 10941. 0.002 2.7 12409. 0.003 3.8 14198. 0.005 8.4 16584. 0.011 26.8 20690. 0.026 26465. 0.033 **
PORT_ELIZABETH-2010-09-15-00z	Durban-2010-09-15-00z	South-5R8-2010-09-15-00z	FR-2010-09-15-00z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 288. 0.000 0.0 508. 0.001 0.3 732. 0.003 0.8 961. 0.013 3.0 ** 1444. 0.019 9.3 1955. 0.008 4.3 2499. 0.005 2.7 3070. 0.002 1.1 3674. 0.001 0.6 4314. 0.001 0.7 4995. 0.003 2.3 5729. 0.006 4.3 6528. 0.006 4.8 7409. 0.006 5.5 8388. 0.006 5.9 9491. 0.004 4.2 10747. 0.002 3.1 12216. 0.004 6.3 14017. 0.005 9.7 16450. 0.014 34.9 20615. 0.022 90.0 26278. 0.031 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 265. 0.063 8.2 ** 497. 0.021 5.0 737. 0.005 1.1 981. 0.002 0.4 1483. 0.002 0.9 2008. 0.000 0.2 2562. 0.001 0.6 3143. 0.003 1.6 3753. 0.004 2.4 4408. 0.003 1.9 5104. 0.003 1.9 5855. 0.003 2.1 6662. 0.003 2.8 7550. 0.003 2.9 8526. 0.003 2.8 9617. 0.003 3.5 10860. 0.003 4.2 12330. 0.007 9.7 14139. 0.005 9.8 16546. 0.011 26.6 20664. 0.023 96.2 26359. 0.033 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 369. 0.001 0.2 593. 0.008 1.9 823. 0.031 7.0 ** 1059. 0.008 1.9 1551. 0.004 2.1 2070. 0.003 1.5 2611. 0.003 1.8 3186. 0.004 2.2 3794. 0.005 2.8 4440. 0.005 3.3 5136. 0.005 3.6 5888. 0.004 3.3 6703. 0.004 3.3 7593. 0.003 2.6 8573. 0.003 2.7 9670. 0.003 3.3 10921. 0.003 4.1 12386. 0.004 6.6 14182. 0.005 8.7 16576. 0.011 26.9 20683. 0.026 26428. 0.032 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 404. 0.000 -0.1 624. 0.000 0.1 851. 0.001 0.3 1080. 0.004 0.9 1559. 0.004 1.8 2064. 0.015 7.8 ** 2600. 0.005 2.9 3170. 0.007 3.8 3774. 0.006 3.5 4423. 0.007 4.4 5120. 0.007 5.2 5875. 0.005 3.9 6696. 0.004 3.1 7592. 0.004 3.2 8583. 0.003 3.0 9690. 0.003 3.5 10949. 0.002 2.1 12415. 0.003 4.4 14206. 0.004 7.5 16579. 0.011 26.9 20697. 0.027 26458. 0.032 **
PORT_ELIZABETH-2010-09-15-06z	Durban-2010-09-15-06z	South-5R8-2010-09-15-06z	FR-2010-09-15-06z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 289. 0.000 0.0 509. 0.001 0.2 733. 0.003 0.7 961. 0.004 1.0 1437. 0.009 4.2 ** 1938. 0.008 4.2 2470. 0.009 4.5 3034. 0.007 4.2 3638. 0.005 2.7 4276. 0.004 2.4 4960. 0.003 2.4 5698. 0.005 3.6 6503. 0.007 5.4 7389. 0.005 4.6 8368. 0.005 4.8 9471. 0.004 4.5 10725. 0.002 2.8 12193. 0.004 5.7 13998. 0.007 12.9 16435. 0.013 32.9 20595. 0.021 89.0 26252. 0.031 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 285. 0.010 1.4 514. 0.017 3.9 ** 747. 0.017 4.0 988. 0.011 2.7 1488. 0.003 1.7 2010. 0.001 0.3 2558. 0.001 0.5 3137. 0.003 1.7 3744. 0.004 2.6 4396. 0.004 2.6 5092. 0.003 2.2 5839. 0.003 2.3 6648. 0.003 2.6 7528. 0.003 2.4 8503. 0.003 3.4 9593. 0.002 2.7 10841. 0.007 9.3 12324. 0.006 8.5 14145. 0.005 9.2 16552. 0.010 23.4 20676. 0.022 91.0 26328. 0.034 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 366. 0.004 0.9 591. 0.023 5.2 ** 823. 0.015 3.6 1062. 0.006 1.3 1554. 0.003 1.6 2072. 0.002 1.2 2616. 0.004 2.2 3190. 0.005 2.7 3799. 0.006 3.5 4450. 0.005 3.0 5149. 0.004 2.9 5900. 0.004 3.1 6715. 0.003 2.7 7604. 0.002 1.6 8581. 0.002 2.2 9672. 0.004 3.9 10920. 0.004 5.1 12386. 0.005 6.8 14184. 0.005 9.6 16588. 0.012 28.6 20702. 0.024 98.6 26417. 0.034 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 415. 0.000 0.1 637. 0.001 0.2 863. 0.002 0.4 1096. 0.003 0.7 1573. 0.008 3.8 ** 2080. 0.012 5.9 2616. 0.007 3.5 3187. 0.006 3.2 3791. 0.007 4.1 4441. 0.007 4.5 5141. 0.007 4.6 5895. 0.005 3.5 6716. 0.003 2.7 7608. 0.003 3.0 8597. 0.003 3.5 9702. 0.003 3.7 10960. 0.002 2.7 12429. 0.003 4.2 14218. 0.004 7.6 16597. 0.012 27.8 20718. 0.026 26475. 0.032 **

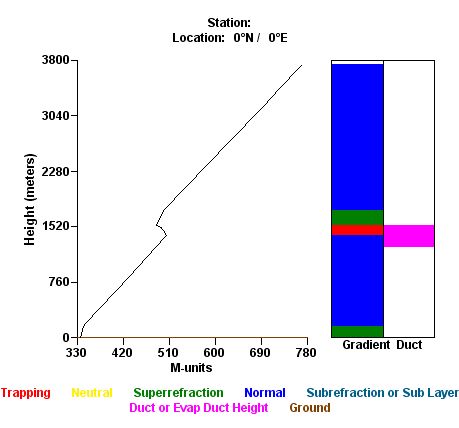

Real data only available :

5R8

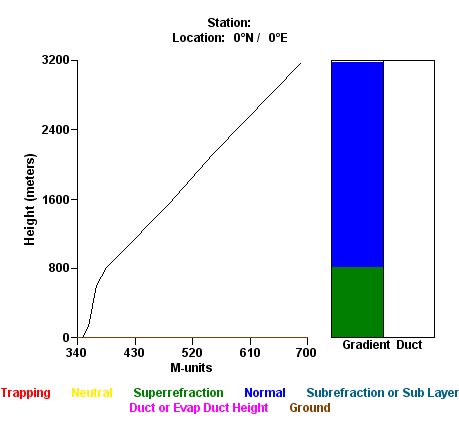

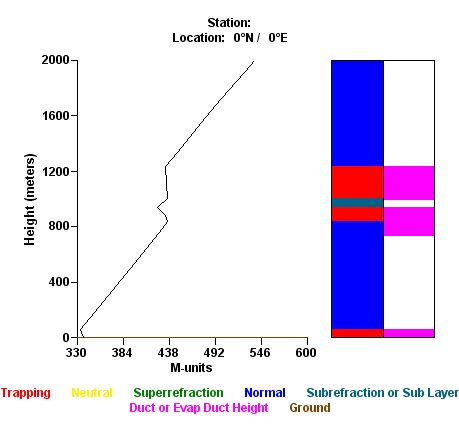

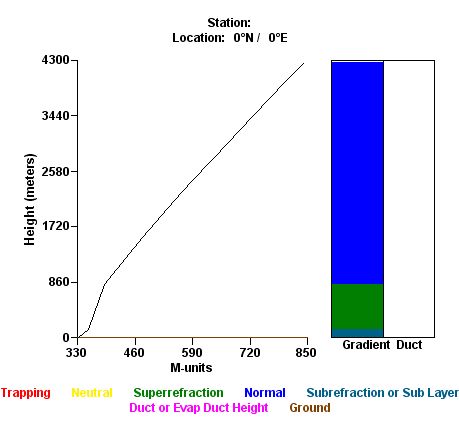

	67197 Fort-Dauphin Observations at 00Z 13 Sep 2010.jpg	67197 Fort-Dauphin Observations at 12Z 13 Sep 2010.jpg

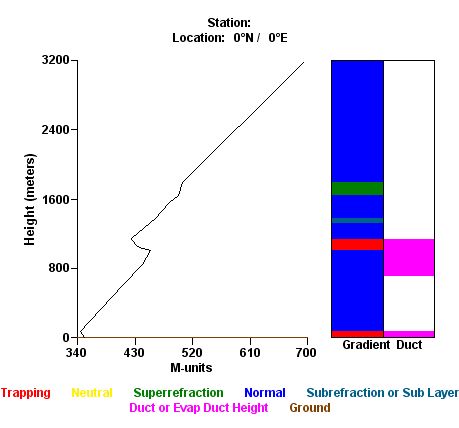

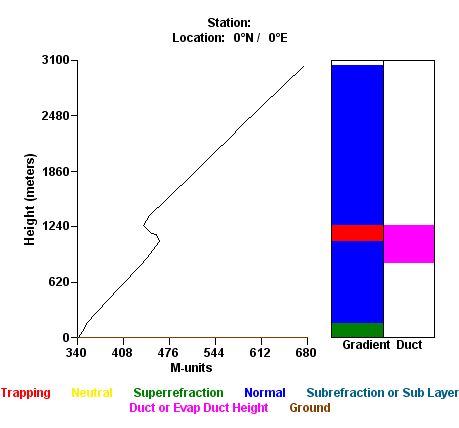

	67197 Fort-Dauphin Observations at 00Z 14 Sep 2010.jpg	67197 FMSD Fort-Dauphin Observations at 00Z 15 Sep 2010.jpg

	67197 FMSD Fort-Dauphin Observations at 00Z 16 Sep 2010.jpg	67197 FMSD Fort-Dauphin Observations at 12Z 16 Sep 2010.jpg

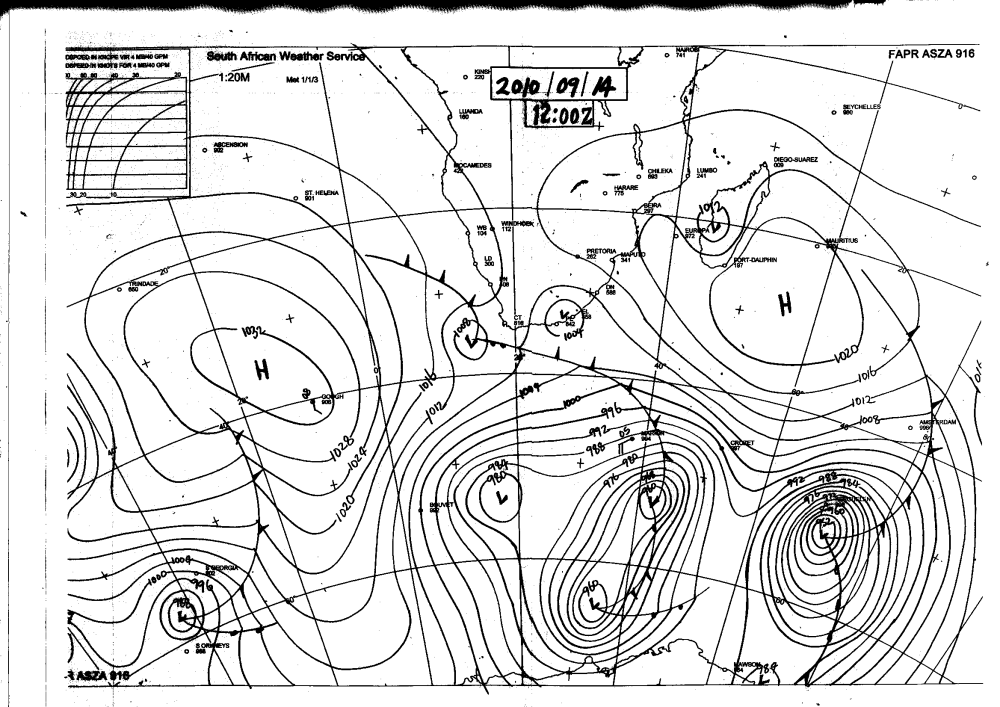

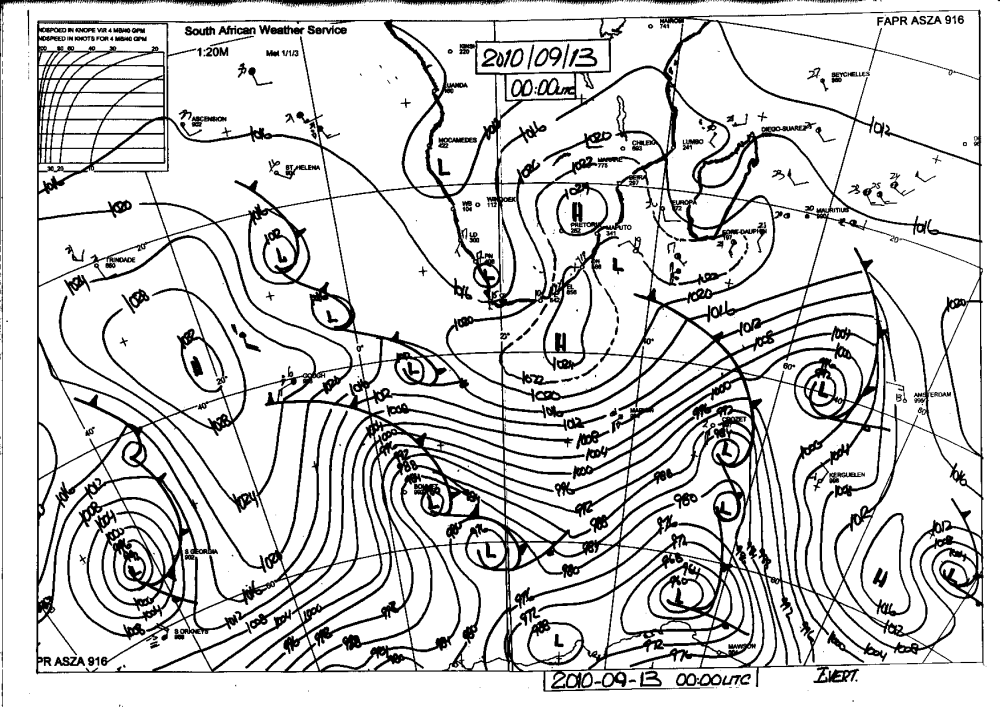

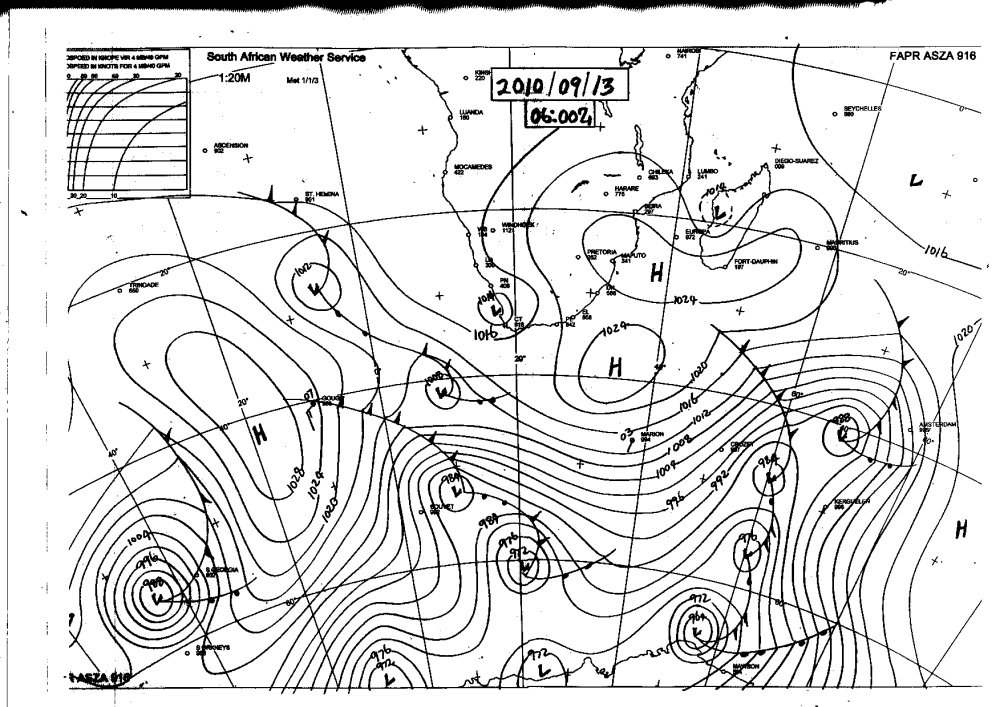

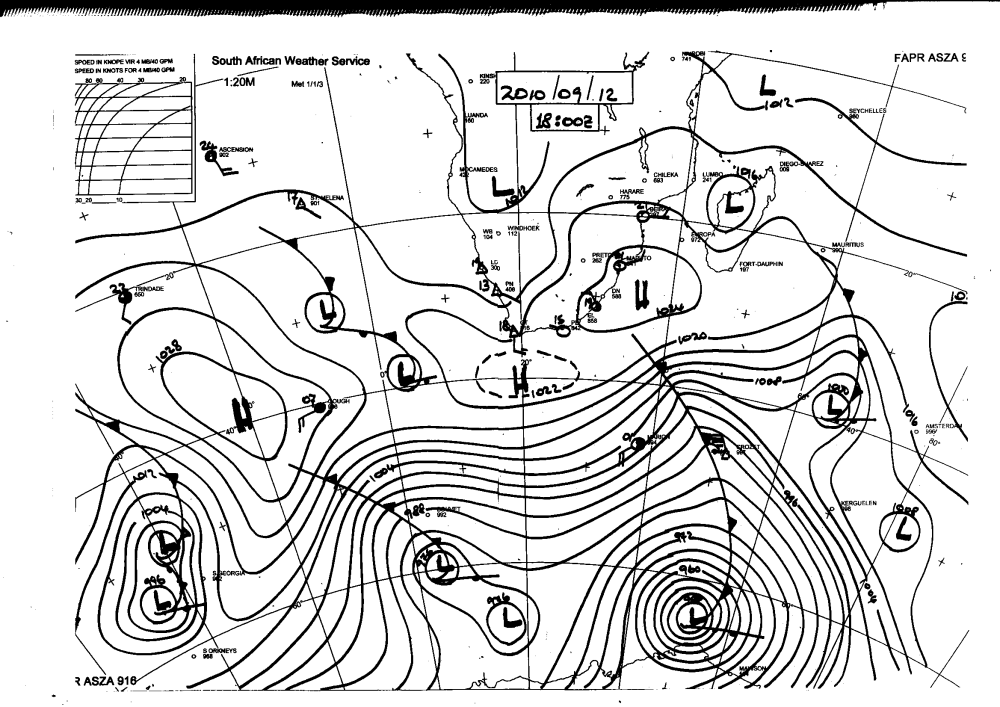

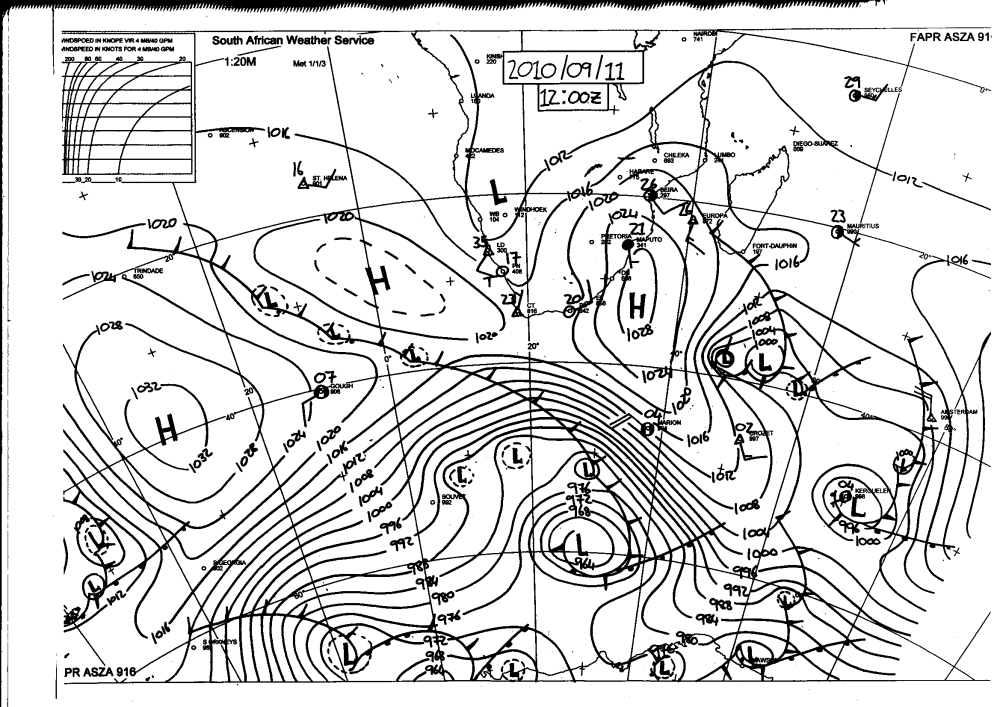

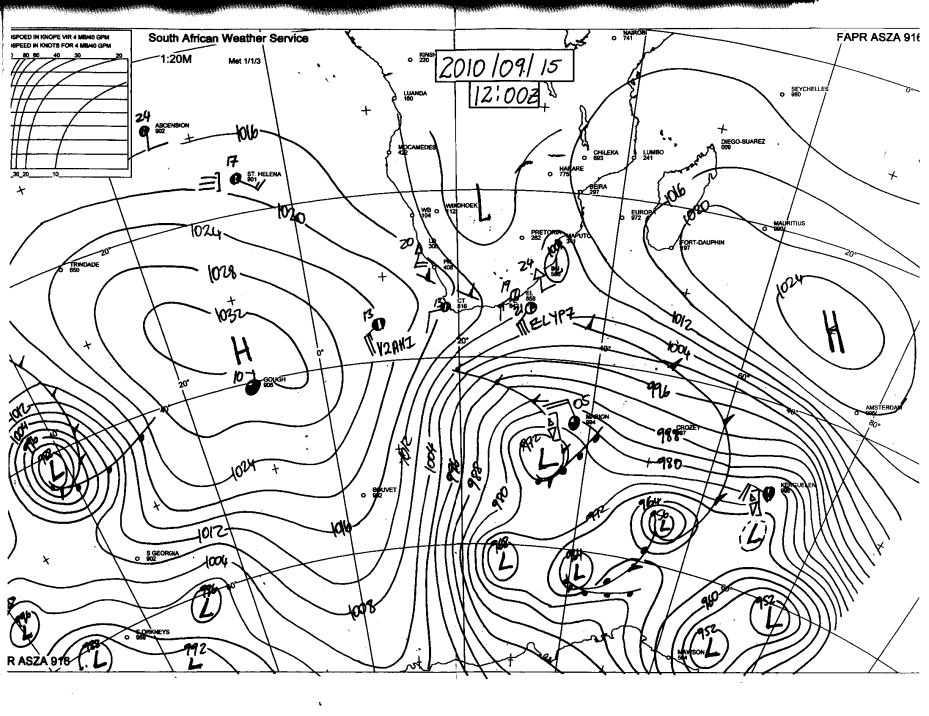

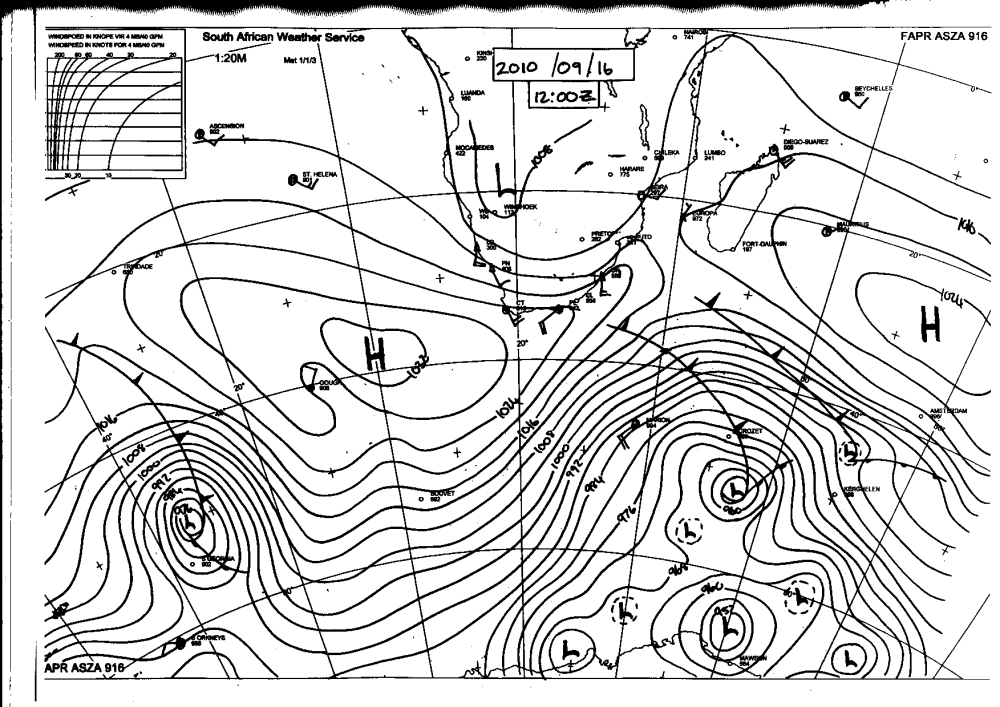

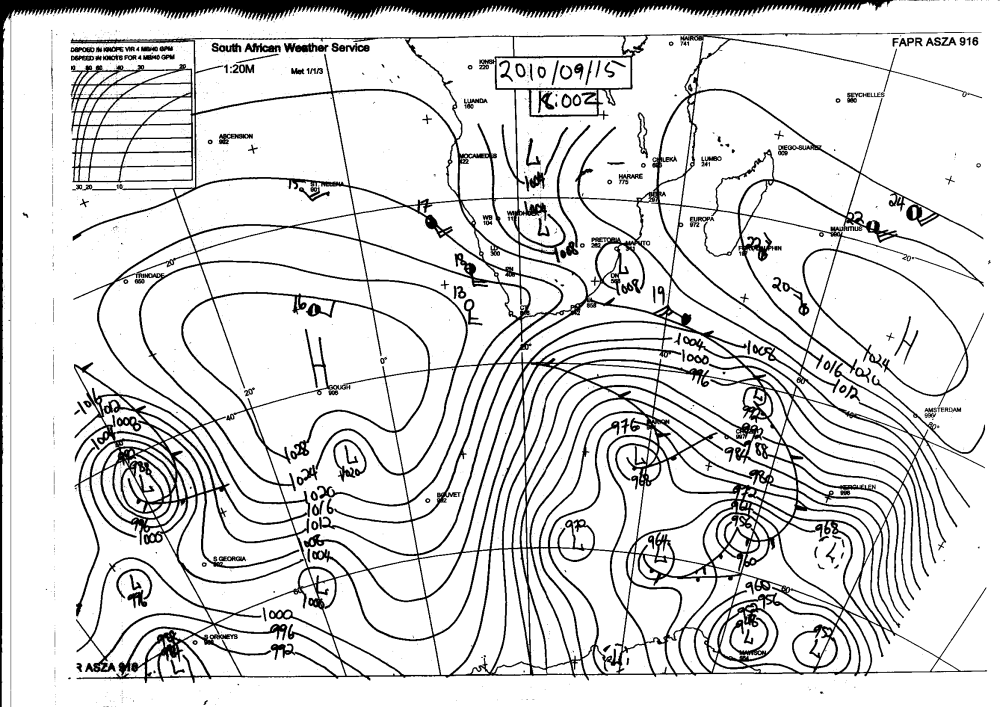

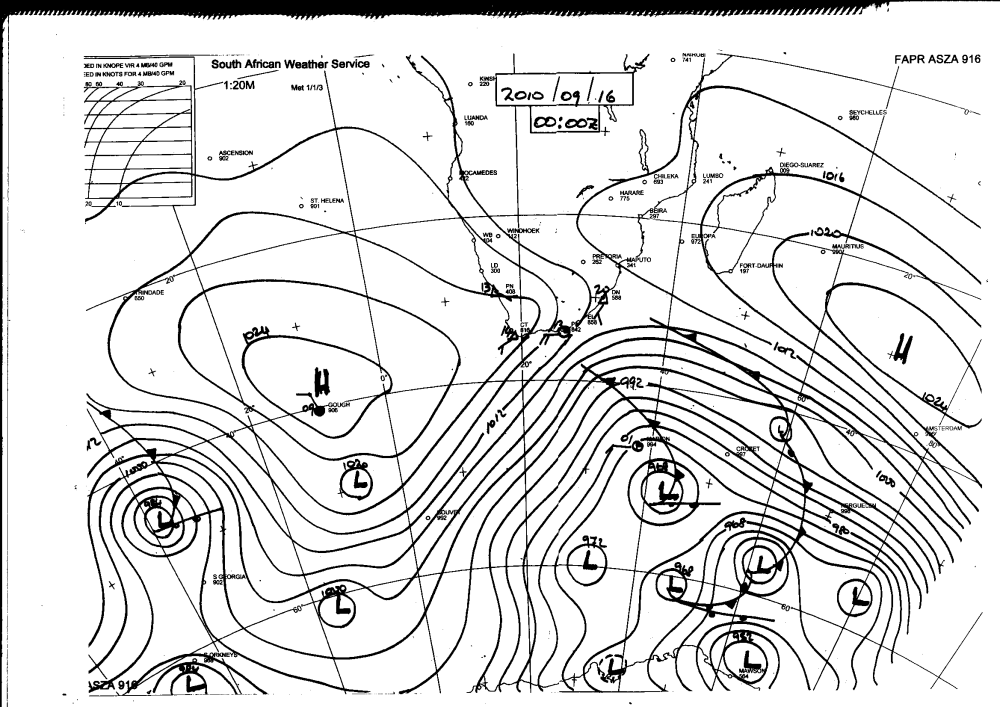

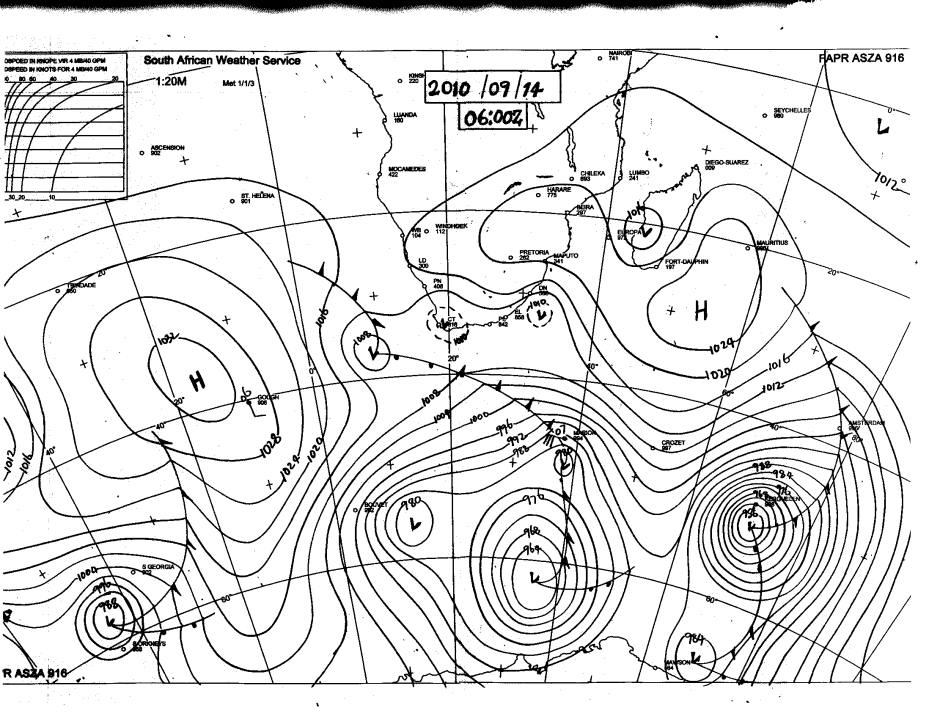

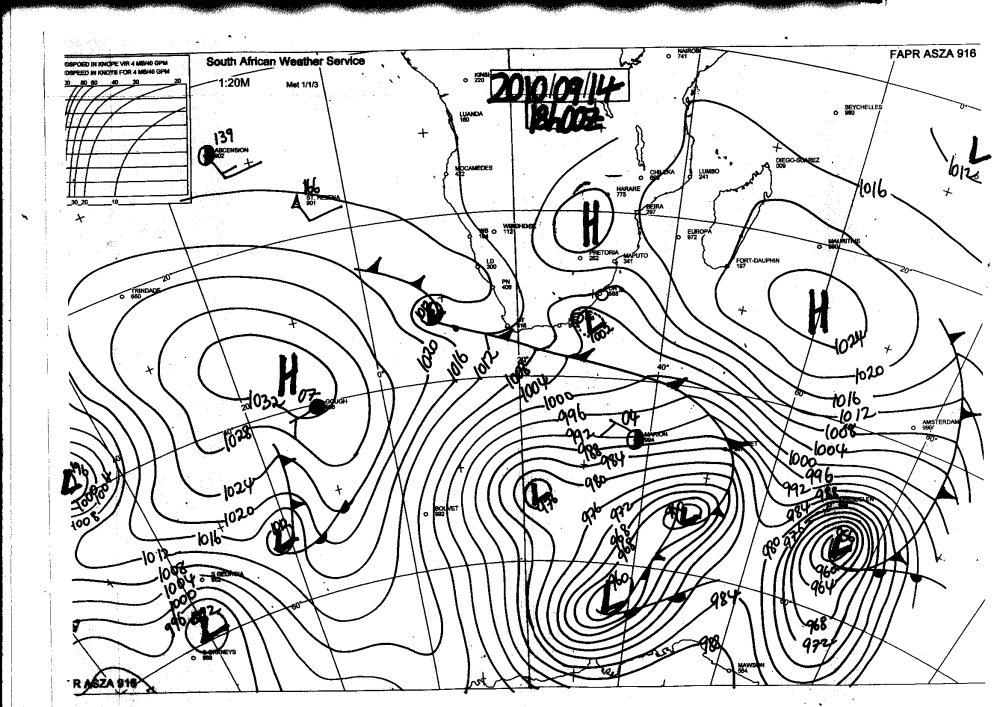

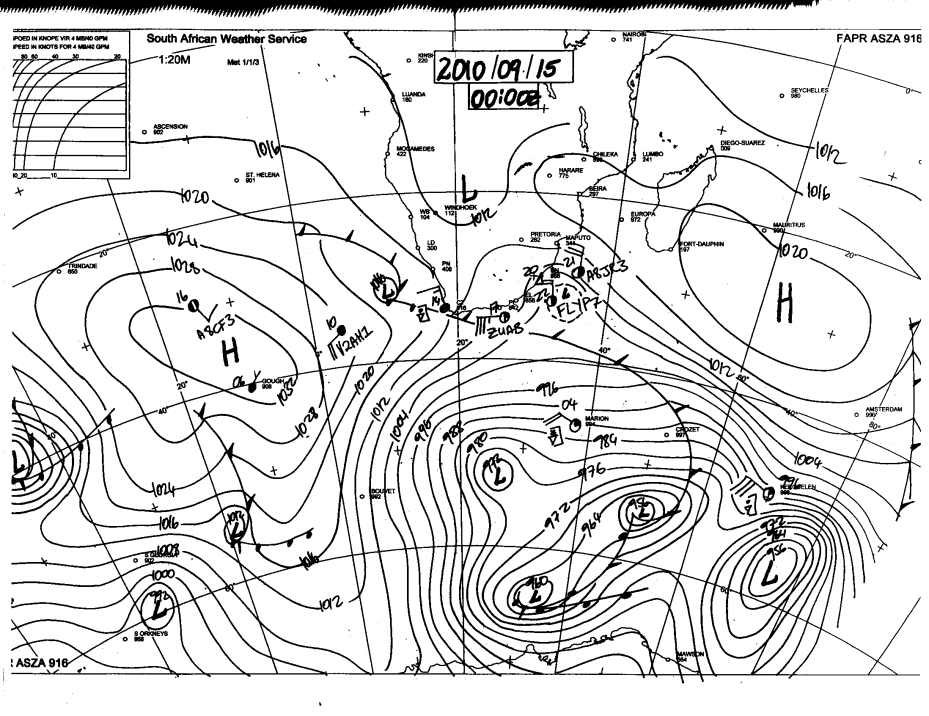

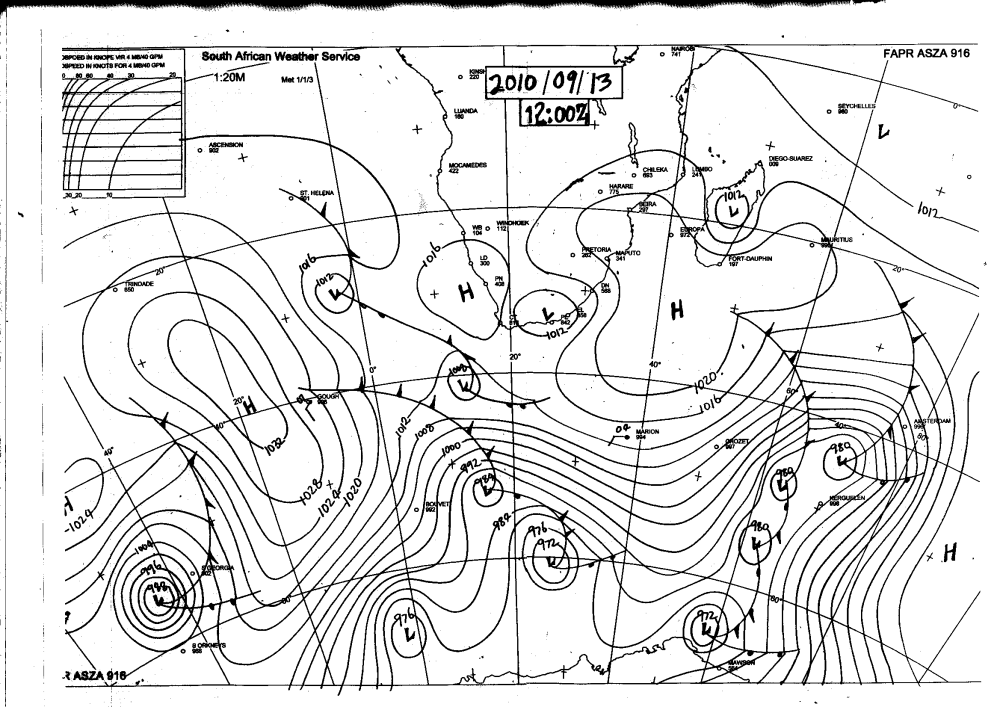

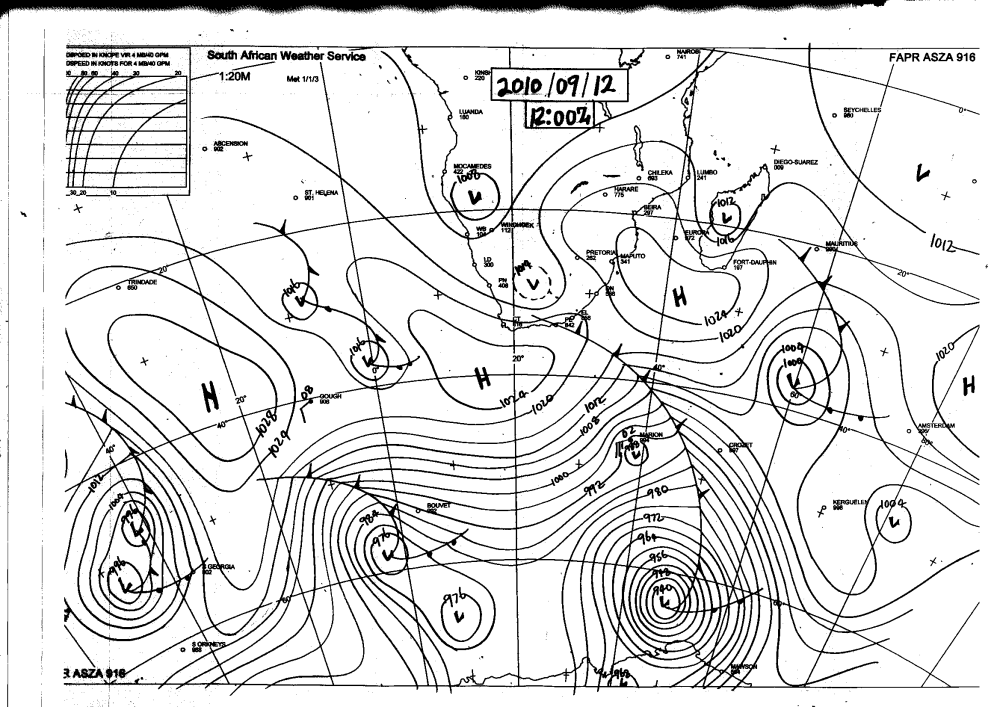

5-The surface pressure chart

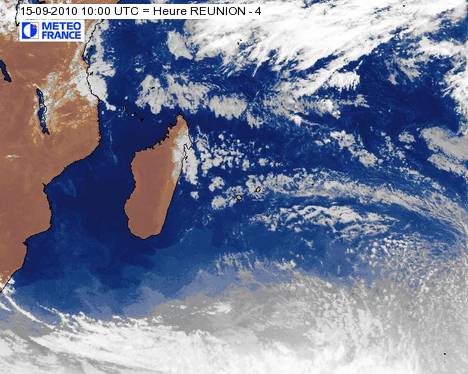

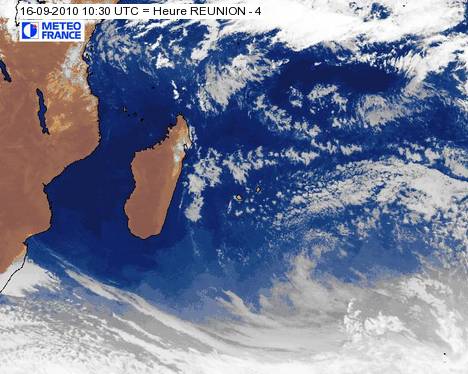

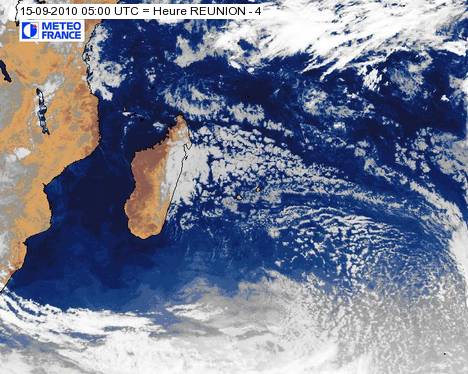

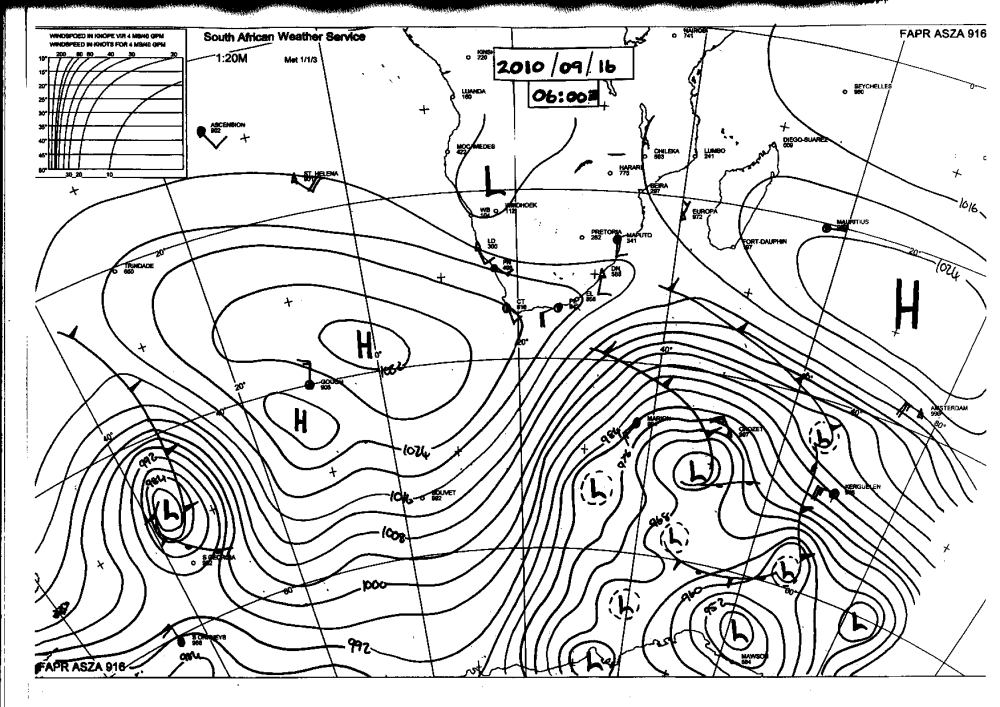

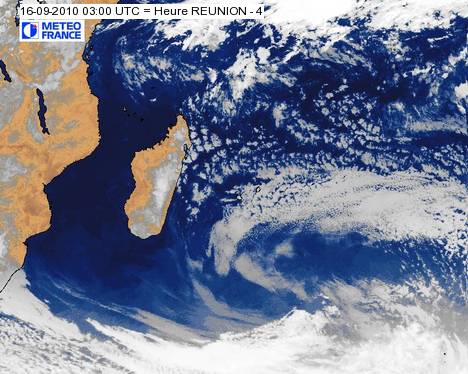

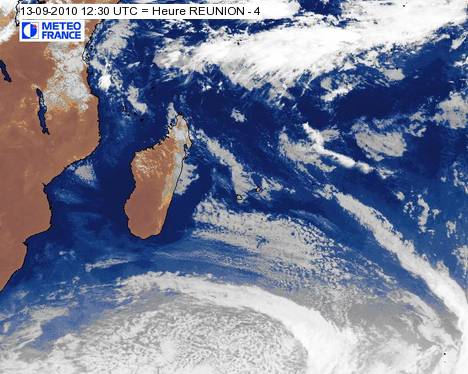

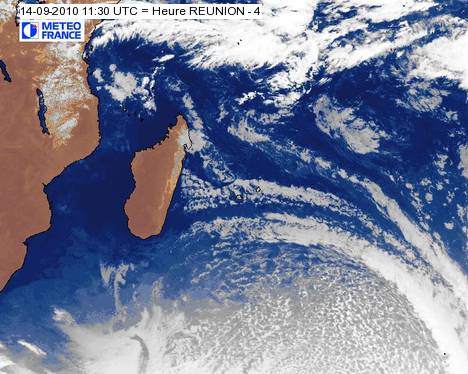

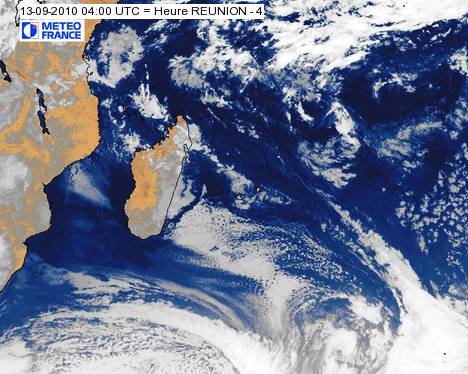

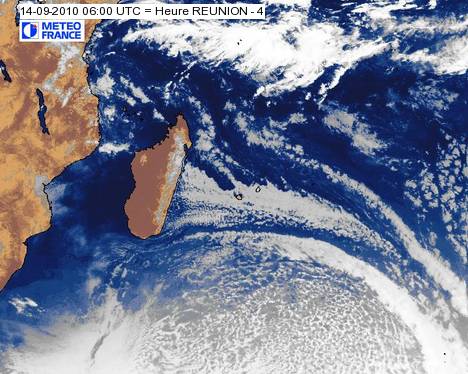

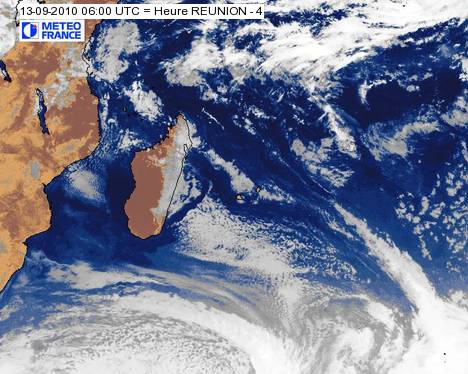

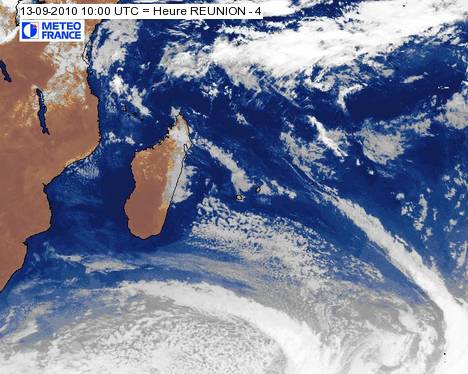

6-The visible maps

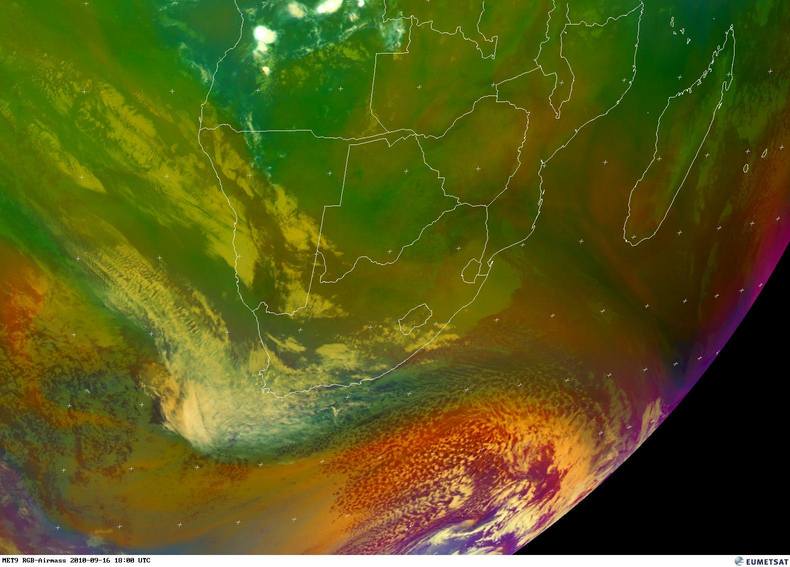

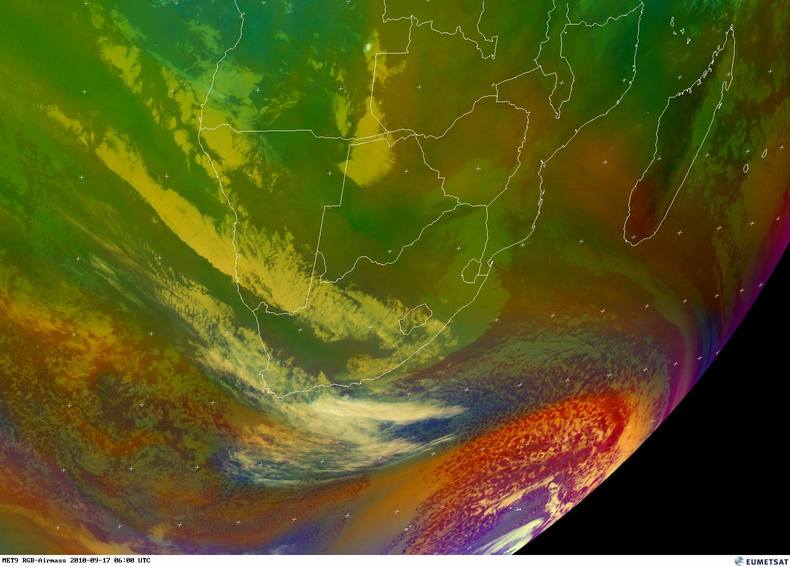

7-The airmass maps (Copyright 2010 Eumetsat)

Very interesting maps showing the warm-cold areas.

For analysis of airmass maps see : http://oiswww.eumetsat.org/IPPS/html/bin/guides/msg_rgb_airmass.ppt

On some meteo website, i have read this :
This airmass image can be used for day and night.
Warm air (high tropo) are green when they have a high humidity in altitude.
Warm air (high tropo) are brown-orange when they have a low humidity in altitude.
Cold air (low tropo) are blue to blue-purple.
But due to the roundness of the earth, , warm air may appear as blue.
Tropo anomaly shows reddish color.
Intense red shows jet, and jet advection area.

See how they correlate with the point #3 radiosounding data (PREDICTED DATA from NOAA Air Resources Laboratory)

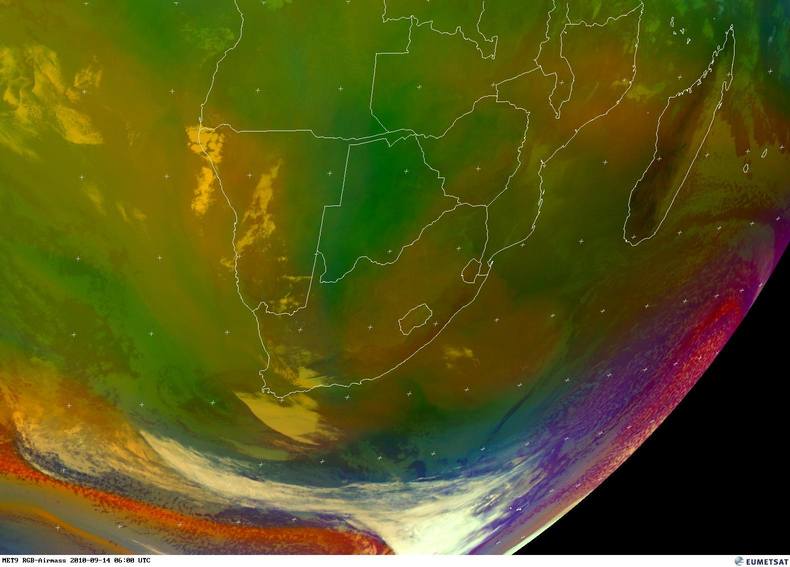

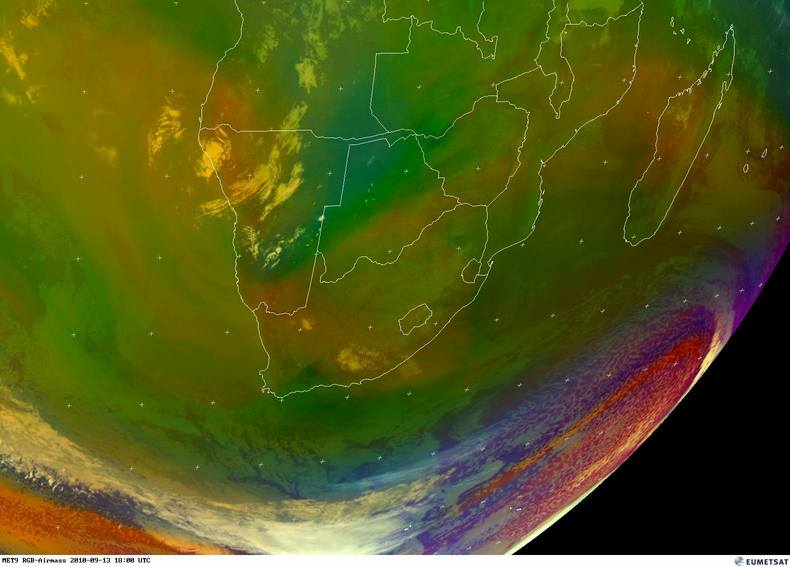

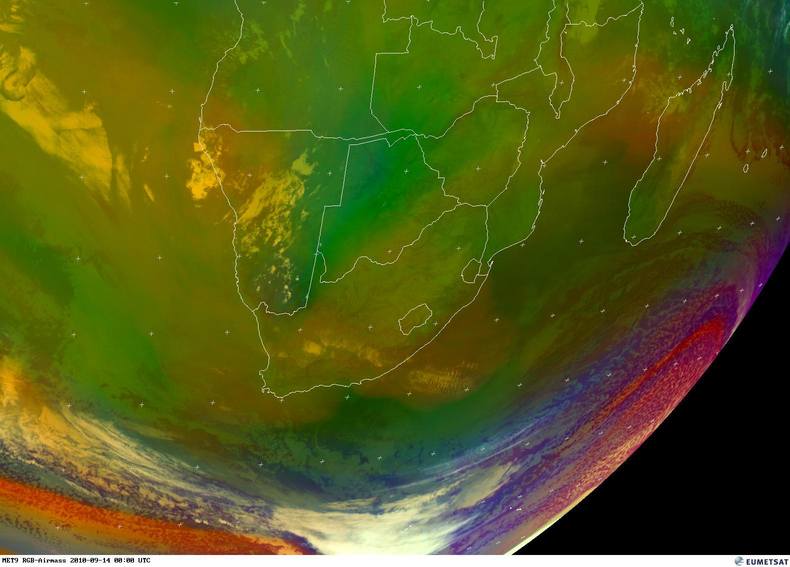

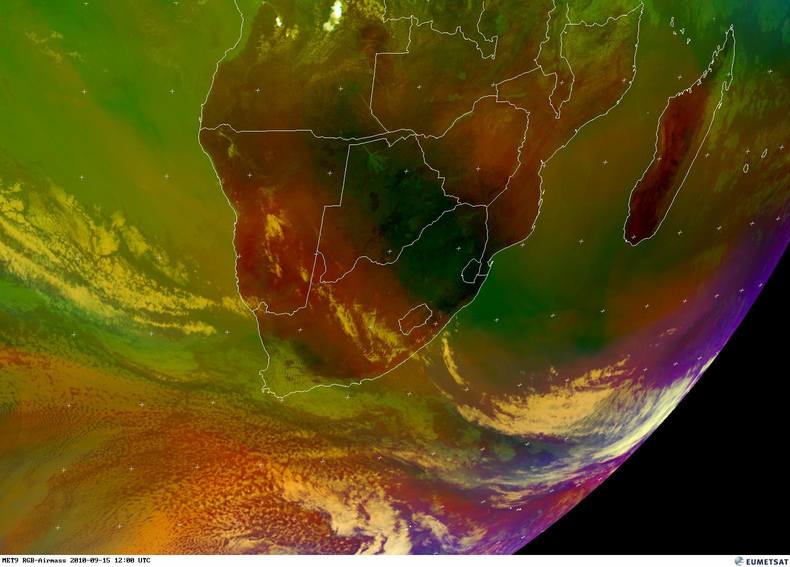

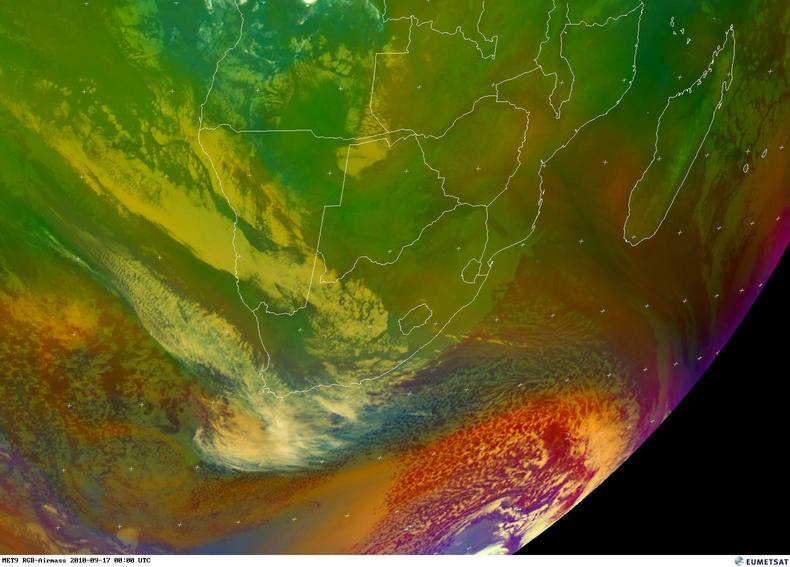

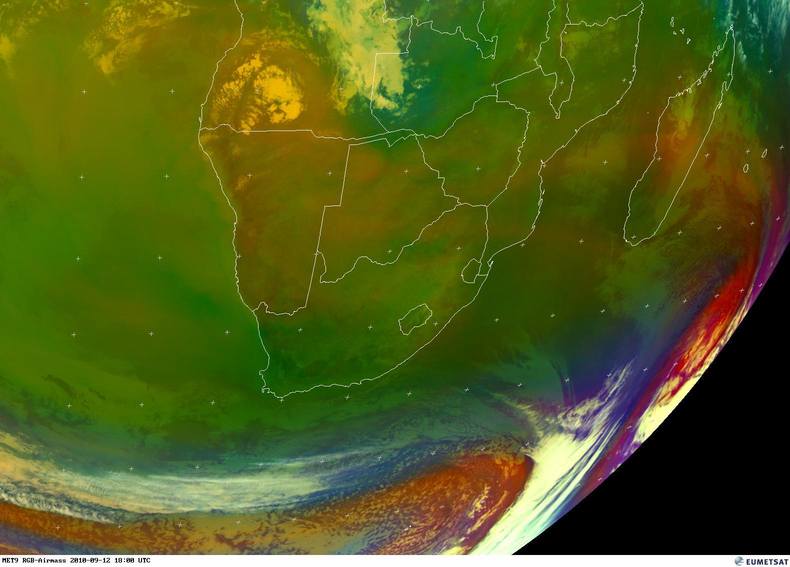

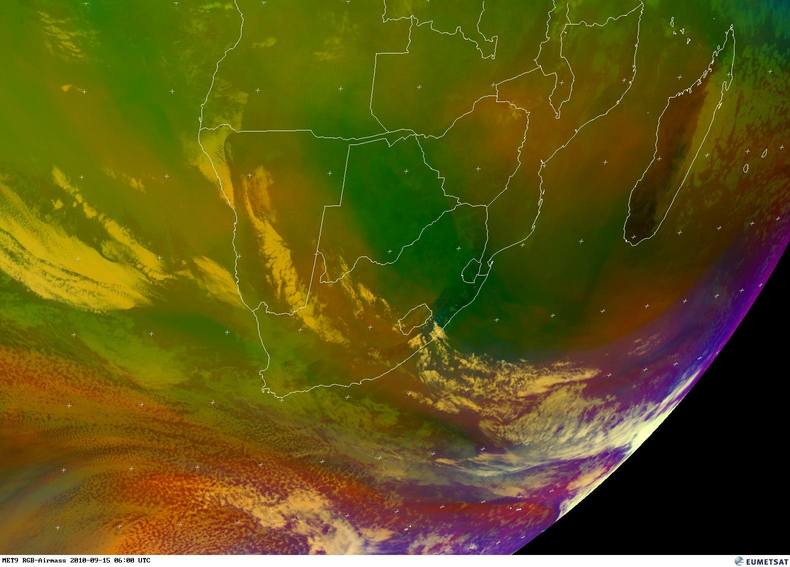

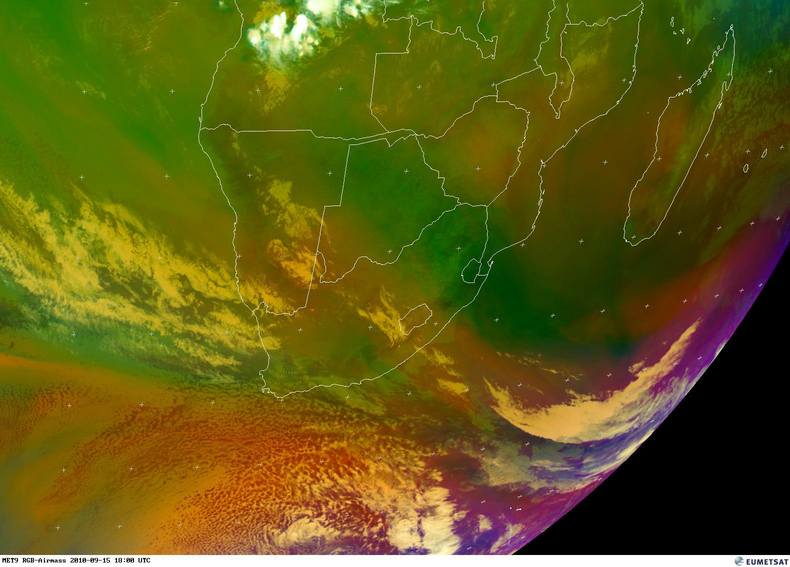

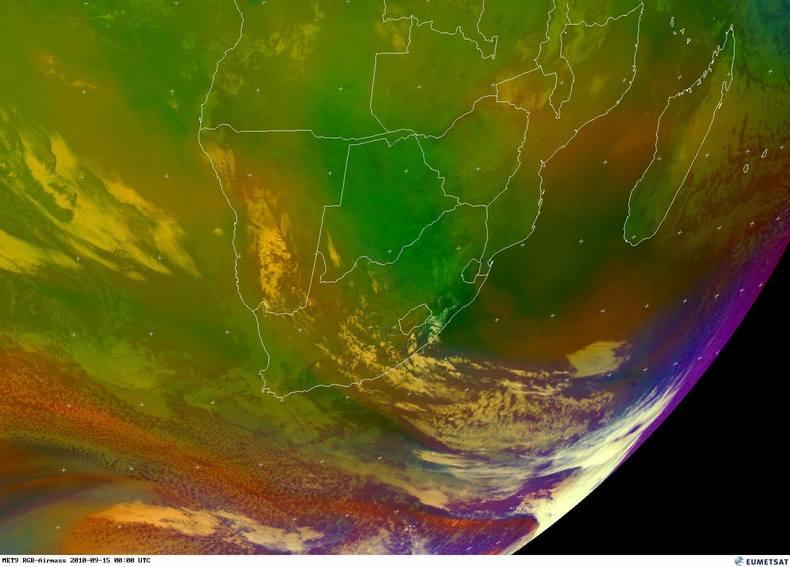

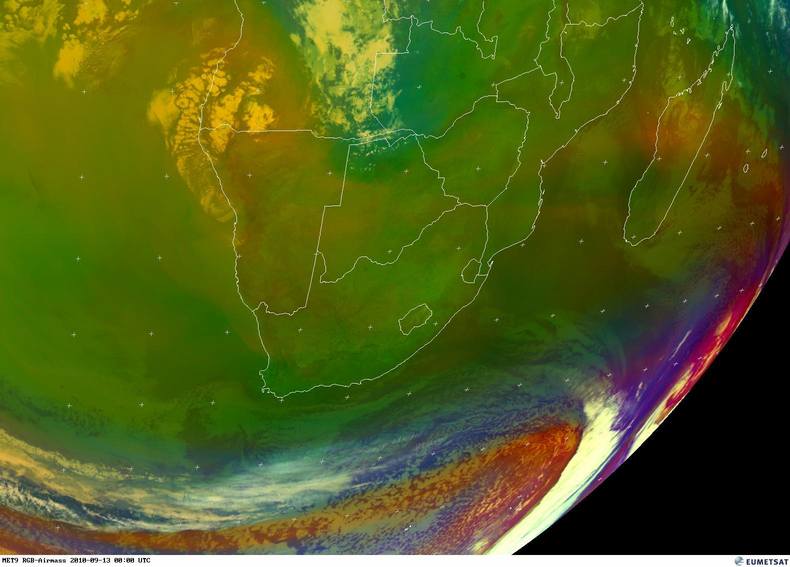

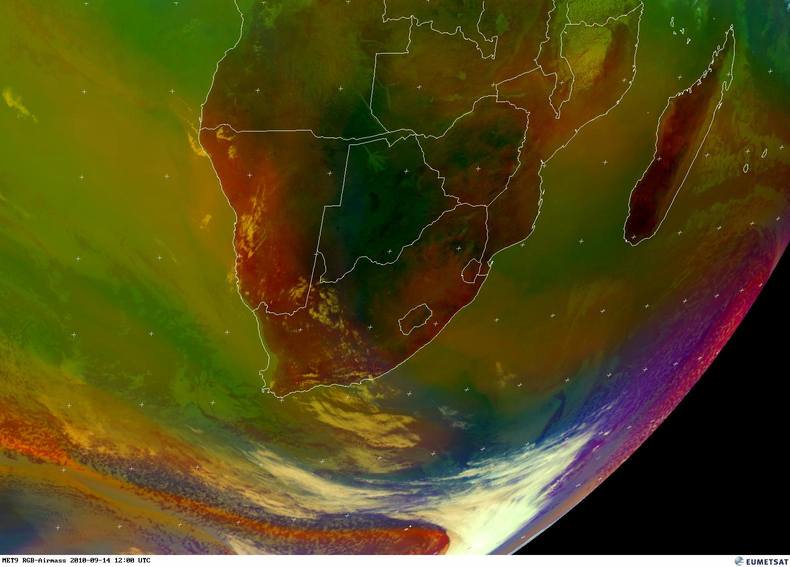

airmass-2010-09-12-18z.jpg	airmass-2010-09-13-00z.jpg

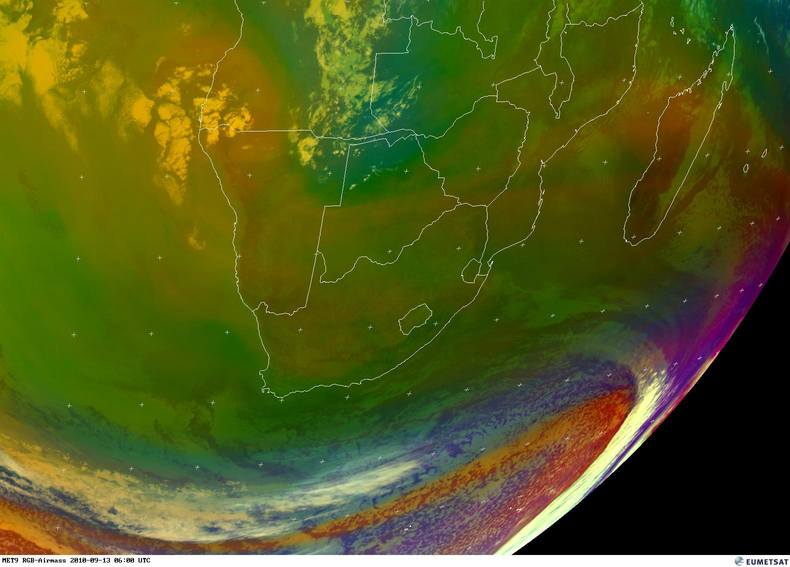

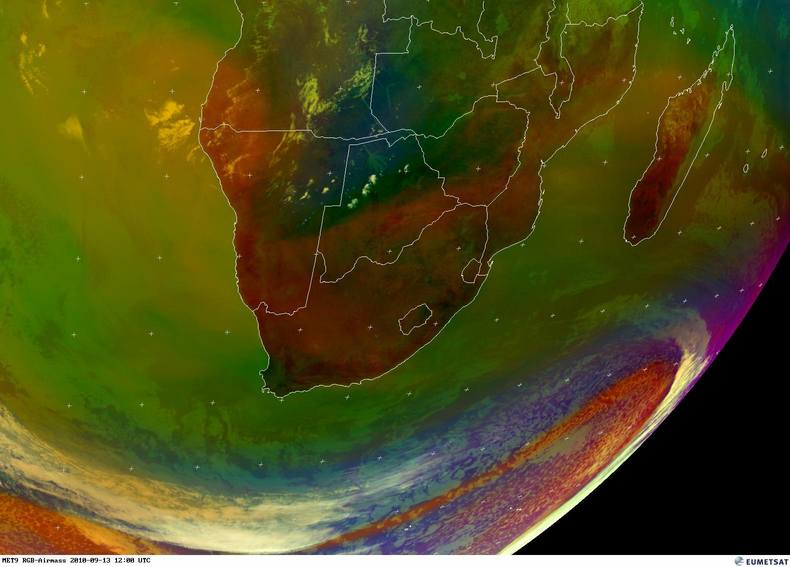

airmass-2010-09-13-06z.jpg	airmass-2010-09-13-12z.jpg
airmass-2010-09-13-18z.jpg	airmass-2010-09-14-00z.jpg
airmass-2010-09-14-06z.jpg	airmass-2010-09-14-12z.jpg

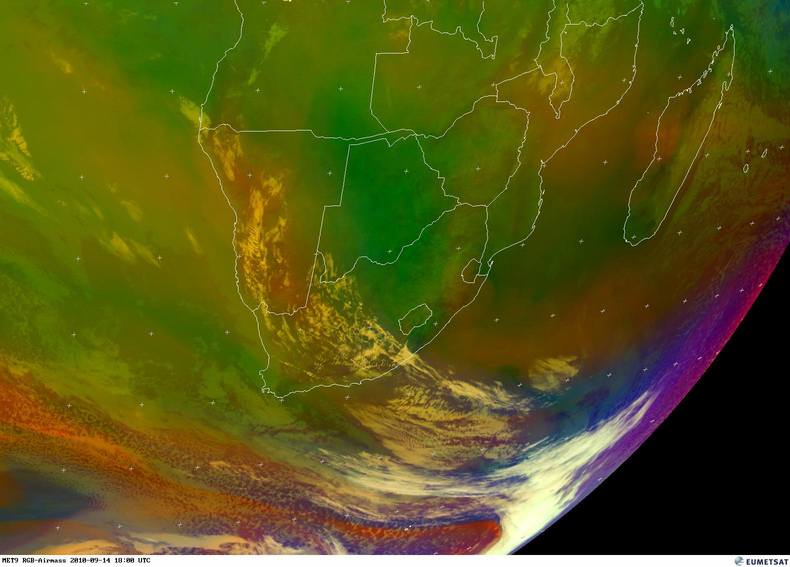

airmass-2010-09-14-18z.jpg	airmass-2010-09-15-00z.jpg
airmass-2010-09-15-06z.jpg	airmass-2010-09-15-12z.jpg

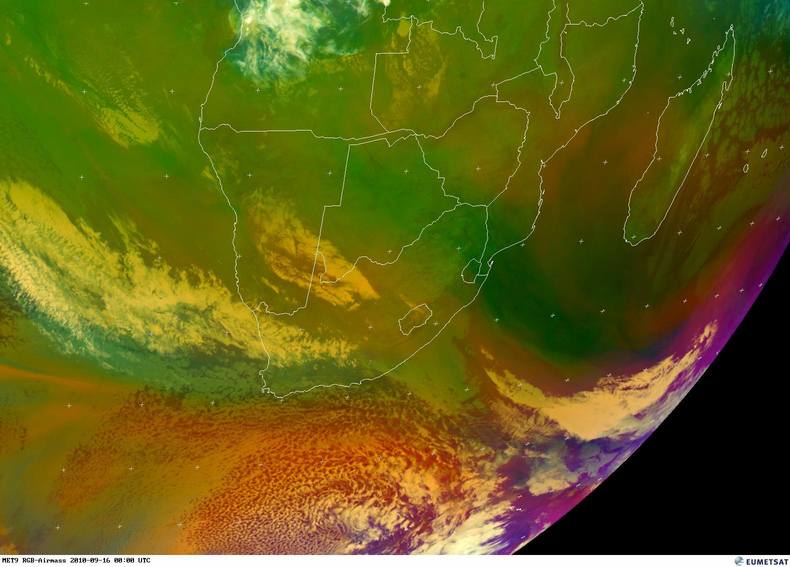

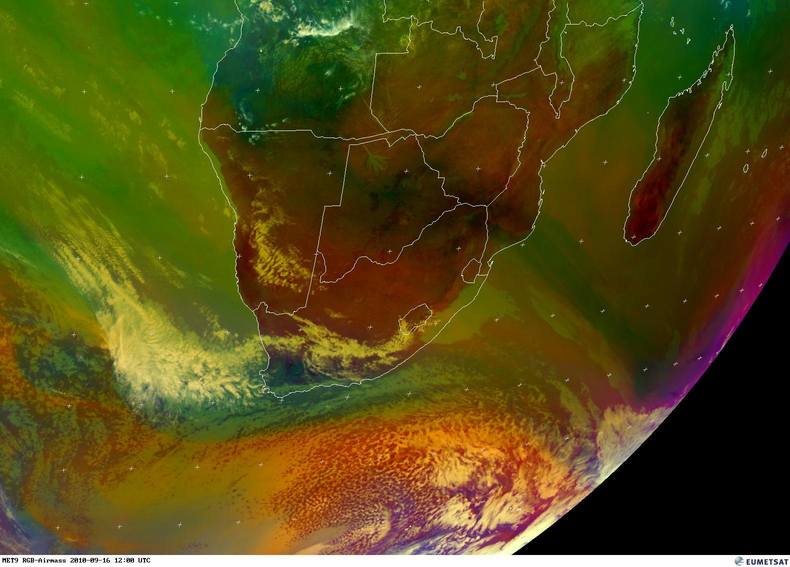

airmass-2010-09-15-18z.jpg	airmass-2010-09-16-00z.jpg

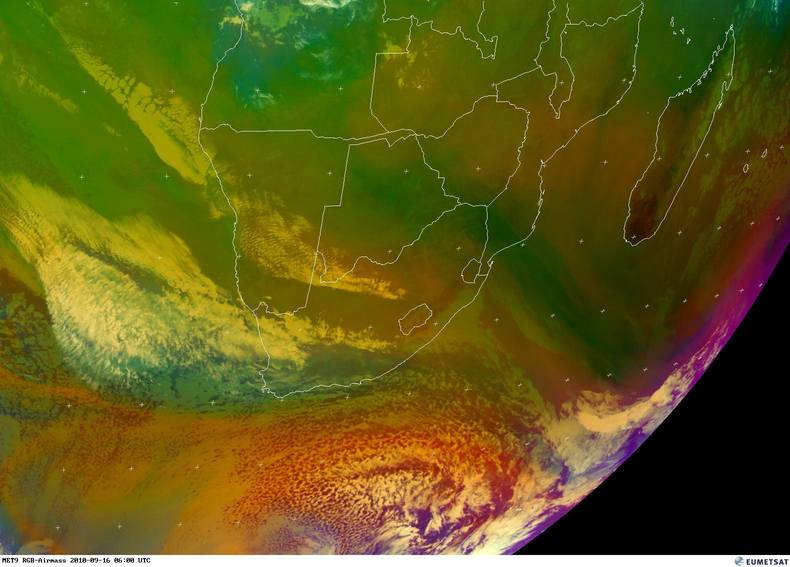

airmass-2010-09-16-06z.jpg	airmass-2010-09-16-12z.jpg
airmass-2010-09-16-18z.jpg	airmass-2010-09-17-00z.jpg

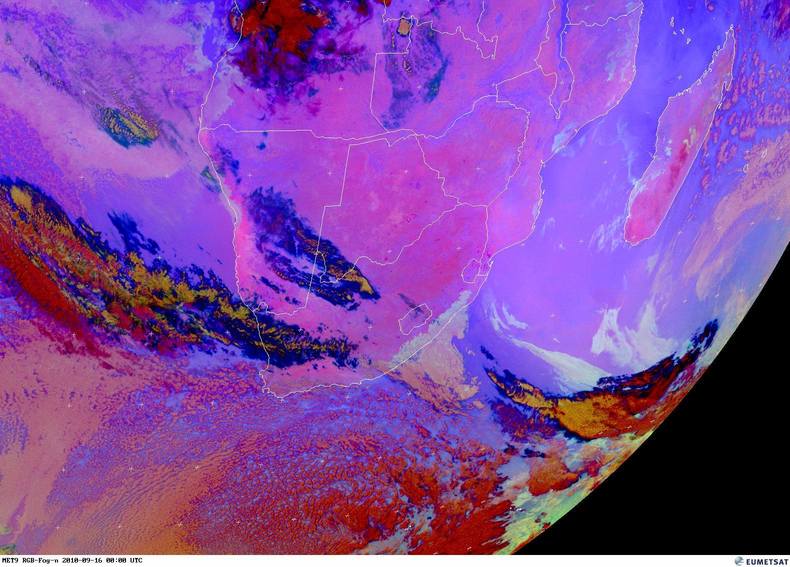

8-The fog maps - for night picture only (Copyright 2010 Eumetsat)

For analysis of fog maps see : http://oiswww.eumetsat.org/WEBOPS/msg_interpretation/PowerPoints/Application/00_fog.ppt

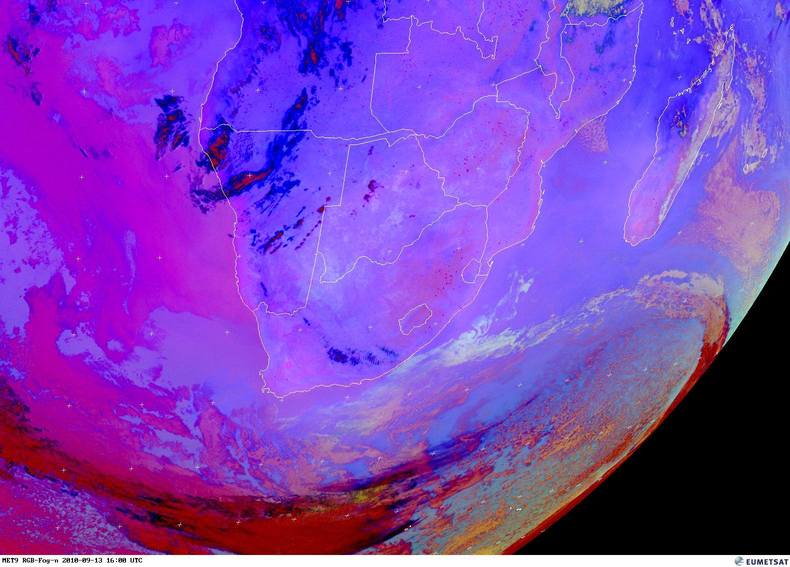

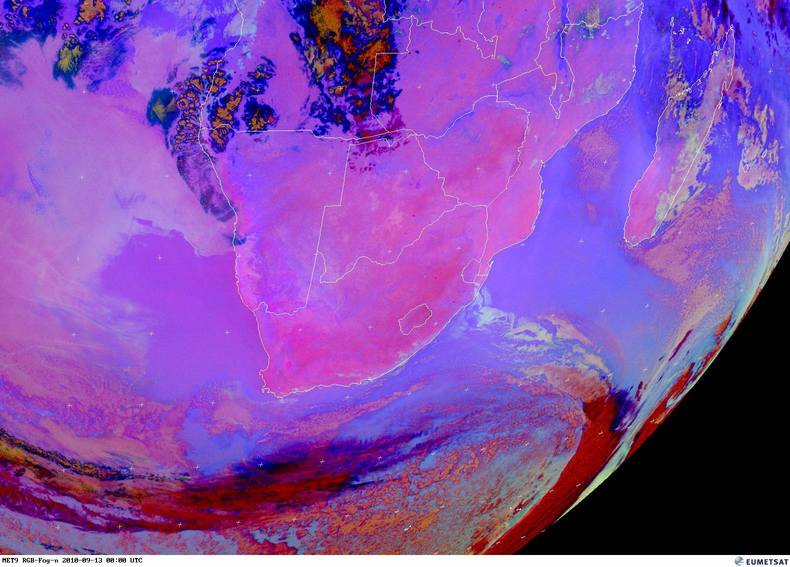

FOG-2010-09-13-00z.jpg	fog-2010-09-13-16z.jpg

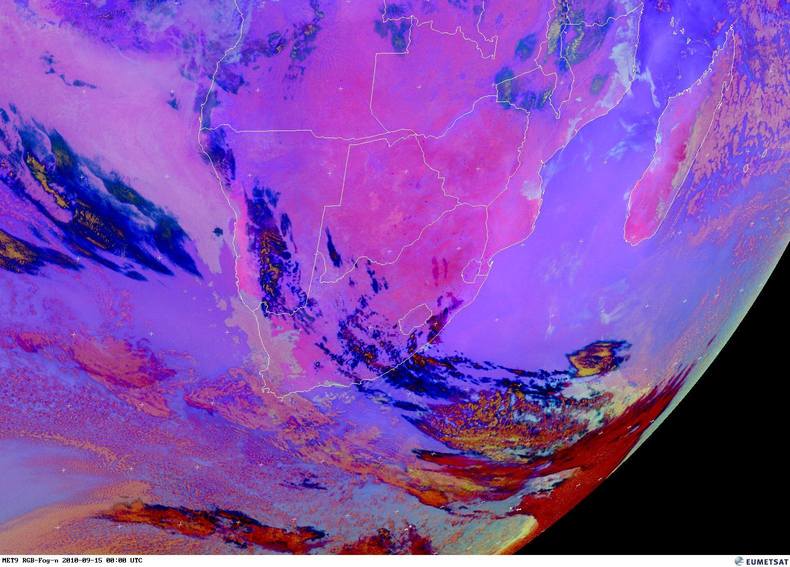

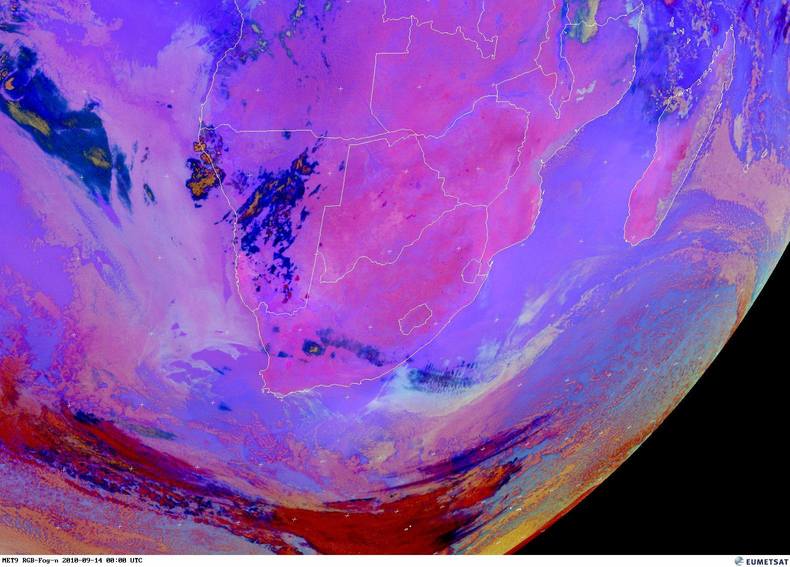

FOG-2010-09-14-00z.jpg	fog-2010-09-15-00z.jpg

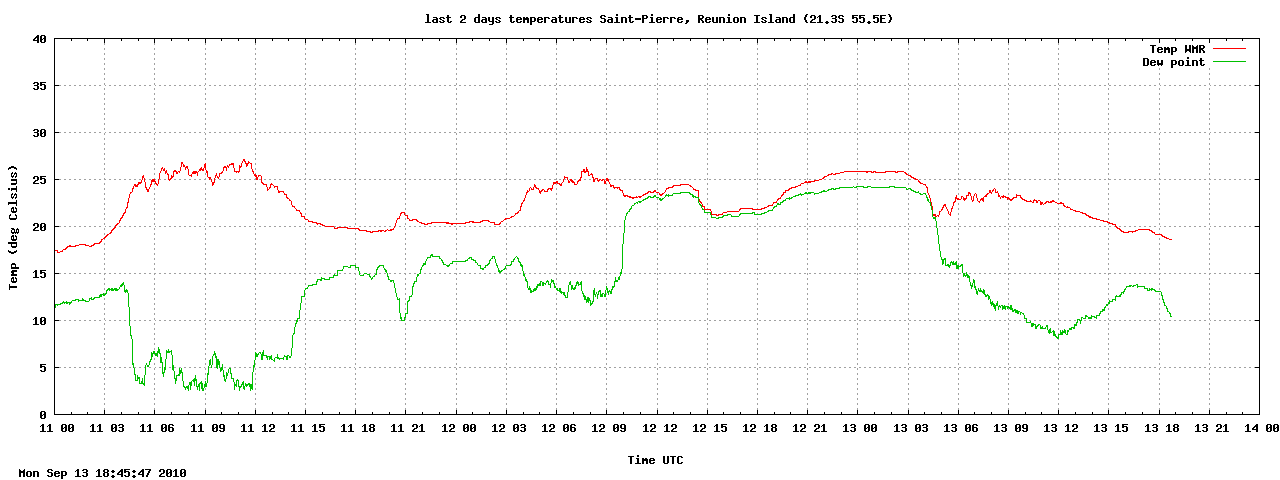

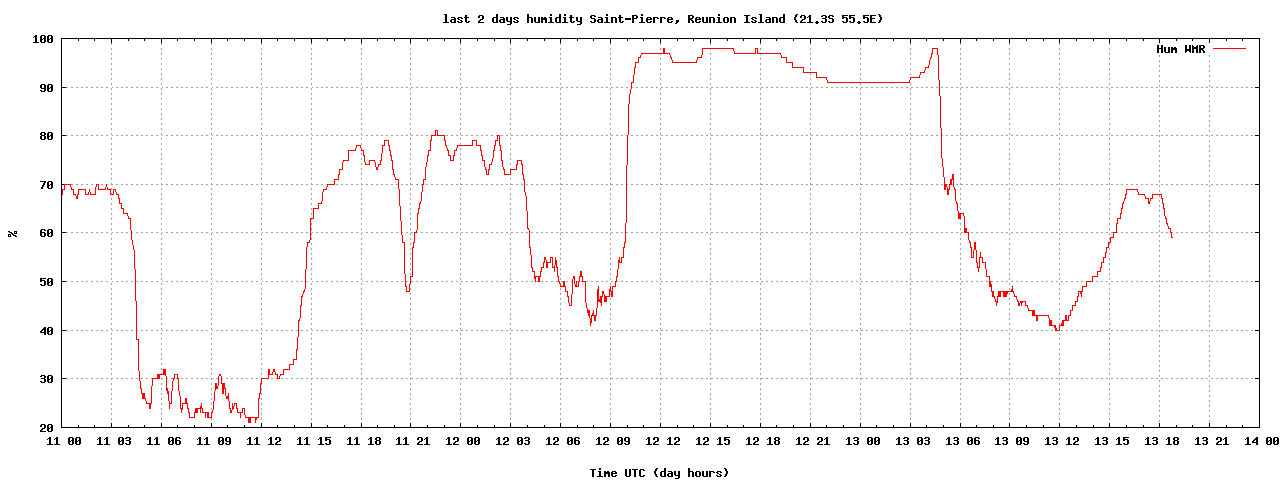

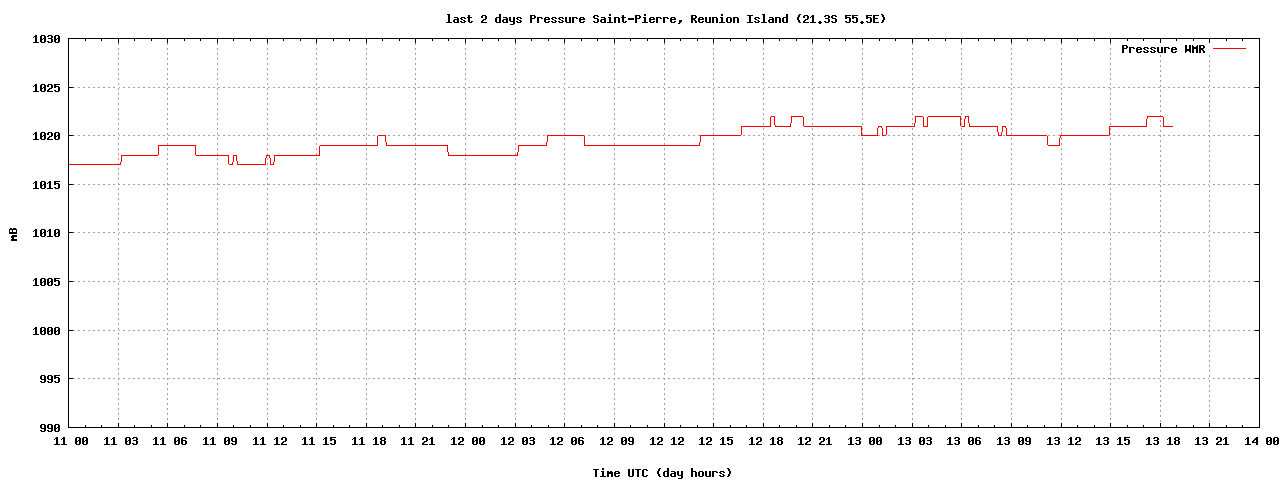

Some meteorological data recorded at 130m altitude by Manu at Saint-Pierre (Thanks Manu!)

9-The QSO's

2010-09-13

ZS2GK was 59+ on 144 at 1247z

ZS2GK KF47kt to FR5DN LG78qs : 2891 Km (144 digital, ssb, FM and 432Mhz digital, ssb, FM)

432 digital 2010-09-13:
130900 14   -4 0.7 -269 3 *      FR5DN ZS2GK KF47          1   0
131100 16   -4 1.0 -132 3 #      FR5DN ZS2GK KF47    OOO   1   0

432ssb 2010-09-13 just after the digital qso:
Glenn was here at best 58. He got me 55-58.

Then we tried 432 FM 2010-09-13:
At best he was 56-57 but i was having some local noise on FM, i need to correct that.

ZS5DJ KG59aa to FR5DN LG78qs : 2629 Km (144 ssb and FM)
1250z, Dave was 56, he gave me 57 ssb.
Then we made some tests on FM a bit later on and we exchanged 57/57.
1813z he was still 56-57, i was 56.

ZS5LEE was also on after 16z and we made it 2m JT (-3db), then we switched 2m ssb, and he was 55 here.
He got me 51 without preamp.

ZS2ACP KF26sa to FR5DN LG78qs : 3249 Km (144 digital)
Around 1643z Andre was there on 2m JT, he was -10db at best here.

ZS2GK was still 59 here.

ZS2ABF Peter in KF37 joined us around 20z on 2m JT (-12db).
Then we made it ssb, we exchanged 53/52. His signal was building up to 57-58 after 21z.

ZS2AH John came on around 2115z, and we made it 2m SSB with 55/59

Several qso occured with most stations as cdx were building up.

2010-09-14

ZS2ABF was on 1415z.

Then i had to leave home very quickly, so no more to say.

2010-09-15

ZS5DJ was on 2m JT around 0730z.

ZS2GK was there in afternoon, and made some tests with FR1GZ Yvon, but cdx were down.

*************************************************************************************

The JT65b decoded RX at FR5DN side :

UTC Date: 2010 Sep 13
---------------------
032800 Transmitting: JT65B   CQ FR5DN LG78
124300 5   -6 0.2 -447 5 *      FR5DN ZS5DJ KF59          1   0
124300 2   2/2                    FR5DN ZS5DJ KF59          1   0
124414 Transmitting: JT65B   ZS5DJ FR5DN LG78 OOO
124500 10   -8 0.2 -425 8 *
124633 Transmitting: JT65B   RRR -6DB                      (Shorthand)
124700 2   -6 0.2 -388 5 *
124834 Transmitting: JT65B   ZS5DJ FR5DN LG78 OOO
124900 7   -3 0.2 -331 2 *      FR5DN ZS5DJ -07           1   0
125000 0 -21 9.0 -498 7 *
125100 1 -32      -361 1   RRR ?


UTC Date: 2010 Sep 13
---------------------
151800 Transmitting: JT65B   ZS5DJ FR5DN LG78
151801 Transmitting: JT65B   CQ FR5DN LG78
153100 1 -31       557 1   73 ?
154100 1 -32       345 2   73 ?
154500 1 -31       400 3   RRR ?

155700 19   -4 0.3 156 3 *      FR5DN ZS5DJ -05           1   0
155700 2 17/20                   FR5DN ZS5DJ -05           1   0
155900 0 -13 0.3 156 2 *
155900 2 18/21                   FR5DN ZS5DJ -05           1   0
160100 0 -28 4.2 393 3 #
160100 2 19/22                   FR5DN ZS5DJ -05           1   0
160300 0 -26 4.4 568 2 #
160300 2 20/23                   FR5DN ZS5DJ -05           1   0
160500 0 -28 7.2 568 29 #
160500 2 21/24                   FR5DN ZS5DJ -05           1   0

161000 Transmitting: JT65B   ZS5LEE FR5DN LG78 OOO
161100 10 -13      -152 3   RO ?
161202 Transmitting: JT65B   RRR                           (Shorthand)
161300 10   -8      -150 4   73 ?
161400 Transmitting: JT65B   73 SSB SSB                    (Shorthand)

163900 7 -18 1.1 159 3 *      CQ ZS2ACP KF26            1   0
164100 16 -10 1.5 159 3 *      FR5DN ZS2ACP -25          1   0
164200 Transmitting: JT65B   ZS2ACP FR5DN LG78 OOO
164300 19 -11 1.6 159 3 *      FR5DN ZS2ACP R-25         1   0
164409 Transmitting: JT65B   RO                            (Shorthand)
164419 Transmitting: JT65B   RO R-10                       (Shorthand)
164500 14 -11 1.6 159 3 *      FR5DN ZS2ACP 73           1   0
164603 Transmitting: JT65B   73                            (Shorthand)
164700 10 -12 1.6 159 2 *      FR5DN ZS2ACP R-19         1   0
164815 Transmitting: JT65B   73 ANDRE                      (Shorthand)

165801 Transmitting: JT65B   CQ FR5DN LG78
165900 15 -10 1.6    0 3 *      FR5DN ZS2ACP -18          1   0
165900 2 41/51                   FR5DN ZS5LEE KG50         1   0
170022 Transmitting: JT65B   ZS2ACP FR5DN -10
170100 5 -18 1.6    0 3 *      FR5DN ZS2ACP -21          1   0

175700 15   -3 -0.5   16 3 *      ZS5LEE 52 NOW             1   0
175700 2 69/80                   FR5DN ZS5LEE KG50         1   0
175814 Transmitting: JT65B   ZS2ACP FR5DN -14
180002 Transmitting: JT65B   ZS5LEE FR5DN R-14
180100 19   -5 -0.4   16 3 *      FR5DN ZS5LEE -06          1   0

195500 7 -12 -0.6 -310 1 #      FR5DN ZS2ABF KF37   OOO   1   0
195500 2 93/105                  FR5DN ZS5LEE -06          1   0
195618 Transmitting: JT65B   ZS2ABF FR5DN LG78
195619 Transmitting: JT65B   ZS2ABF FR5DN LG78 OOO
195700 8 -13 -0.7 -326 4 #      FR5DN ZS2ABF KF37   OOO   1   0
195900 10 -25      -452 4   RO ?
200003 Transmitting: JT65B   RO                            (Shorthand)
200007 Transmitting: JT65B   RRR                           (Shorthand)
200100 10 -20      -361 1   RO ?
200203 Transmitting: JT65B   73                            (Shorthand)
200300 10 -19      -380 1   73 ?
200403 Transmitting: JT65B   73 FB                         (Shorthand)
200500 10 -21      -398 1   73 ?

200900 6 -11 -0.8 -417 3 *      CQ ZS2ABF KF37            1   0
201005 Transmitting: JT65B   ZS2ABF FR5DN LG78 OOO
201100 5   -9 -0.9 -428 2 #      FR5DN ZS2ABF KF37   OOO   1   0
201205 Transmitting: JT65B   CQ FR5DN LG78
201209 Transmitting: JT65B   ZS2ABF FR5DN -11
201300 6 -11 -0.7 -439 4 *      GOOD COPY MAN             1   0
201405 Transmitting: JT65B   ZS2ABF FR5DN -09
201413 Transmitting: JT65B   73                            (Shorthand)
201500 10 -11      -454 2   RRR ?

202900 to 205100 ZS2ABF was -7 to -19

UTC Date: 2010 Sep 14
---------------------

044900 6 -22 0.3 -81 2 *      FR5DNB ZR5JT KG61         1   0
045100 6 -22 0.3 -94 4 *      FR5DNB ZR5JT KG61         1   0
045500 6 -23 0.3 -121 2 *      FR5DN ZR5JT KG61          1   0
045700 9 -20 0.2 -129 3 *      FR5DN ZR5JT KG61          1   0
045900 2 -24 0.1 -137 4 *      FR5DN ZR5JT KG61          1   0
050300 3 -24 0.2 -143 4 *      FR5DN ZR5JT KG61          1   0
050700 9 -19 0.3 -145 3 *      FR5DN ZR5JT KG61          1   0
051100 5 -24 0.3 -145 1 *      FR5DN ZR5JT KG61          1   0
051300 6 -22 0.1 -143 3 *      FR5DN ZR5JT KG61          1   0

054500 4 -14 0.1 -347 3 *      CQ ZS2ABF KF37            1   0
054900 5 -22 -0.1 -390 7 *      CQ ZS2ABF KF37            1   0
060100 6 -10 0.0 -519 7 #      FR5DN ZS2ABF KF37   OOO   1   0
060300 7 -10 -0.0 -544 4 #      FR5DN ZS2ABF KF37   OOO   1   0

135100 11   -2 0.2 -70 3 *      FR1GZ ZS2GK KF47          1   0
135300 17   -1 0.1 -70 3 *      FR1GZ ZS2GK KF47          1   0
135500 12   -4 0.3 -70 3 *      FR1GZ ZS2GK KF47          1   0
135700 9   -3 0.2 -67 3 *      FR1GZ ZS2GK KF47          1   0
135900 9   -6 0.1 -65 1 *      FR1GZ ZS2GK KF47          1   0
140100 15   -2 0.3 -124 3 *      FR1GZ ZS2GK KF47          1   0
140100 2 93/105                  FR5DN ZS5LEE KG50         1   0
140300 16   -7 0.2   59 5 *      FR1GZ ZS2GK KF47          1   0
140500 18   -3 0.2   59 3 *      FR1GZ ZS2GK KF47          1   0
140700 13   -9 0.1   59 3 *      FR1GZ ZS2GK KF47          1   0
140900 10 -16 0.1   62 3 *      FR1GZ ZS2GK KF47          1   0

141500 5 -15 0.2 -180 3 *      FR5DN ZS2ABF KF37         1   0
141611 Transmitting: JT65B   ZS2ABF FR5DN LG78 OOO
141700 7 -20 0.2 -89 3 *      FR5DN ZS2ABF KF37         1   0
141900 7 -18 -0.0 -100 1 #      FR5DN ZS2ABF KF37   OOO   1   0
141900 2 93/105                  FR5DN ZS5LEE -06          1   0
142008 Transmitting: JT65B   RO                            (Shorthand)
142405 Transmitting: JT65B   73                            (Shorthand)


162500 10   -5 0.4   38 3 *      FR5DN ZS2GK R-06          1   0
162700 12   -8 0.5   40 2 *      FR5DN ZS2GK R-05          1   0
162900 15   -4 0.5   40 3 *      FR5DN ZS2GK R-07          1   0
163100 19   -4 0.4   40 4 *      FR5DN ZS2GK R-06          1   0
163300 12   -5 0.6   43 3 *      FR5DN ZS2GK R-05          1   0
163300 2 93/105                  FR5DN ZS5LEE KG50         1   0
163500 19   -3 0.3   46 2 *      FR5DN ZS2GK R-06          1   0
163500 2 93/105                  FR5DN ZS2GK R-06          1   0

UTC Date: 2010 Sep 16
---------------------

073700 15 -15 -0.1   81 3 *      FR5DN ZS5DJ -07           1   0
073900 6 -24 -0.1   81 4 *      FR5DN ZS5DJ -07           1   0
074100 9 -18 -0.1   78 3 *      FR5DN ZS5DJ -07           1   0
074238 Transmitting: JT65B   ZS5DJ FR5DN LG78 OOO
074300 12 -18 -0.0   73 2 *      FR5DN ZS5DJ -07           1   0
074500 5 -22 0.1   70 4 *      FR5DN ZS5DJ -07           1   0
074500 2 93/105                  FR5DN ZS5LEE -06          1   0
074700 4 -22 0.2   62 4 *      FR5DN ZS5DJ -07           1   0
074700 2 93/105                  FR5DN ZS5LEE -06          1   0
074806 Transmitting: JT65B   73 DAVE                       (Shorthand)



10-Some comments

Equipment at FR5DN :

On 2m:
In "beacon mode", 70-80w out into 17el F9FT-13dbd yagi at 6.5m above ground.
Old PC dedicated to the 2m station for digital modes and AIS receiver (modified FT-2500M).
For qso, i can use up to 120w out max in shack
Mast mounted LNA with BF981 feed through coax, no measurement on NF.
Coax is a low loss rigid coax LCF12-50, with some ecoflex 10.
I use separate TX and RX lines, which make things much more flexible, RX line is standard RG-213.
RX is Kenwood R-5000.
TRX for beacon and qso is dedicated Kenwood TR-9000.

Again, these qso are in reach of medium to small stations for sure!

On 70cms:

I was running a single 21 el yagi at 9.5m above ground.
Low loss coax, mixed length of hardline 7/8 and some length of lcf12-50 and LCF14-50.
Power was 40w in-shack.
Mast mounted LNA 33db gain, 0.3db NF. Loss before LNA is around 0.9db!
RX is separated rx : LT70s converter with FT-990, 28Mhz IF.

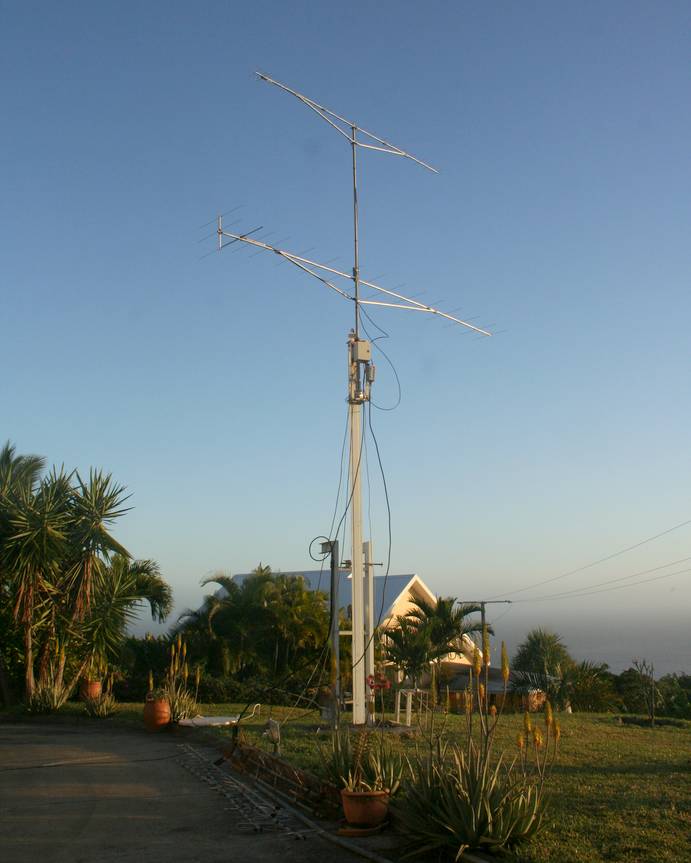

The antennas used for the qsos:

Tks to All, and see you next opening !

Back to TROPO page
