Opening of 11/12-09-2011 - ZS5Y

Opening of 11/12-09-2011 - ZS5Y - FR5DN 2m qso

The general situation :

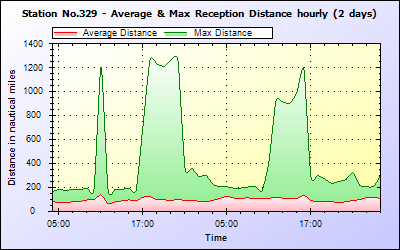

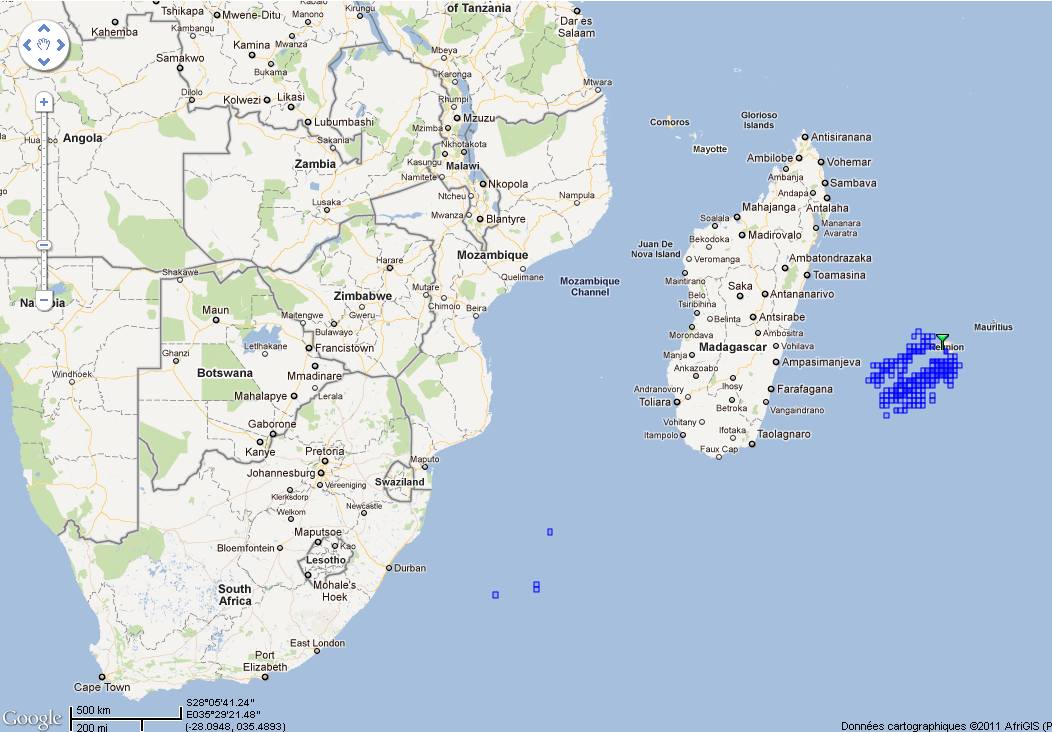

1-AIS RX


FR graphstation-20110911-05z-to-20110913-03z.png

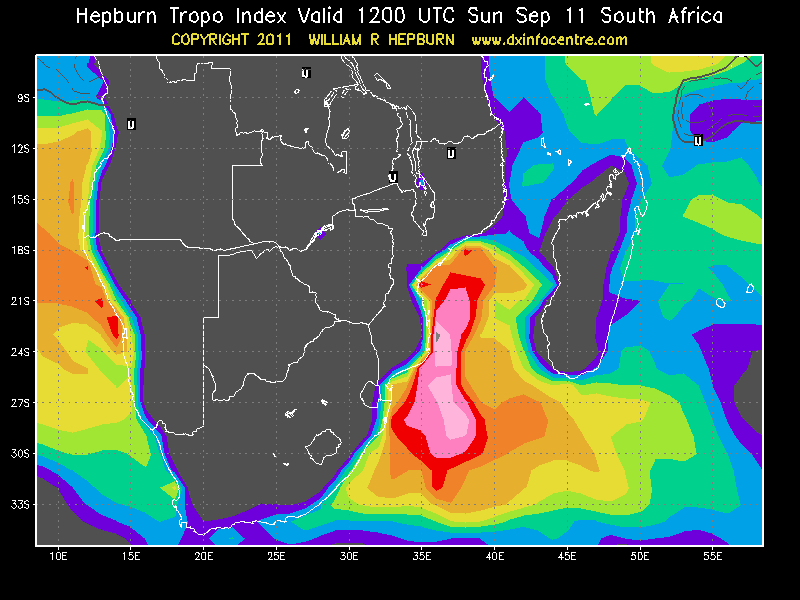

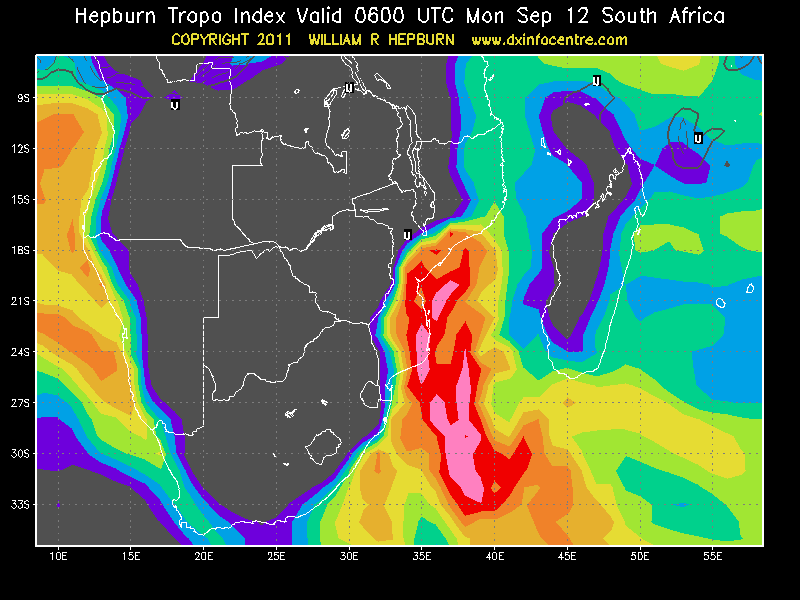

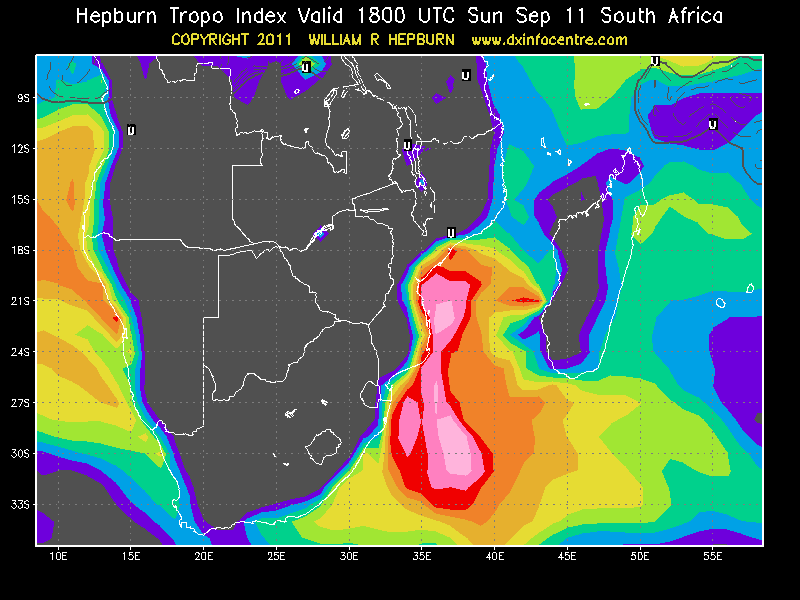

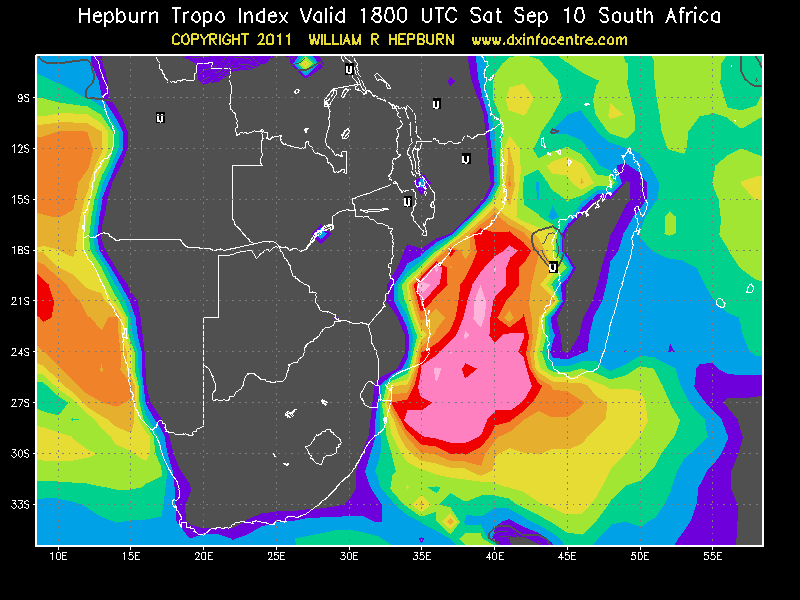

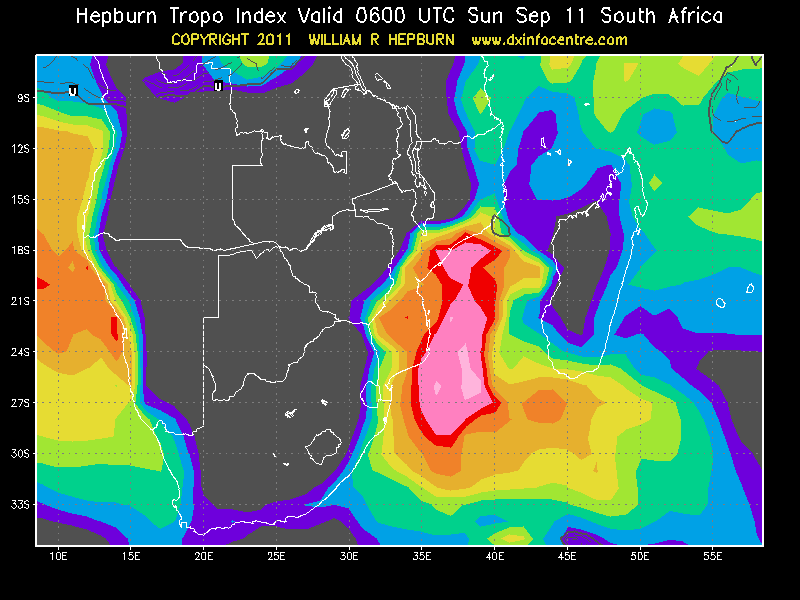

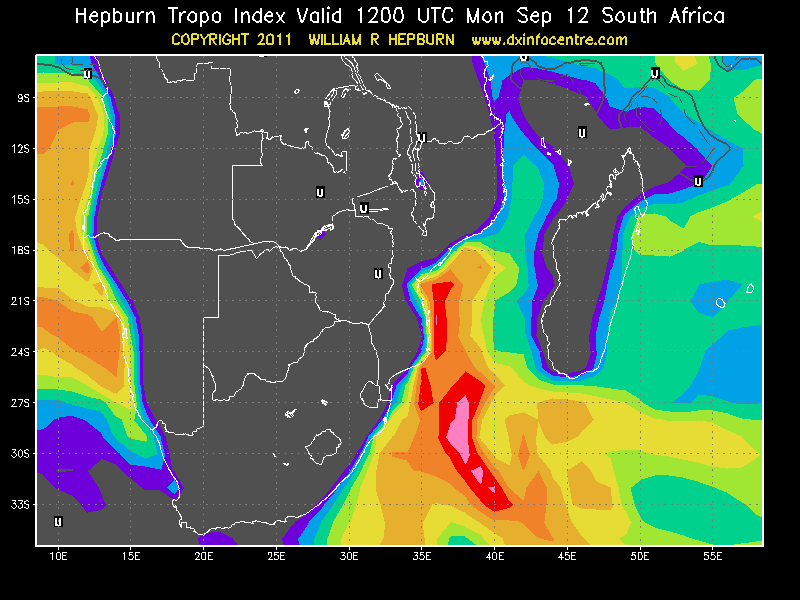

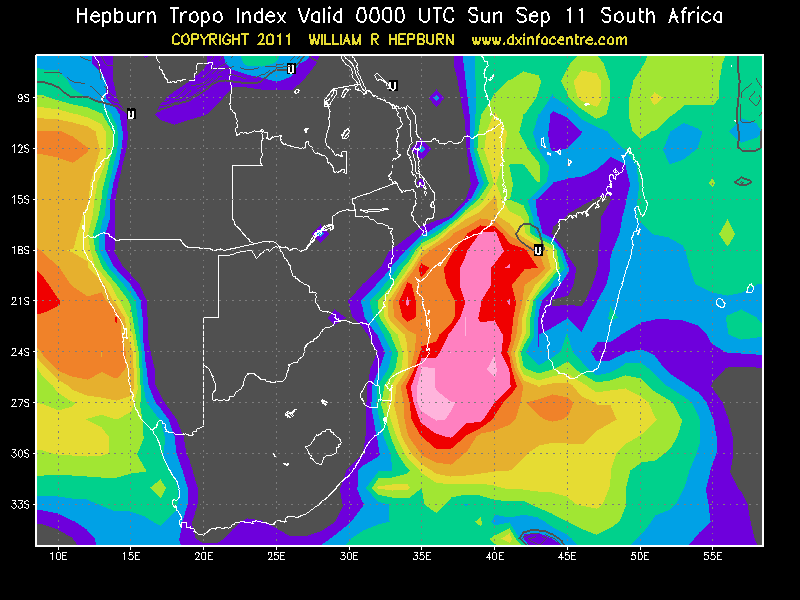

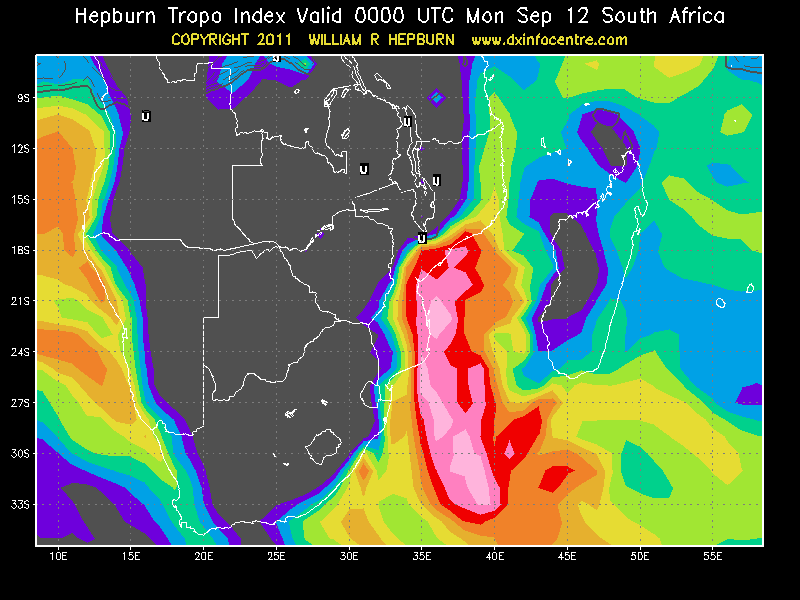

2-The Hepburn predictions

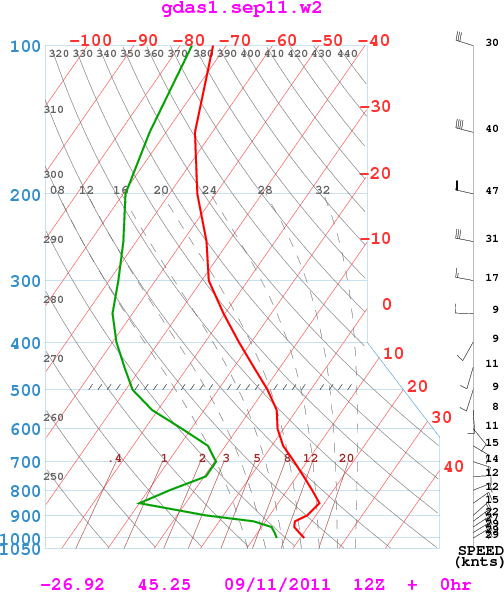

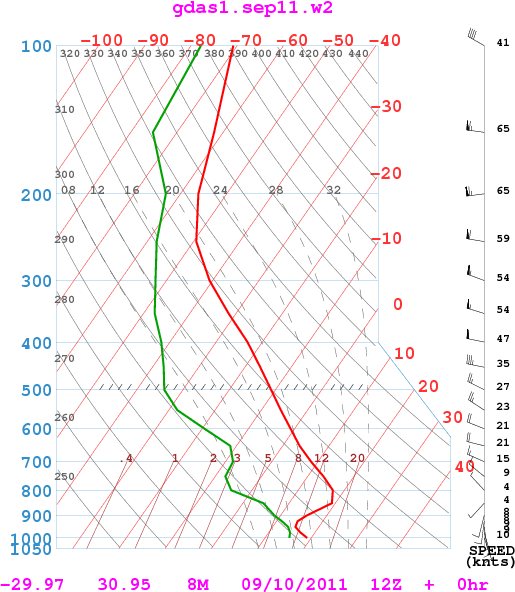

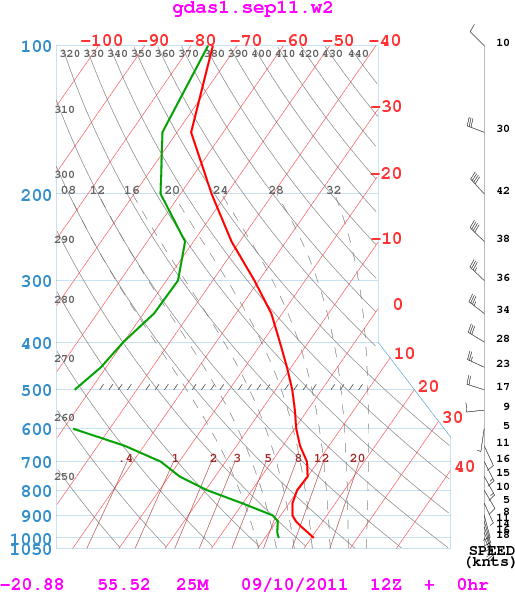

3-The radiosounding data (PREDICTED DATA from NOAA Air Resources Laboratory)

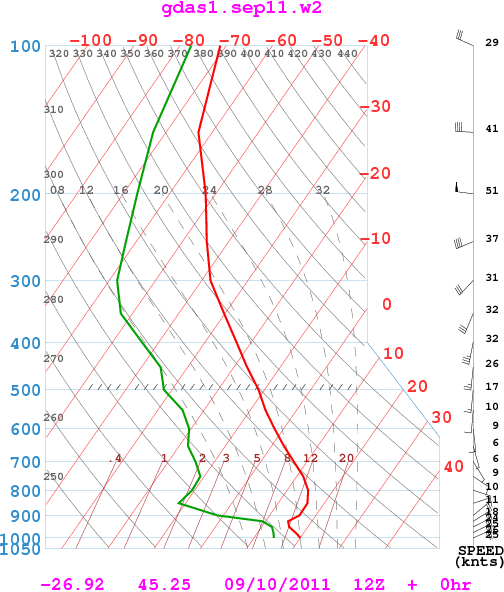

68588-DURBAN-2011-09-10-12Z_profile.gif	SOUTH-5R8-2011-09-10-12Z.gif	61980-SAINT-DENIS-FR-2011-09-10-12Z_profile.gif

68588-DURBAN-2011-09-11-12Z_profile.gif	SOUTH-5R8-2011-09-11-12Z.gif	61980-SAINT-DENIS-FR-2011-09-11-12Z_profile.gif

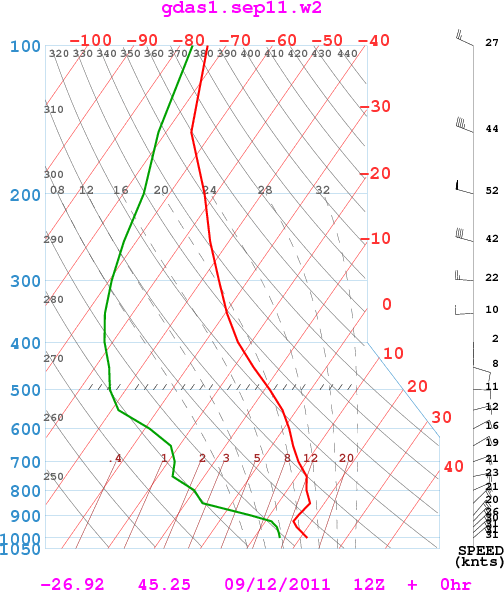

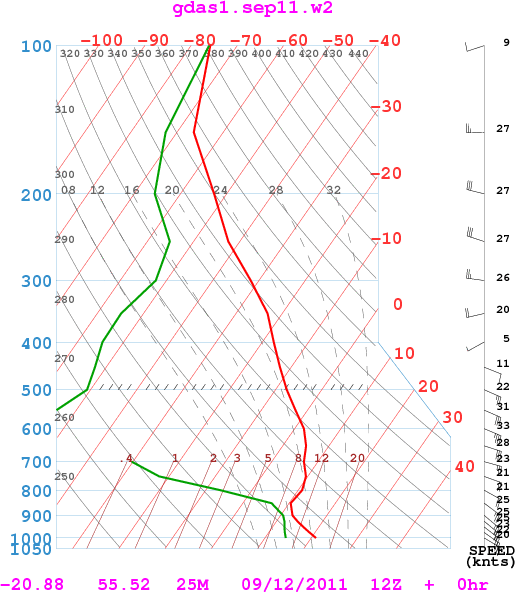

68588-DURBAN-2011-09-12-12Z_profile.gif	SOUTH-5R8-2011-09-12-12Z.gif	61980-SAINT-DENIS-FR-2011-09-12-12Z_profile.gif

4-The predicted data from NOAA Air Resources Laboratory - GDAS1 Profile

HEIGHT DT/DZ TDIFF CRITICAL INVERSION 385. -.001 -0.2 606. 0.001 0.2 831. 0.008 1.8 1064. 0.015 3.5 ** 1553. 0.018 8.6 2072. 0.007 3.5 2618. 0.002 1.3 3194. 0.001 0.8 3800. 0.002 1.2 4443. 0.003 2.0 5131. 0.003 2.1 5870. 0.003 2.5 6670. 0.003 2.6 7543. 0.003 2.5 8504. 0.001 1.3 9573. 0.002 1.9 10790. 0.004 4.6 12226. 0.008 11.2 14032. 0.011 19.4 16481. 0.011 27.4 20687. 0.027 26560. 0.030 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 422. 0.001 0.2 644. 0.000 0.0 871. 0.005 1.1 1103. 0.017 3.9 ** 1589. 0.010 4.8 2101. 0.007 3.4 2643. 0.004 2.3 3214. 0.003 1.4 3818. 0.002 1.5 4459. 0.003 1.9 5144. 0.003 2.3 5881. 0.004 3.2 6680. 0.003 2.4 7552. 0.004 3.1 8515. 0.003 3.2 9594. 0.003 3.6 10828. 0.006 7.8 12299. 0.007 10.6 14111. 0.006 11.4 16545. 0.012 28.3 20719. 0.026 26578. 0.031 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 412. 0.000 0.0 634. 0.000 0.0 860. 0.001 0.1 1091. 0.003 0.6 1569. 0.006 2.9 ** 2073. 0.008 4.2 2608. 0.011 5.9 3179. 0.006 3.5 3783. 0.004 2.3 4428. 0.005 3.3 5121. 0.006 4.3 5870. 0.006 4.4 6686. 0.005 4.2 7581. 0.005 4.4 8574. 0.005 4.7 9686. 0.003 3.1 10950. 0.002 2.2 12423. 0.003 4.4 14216. 0.004 6.3 16591. 0.012 27.5 20709. 0.028 26528. 0.031 **
68588-DURBAN-2011-09-10-12Z	SOUTH-5R8-2011-09-10-12Z	61980-SAINT-DENIS-FR-2011-09-10-12Z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 327. 0.017 3.2 ** 558. 0.015 3.4 796. 0.005 1.2 1038. 0.001 0.2 1538. 0.001 0.4 2061. 0.002 1.2 2610. 0.001 0.7 3187. 0.001 0.3 3794. 0.002 1.5 4440. 0.003 1.8 5129. 0.003 2.0 5869. 0.003 2.2 6668. 0.002 1.6 7539. 0.002 2.1 8497. 0.002 2.0 9567. 0.003 3.1 10787. 0.003 4.0 12220. 0.007 9.7 14017. 0.011 20.2 16478. 0.014 34.1 20699. 0.025 26574. 0.030 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 434. 0.001 0.2 657. 0.001 0.3 884. 0.007 1.5 1117. 0.018 4.2 ** 1607. 0.012 5.8 2123. 0.003 1.6 2665. 0.003 1.5 3236. 0.002 1.4 3840. 0.002 1.2 4482. 0.004 2.8 5170. 0.006 4.4 5914. 0.004 2.7 6718. 0.002 1.8 7593. 0.002 1.9 8557. 0.002 2.4 9634. 0.003 3.3 10868. 0.007 8.3 12332. 0.005 7.8 14135. 0.007 13.0 16553. 0.011 26.6 20714. 0.027 26561. 0.031 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 419. 0.000 -0.1 642. 0.001 0.1 868. 0.001 0.1 1100. 0.003 0.7 1579. 0.005 2.5 ** 2082. 0.006 3.2 2616. 0.013 6.9 3186. 0.005 2.8 3790. 0.005 2.7 4434. 0.005 3.2 5125. 0.005 3.7 5872. 0.006 4.1 6685. 0.006 4.7 7580. 0.007 6.0 8575. 0.005 4.7 9690. 0.002 2.6 10954. 0.001 1.8 12424. 0.002 3.5 14211. 0.003 5.8 16586. 0.012 28.5 20696. 0.027 26518. 0.032 **

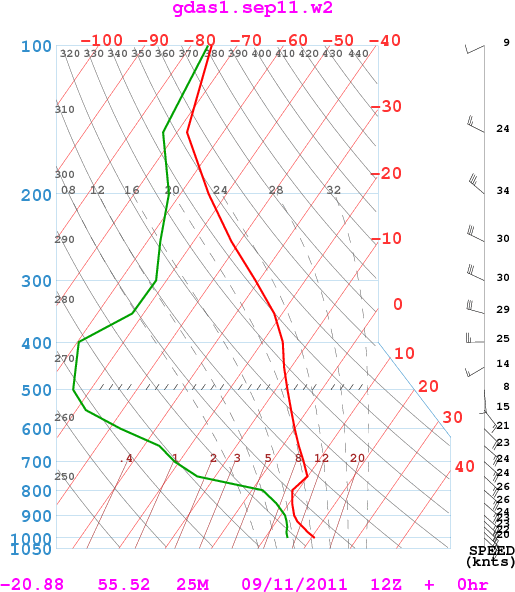

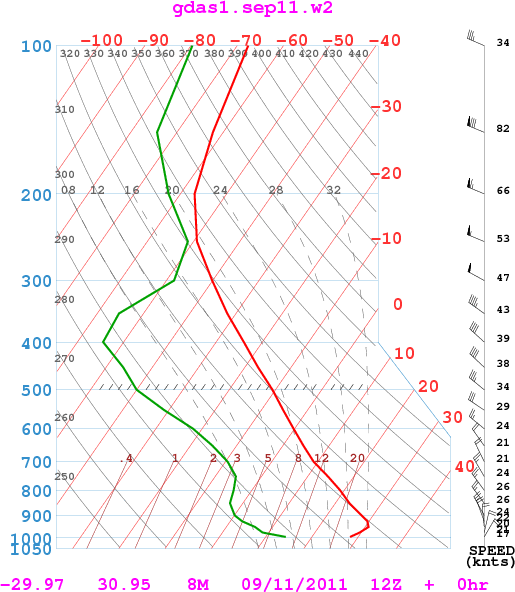

68588-DURBAN-2011-09-11-12Z	SOUTH-5R8-2011-09-11-12Z	61980-SAINT-DENIS-FR-2011-09-11-12Z
HEIGHT DT/DZ TDIFF CRITICAL INVERSION 338. -.005 -1.1 560. 0.004 0.8 787. 0.004 1.0 1020. 0.008 1.9 1508. 0.018 8.8 ** 2027. 0.007 3.5 2573. 0.003 1.5 3148. 0.002 0.9 3754. 0.002 1.1 4398. 0.003 1.9 5086. 0.004 2.5 5825. 0.003 2.3 6626. 0.003 2.3 7499. 0.002 2.1 8459. 0.003 2.5 9536. 0.004 4.3 10762. 0.003 3.3 12193. 0.003 4.0 13976. 0.013 23.5 16444. 0.016 38.6 20695. 0.026 26560. 0.029 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 414. 0.001 0.2 637. 0.001 0.1 864. 0.003 0.7 1097. 0.011 2.5 ** 1583. 0.012 5.6 2096. 0.005 2.4 2638. 0.006 3.5 3211. 0.003 1.7 3818. 0.004 2.7 4465. 0.005 3.3 5159. 0.004 3.0 5905. 0.002 1.8 6709. 0.001 1.2 7584. 0.002 1.8 8549. 0.004 3.7 9632. 0.005 5.4 10874. 0.005 6.3 12344. 0.006 9.1 14149. 0.005 9.1 16553. 0.011 25.7 20705. 0.027 26548. 0.031 **	HEIGHT DT/DZ TDIFF CRITICAL INVERSION 414. 0.000 -0.1 636. 0.000 0.0 863. 0.000 0.1 1094. 0.001 0.3 1573. 0.005 2.5 ** 2077. 0.011 5.8 2614. 0.008 4.3 3182. 0.006 3.2 3788. 0.007 4.5 4437. 0.006 3.8 5131. 0.004 2.5 5879. 0.004 2.8 6691. 0.005 3.8 7581. 0.005 4.5 8569. 0.005 5.3 9678. 0.003 3.1 10938. 0.002 2.3 12410. 0.004 6.3 14207. 0.004 6.4 16588. 0.011 25.4 20685. 0.028 26504. 0.032 **

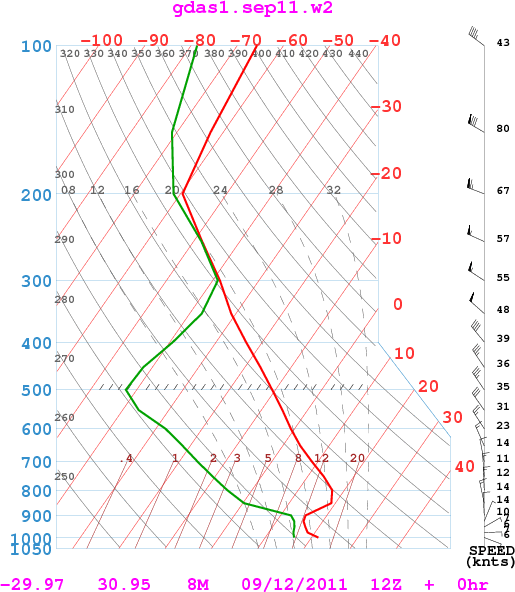

68588-DURBAN-2011-09-12-12Z	SOUTH-5R8-2011-09-12-12Z	61980-SAINT-DENIS-FR-2011-09-12-12Z

Real data only available :

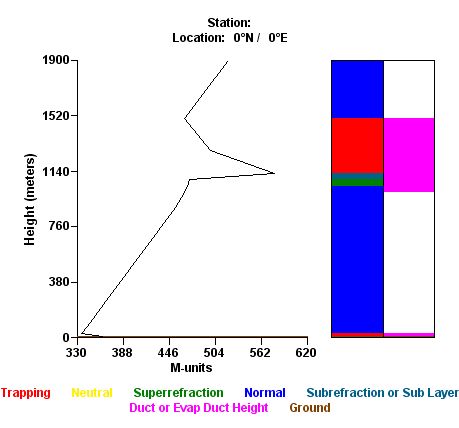

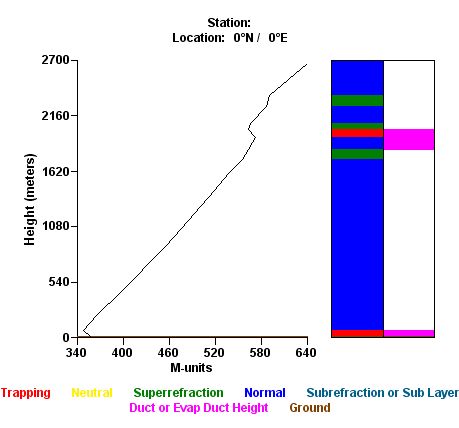

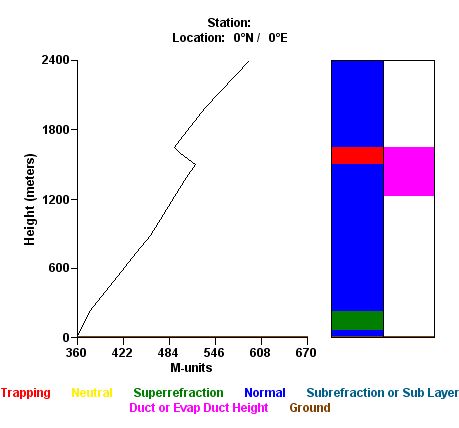

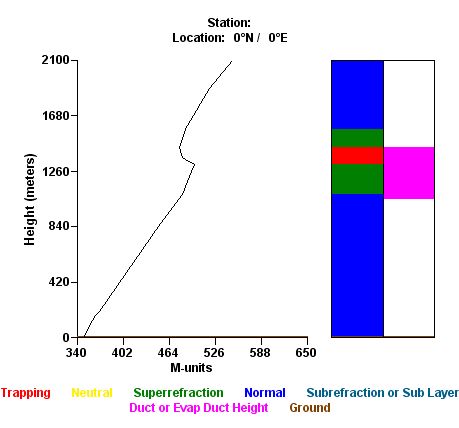

5R8	67197 FMSD Fort-Dauphin Observations at 12Z 10 Sep 2011		67197 FMSD Fort-Dauphin Observations at 00Z 11 Sep 2011.jpg	67197 FMSD Fort-Dauphin Observations at 12Z 11 Sep 2011.jpg	67197 FMSD Fort-Dauphin Observations at 00Z 12 Sep 2011.jpg

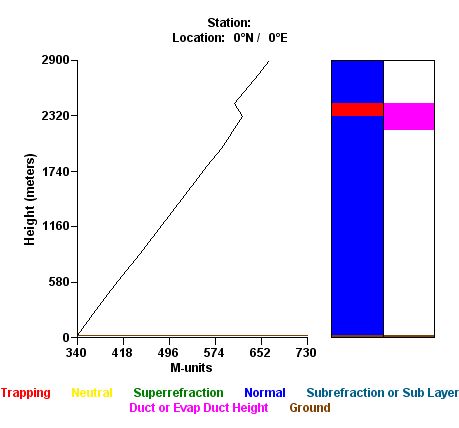

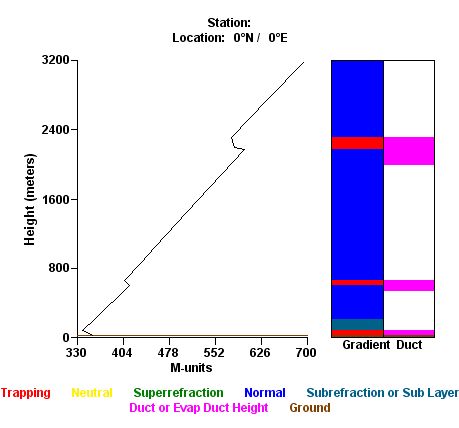

FR	61980 FMEE Saint-Denis Observations at 12Z 10 Sep 2011.jpg			61980 FMEE Saint-Denis Observations at 12Z 11 Sep 2011.jpg

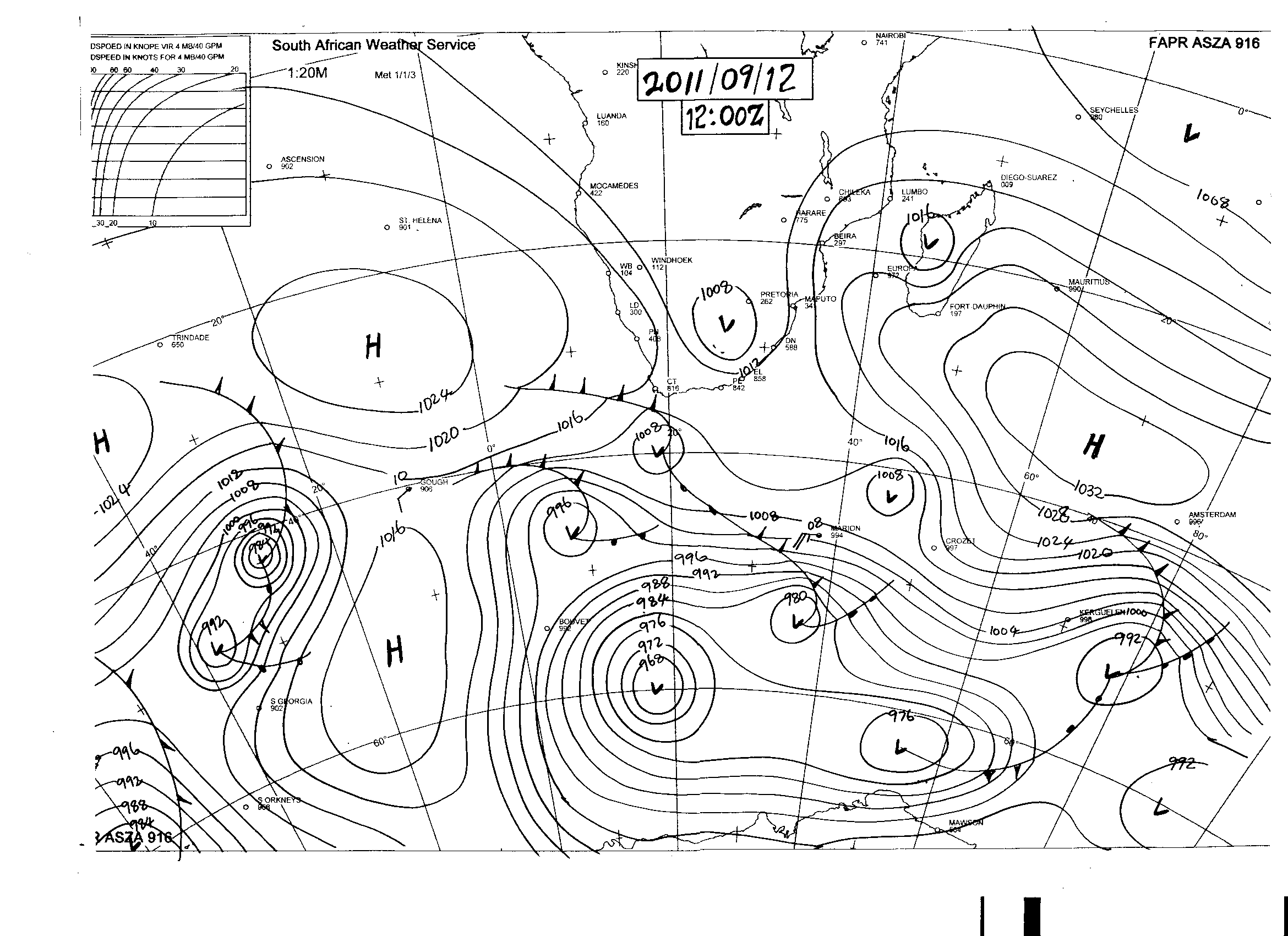

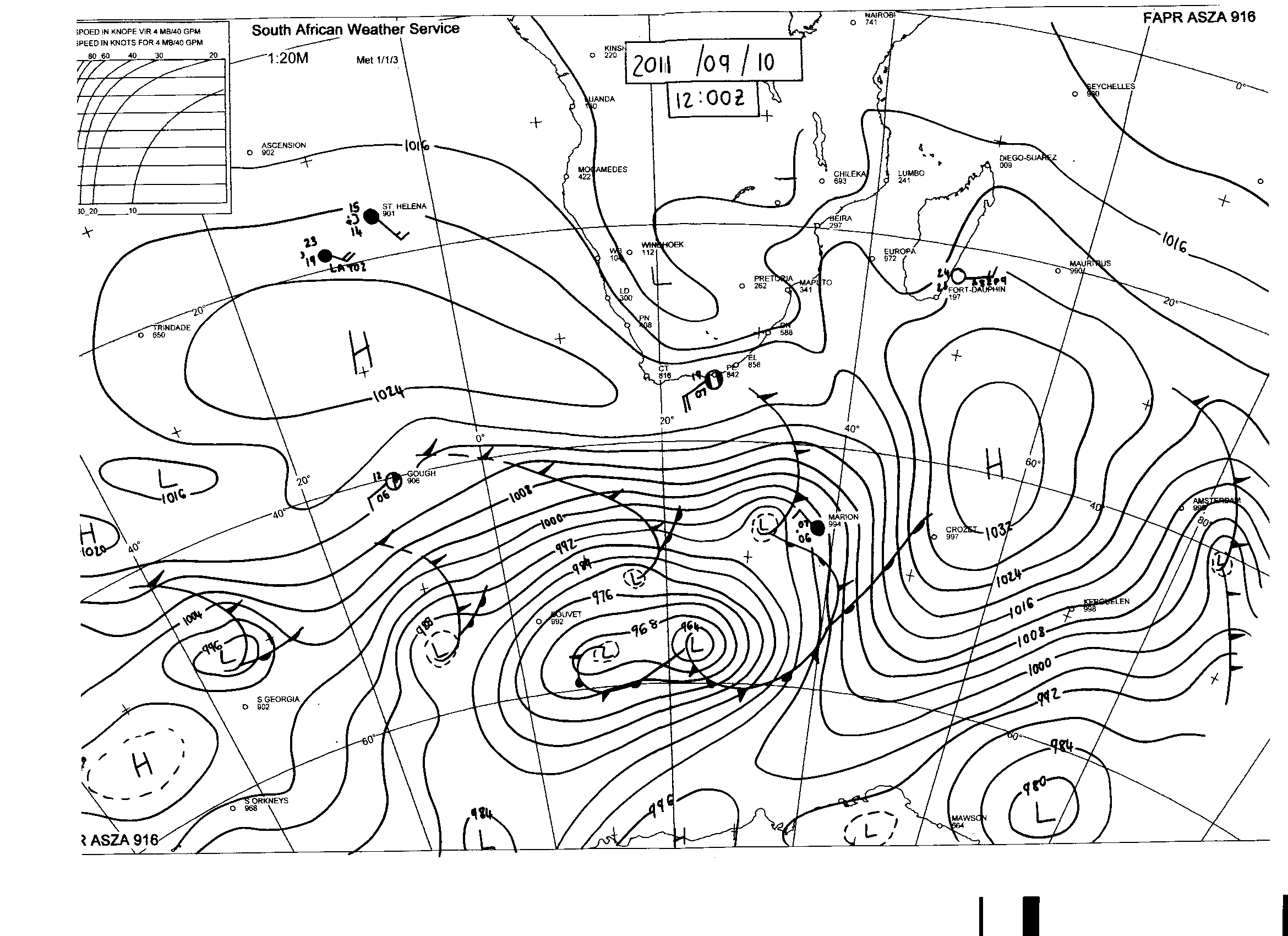

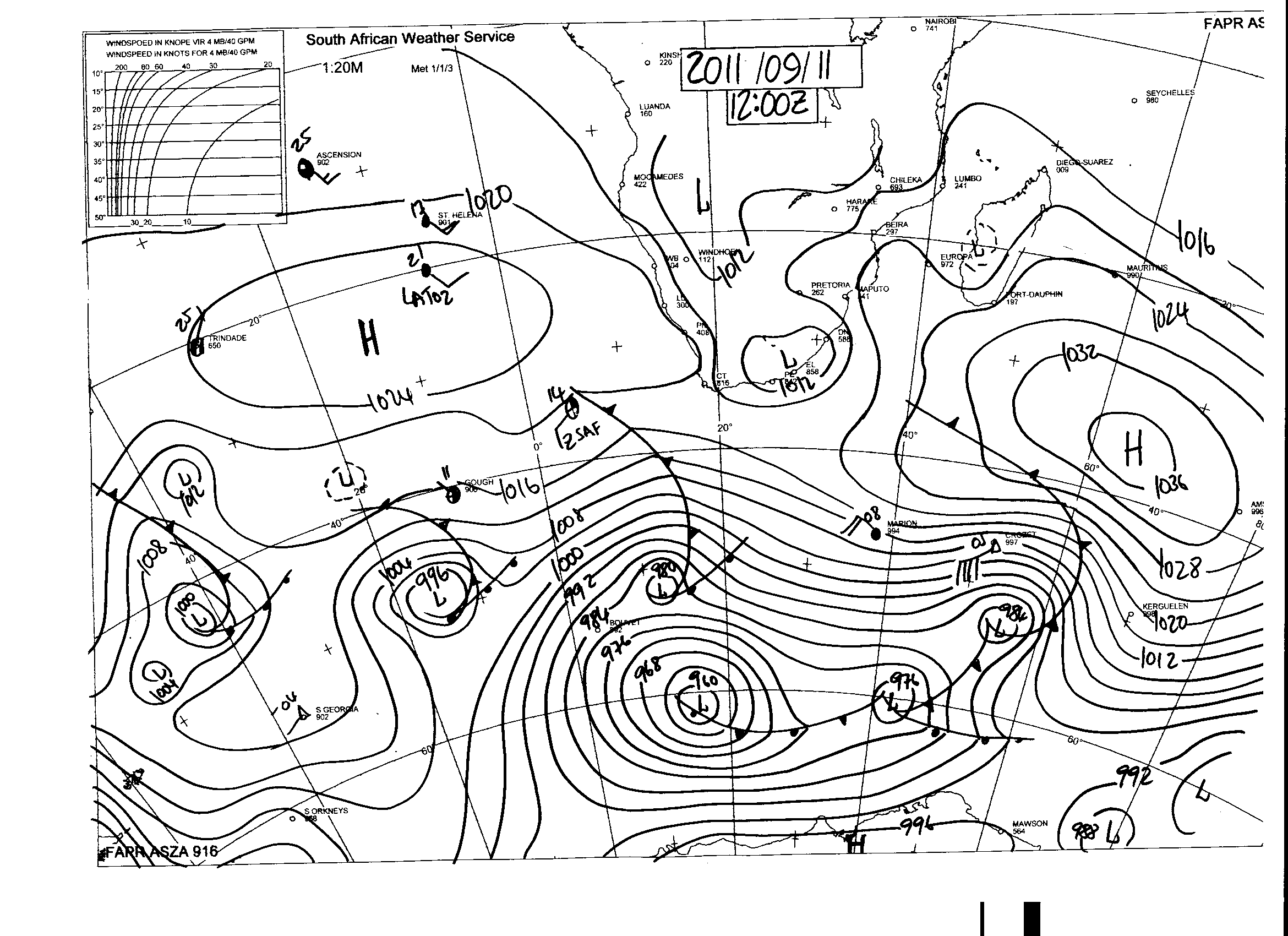

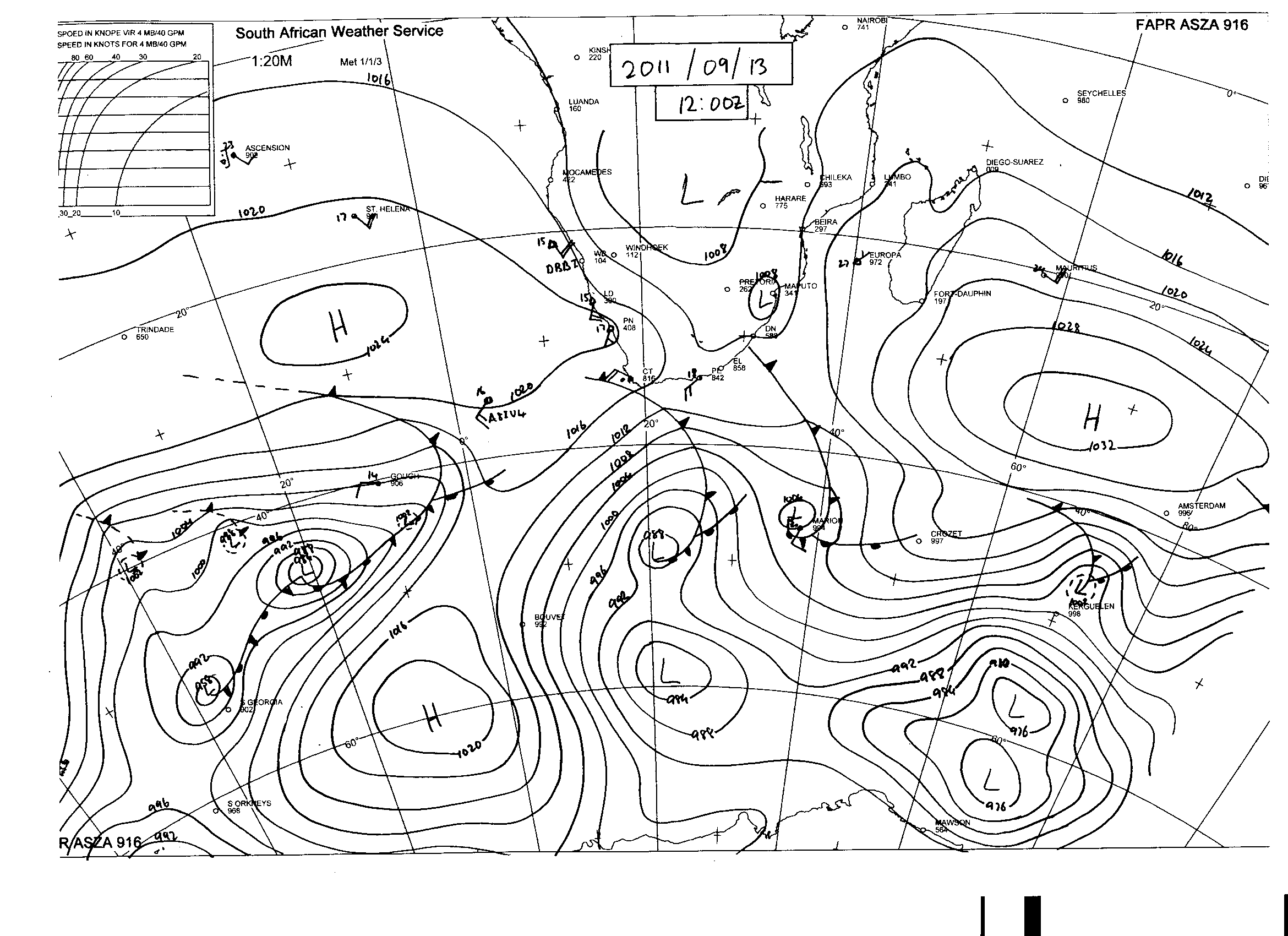

5-The surface pressure chart

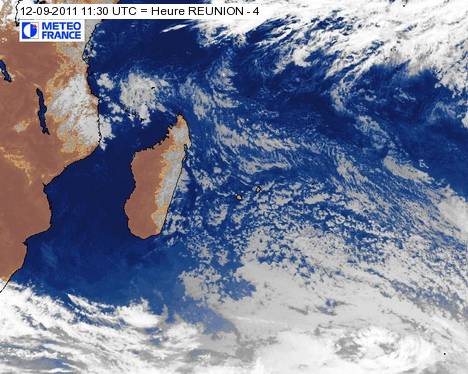

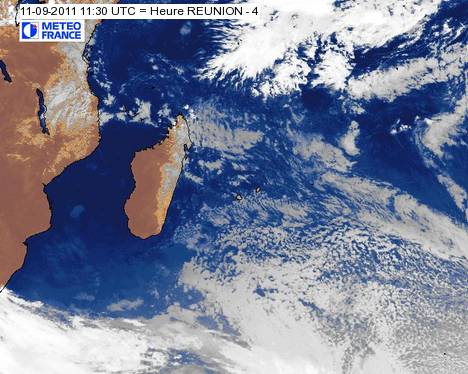

6-The visible maps

7-The QSO's

Tks to Derek, ZS5Y, who was on immediatly after my email to the ZS list!


111400  4  -21 -0.2  175  4 *      CQ FR5DN LG78             1  10
111600  5  -21 -0.1  175  4 *      CQ FR5DN LG78             0  10
111800  5  -22 -0.1  183  2 #      ZS5Y FR5DN LG78     OOO   0  10
112000 10  -16       196  3   RRR
112200 10  -21       213  3   RRR
112400 10  -23       229  3   73
112600 10  -21       242  3   73
113000 15  -10 -1.0  269  2 *      CQ FR5DN LG78             1  10
113400  4  -17 -0.8  280  2 *      CQ FR5DN LG78             1  10
113600  4  -12 -0.8  285  3 *      CQ FR5DN LG78             1  10
113800  6  -14 -0.8  285  6 *      CQ FR5DN LG78             1  10
114000  0  -14 -1.0  283  2 *      CQ FR5DN LG78             1  10
114200  0  -19 -0.0  283  4 *      CQ FR5DN LG78             1  10
114400  3  -10  0.0  283  6 *      CQ FR5DN LG78             1  10
114600  3  -10  0.0  283  4 *      CQ FR5DN LG78             1  10
114800  2  -12  0.0  283  2 *      CQ FR5DN LG78             1  10
115000  4  -10 -0.1  283  3 *      CQ FR5DN LG78             1  10
115200  1  -22 -0.1  277  6 *      CQ FR5DN LG78             1  10
115400  1   -8 -0.1  277  4 *      CQ FR5DN LG78             1  10
115600  0  -16  0.1 -110  4 *      CQ FR5DN LG78             1  10
115800  4  -17 -0.1 -110  1 *      CQ FR5DN LG78             1  10
120200  2  -17 -0.1 -116  4 *      CQ FR5DN LG78             1  10
120400  1  -20 -0.1 -116  5 *      CQ FR5DN LG78             1  10
120600  1  -27  0.1 -113  3 *      CQ FR5DN LG78             0  10
120800  0  -22  0.1 -116  4 *      CQ FR5DN LG78             1  10

121000  1  -24 -0.1 -113  3 *      CQ FR5DN LG78             0  10
121100  0  -33  3.1 -145  2
121200  0  -29 -0.1 -113  3 *      CQ FR5DN LG78             0  10
121300  0  -33 -0.8 -118 23
121400  0  -22 -0.1 -113  4 *      CQ FR5DN LG78             1  10
121500  0  -33  5.5 -129  3
121600  2  -21 -0.0 -118  3 *      CQ FR5DN LG78             0  10
121700  0  -33 -0.8 -145 34
121800  1  -21 -0.0 -116  2 *      CQ FR5DN LG78             0  10
121900  0  -33 -1.7  -89 31
122000  2  -21 -0.2 -118  5 *      CQ FR5DN LG78             0  10
122100  0  -33  8.1 -124 16
122200  0  -18 -0.2 -118  4 *      CQ FR5DN LG78             1  10
122300  0  -33  9.0  -81 14
122400  3  -16 -0.2 -118  6 *      CQ FR5DN LG78             1  10
122500  0  -30  3.1 -151 37 #
122600  3  -22  0.1 -118  4 *      CQ FR5DN LG78             1  10
122700  0  -33 -1.2 -137 42
122800  5  -16  0.1 -118  3 *      CQ FR5DN LG78             1  10
122900  0  -33  5.9 -127 57
123000  1  -20  0.1 -121  3 *      CQ FR5DN LG78             0  10
123100  0  -33  5.9 -161 23
123200  4  -18  0.1 -118  2 *      CQ FR5DN LG78             1  10
123300  0  -33  3.6 -108 31
123400  5  -17  0.1 -121  4 *      CQ FR5DN LG78             1  10
123500  0  -30  5.0 -140 54 #
123600  2  -12  0.1 -121  3 *      CQ FR5DN LG78             1  10
123700  0  -33  7.9  -92 50
123800  1  -24 -0.1 -121  3 *      CQ FR5DN LG78             0  10
123900  0  -33  1.2 -100 23
124000  1  -19 -0.1 -124  5 *      CQ FR5DN LG78             1  10
124100  0  -32 -0.6 -170 17 *
124200  1  -20  0.1 -121  5 *      CQ FR5DN LG78             1  10
124300  0  -33  6.4 -151 30
124400  3  -15  0.1 -124  3 *      CQ FR5DN LG78             1  10
124500  0  -33  3.1 -153 23
124600  3  -19  0.2 -121  4 *      CQ FR5DN LG78             1  10
124700  0  -33  7.8 -143 24
124800  3  -17 -0.0 -124  3 *      CQ FR5DN LG78             1  10
124900  0  -33  2.5 -113 20
125000  2  -14 -0.0 -124  4 *      CQ FR5DN LG78             1  10
125100  0  -33 -1.4 -143 51
125200  1  -20  0.1 -121  8 *      CQ FR5DN LG78             1  10
125300  0  -33  4.4 -140 47
125400  1  -18  0.1 -124  4 *      CQ FR5DN LG78             0  10
125500  0  -33  0.5 -140 50
125600  1  -26  0.0 -124  4 *      CQ FR5DN LG78             0  10
125700  0  -33 -0.4 -170 20
125800  2  -22 -0.1 -124  3 *      CQ FR5DN LG78             1  10
125900  0  -33  5.3 -132 27
130000  1  -15 -0.1 -124  3 *      CQ FR5DN LG78             1  10
130100  0  -33  0.5 -170 24
130200  6  -14 -0.1 -124  4 *      CQ FR5DN LG78             1  10
130300  0  -33  7.8 -116 19
130400  4  -21 -0.1 -124  1 *      CQ FR5DN LG78             1  10
130500  0  -33  3.1 -100 39
131000  3  -18  0.1 -124  0 *      CQ FR5DN LG78             1  10
131100  0  -33 -0.4 -167 29
131200  3  -19  0.2 -124  3 *      CQ FR5DN LG78             1  10
131300  0  -33 -0.0 -170 20
131400  2  -20  0.2 -127  5 *      CQ FR5DN LG78             1  10
131500  0  -33  2.3  -97  3
131600  3  -14  0.0 -124  1 *      DE FR5DN/B LG             1   0
131700  0  -33 -0.7 -151 38
131800  3  -15  0.0 -124  5 *      DE FR5DN/B LG             1   0
131900  0  -33 -1.2  -89 21
132200  0  -20  0.0 -127  4 *      DE FR5DN/B LG             1   0
132800  3  -23  0.1 -124  5 *      DE FR5DN/B LG             1   0
132900  0  -32  5.3 -132 43 *

133800  5  -18  0.1 -124  3 *      DE FR5DN/B LG             1   0
133900  0  -33 -0.8  -89 25
134000  5  -16  0.1 -121  2 *      FR5DN/B LG78              1   0

This was the last before the band closed
Im Still in RX for you should the band open again.

73's

Derek
Zs5y

8-Some comments

Equipment at FR5DN :

On 2m:
In "beacon mode", 70-80w out into 17el F9FT-13dbd yagi at 6.5m above ground.
Old PC dedicated to the 2m station for digital modes and AIS receiver (modified FT-2500M).
For qso, i can use up to 120w out max in shack
Mast mounted LNA with BF981 feed through coax, no measurement on NF.
Coax is a low loss rigid coax LCF12-50, with some ecoflex 10.
I use separate TX and RX lines, which make things much more flexible, RX line is standard RG-213.
RX is Kenwood R-5000.
TRX for beacon and qso is dedicated Kenwood TR-9000.

Again, these qso are in reach of medium to small stations for sure!

On 70cms:

I run a single 21 el yagi at 9.5m above ground.
Low loss coax, mixed length of hardline 7/8 and some length of lcf12-50 and LCF14-50.
Power was 40w in-shack.
Mast mounted LNA 33db gain, 0.3db NF. Loss before LNA is around 0.9db!
RX is separated rx : LT70s converter with FT-990, 28Mhz IF.

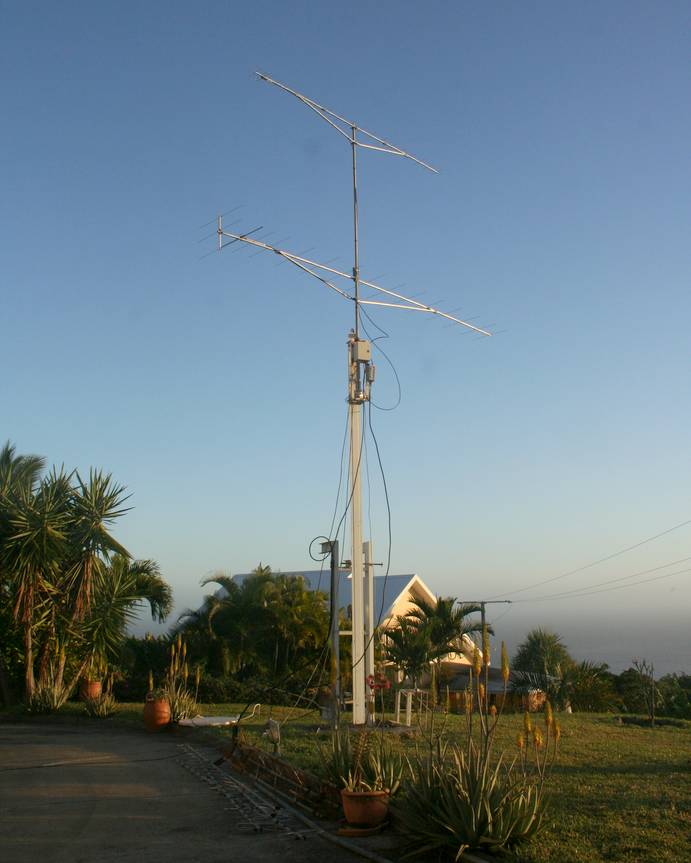

The antennas used for the qsos:

Tks to All, and see you next opening !
