Tropo of 07 August 2019




The general situation :

1-AIS RX

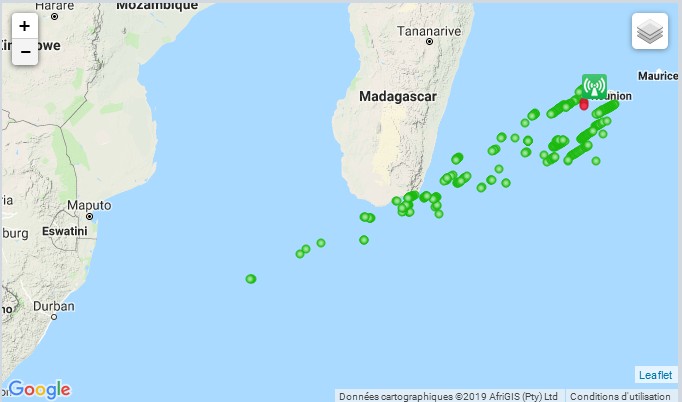

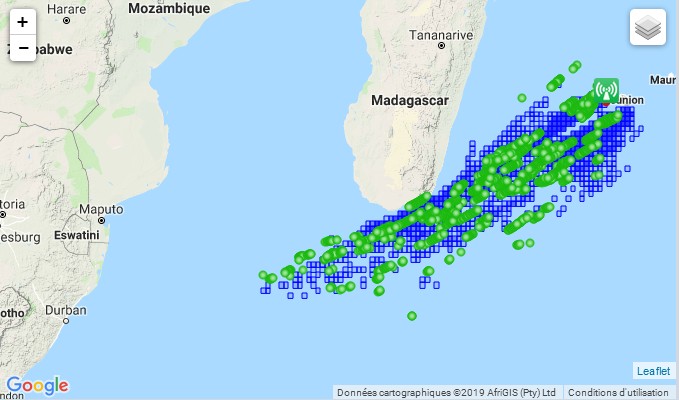

AIS FR5DN 2019-08-06-06z AIS FR5DN 2019-08-07-16z

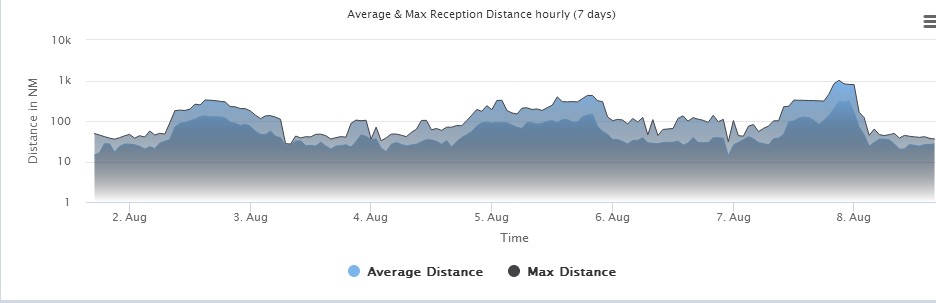

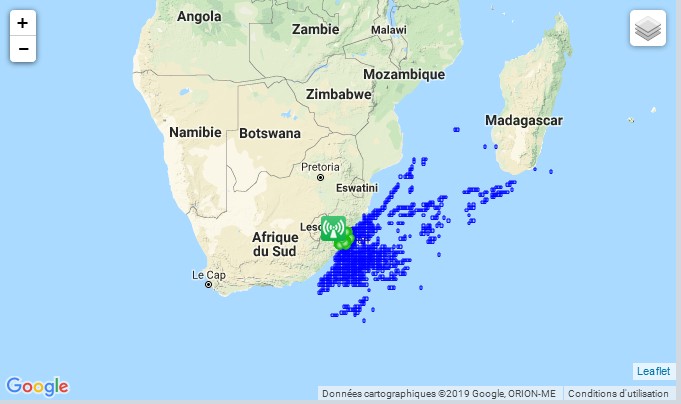

ZS5 AIS , SPOTS RECEIVED IN THE  NIGHT OF 07 TO 08 AUGUST  (BLUE POINTS) ZS5 BEST AIS IN THE NIGHT 07-08 AUGUST 1010 NM.



Not a big tropo, but at least some qso's... very very short common window...

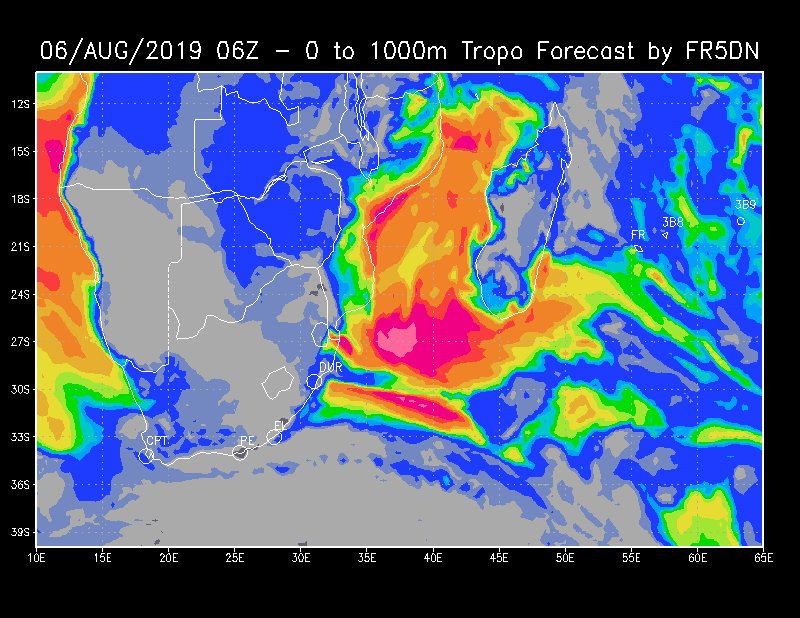

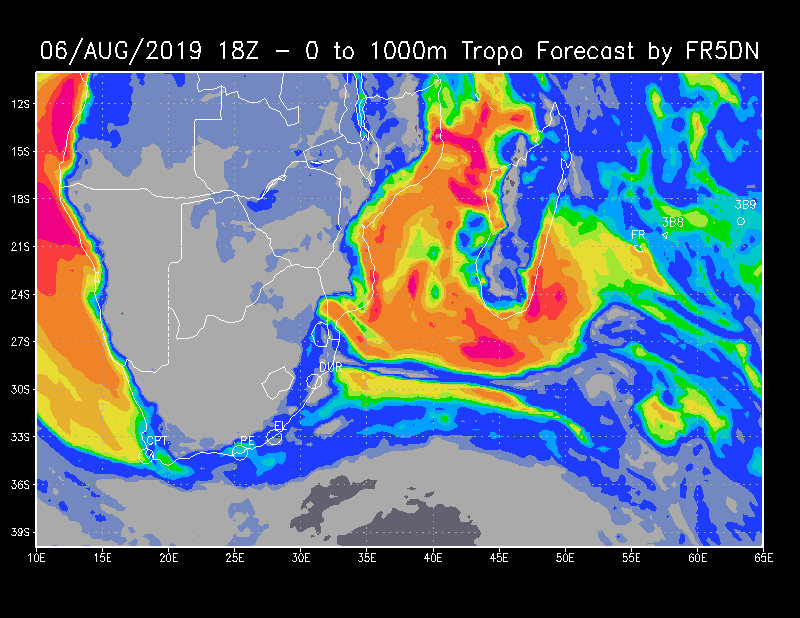

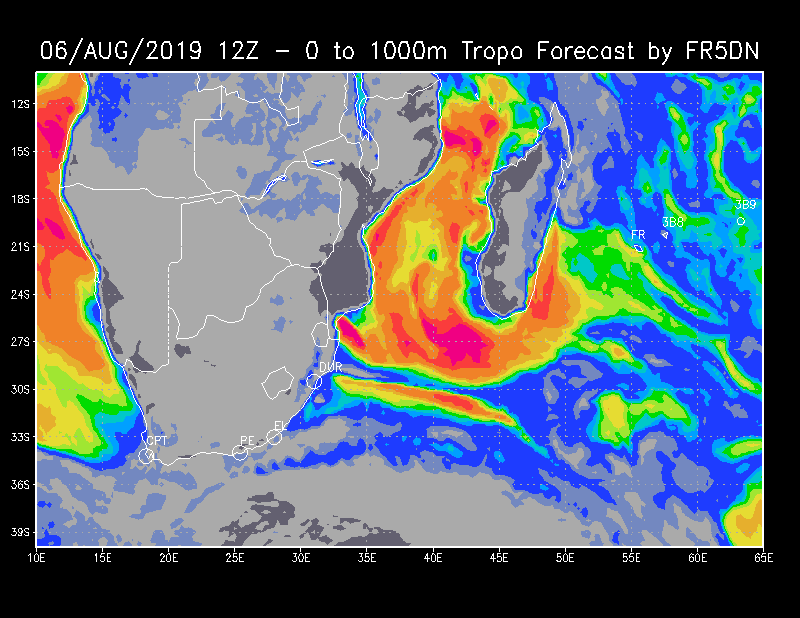

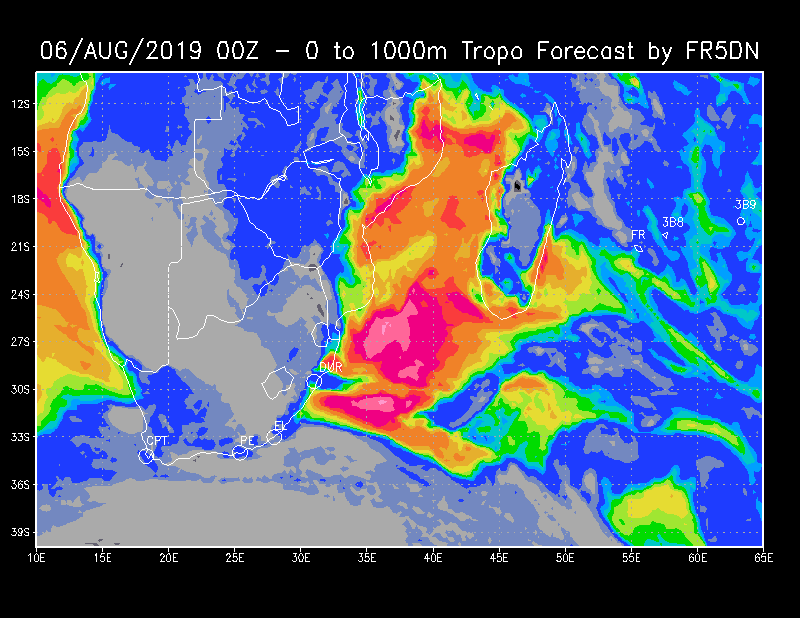

2-The Tropospheric ducting predictions










I lost the maps for the 07 August, day of qso, grrr...

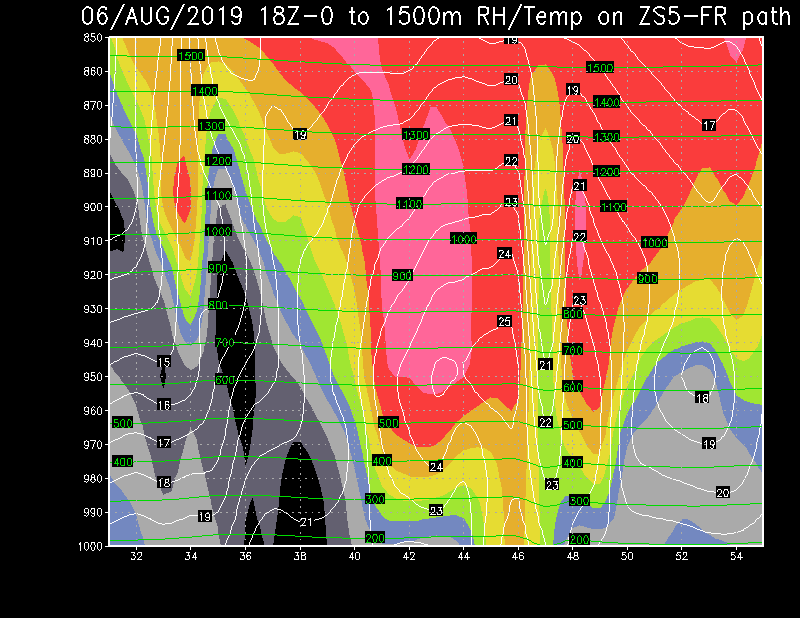

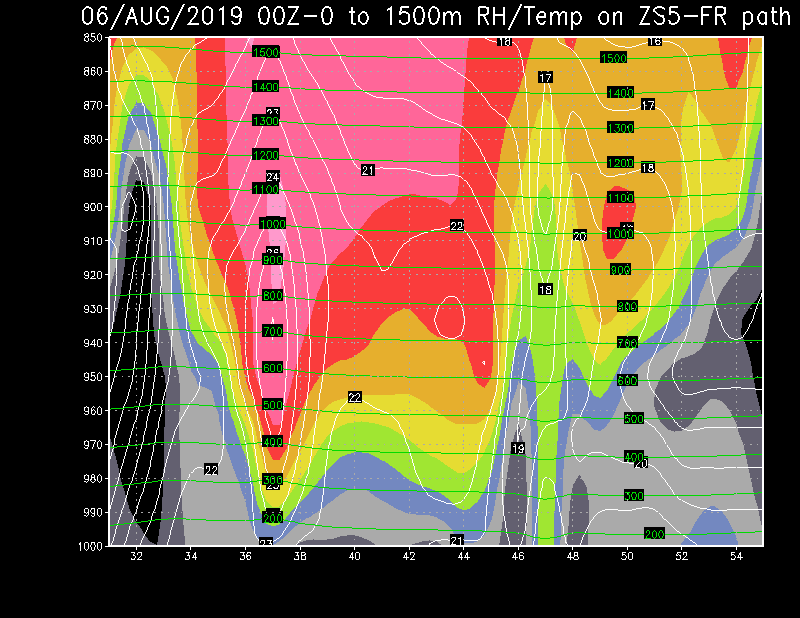

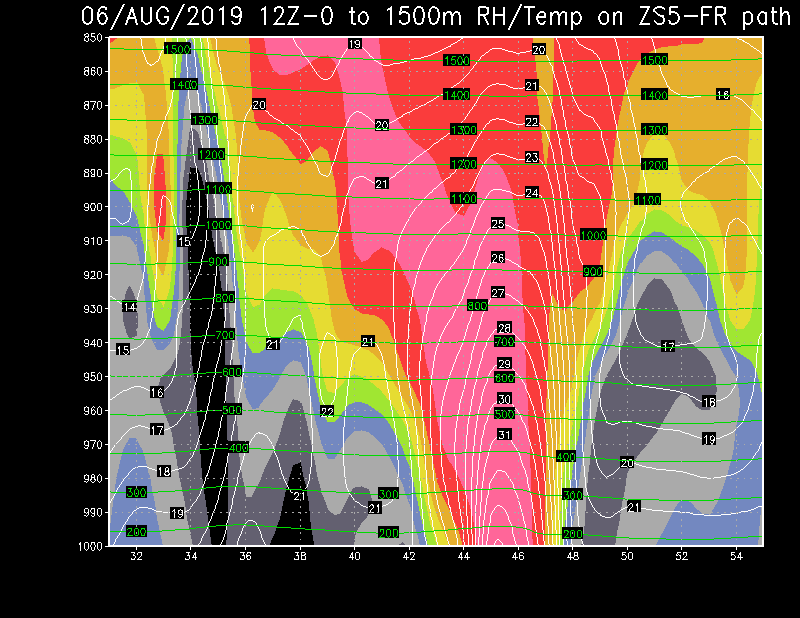

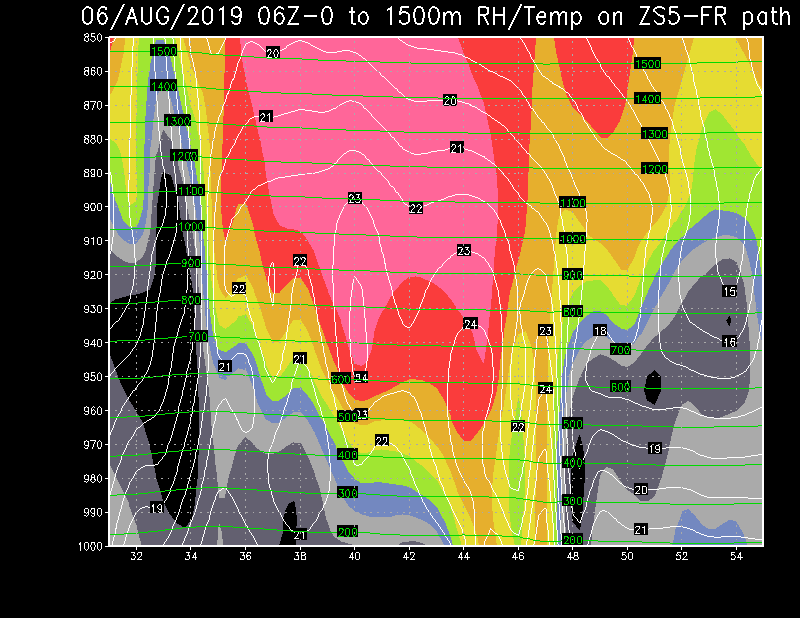

3-The troposphere profile


No data...

4-The surface pressure charts


They can be found here



5-The visible or IR maps - Eumetsat
copyright 2019 EUMETSAT

No picture... pictures lost

7-The reports and some comments

On 07/08:
-1603z ZS5LEE on JT
-1656z ZS5LEE 55 on SSB, got me only 41


8-Equipment at FR5DN :

On 2m:
In "beacon mode", 25-30w or 10w out into 17el F9FT-13dbd yagi at 7m above ground.
Old PC dedicated to the 2m station for digital modes and AIS receiver (modified FT-2500M).
For qso, i can use up to 120w out max in shack
Mast mounted LNA with BF981 feed through coax, no measurement on NF
.
Coax is a  low loss rigid coax  LCF12-50, with some ecoflex 10.
I use separate TX and RX lines, which make things much more flexible, RX line is standard RG-213.
RX is Kenwood R-5000.
TRX for beacon and qso is dedicated Kenwood TR-9000.


On 70cms:

I run a now 4x21 el yagi at 2,5m above ground (lowest antennas)

Low loss coax, mixed length of hardline 7/8 and some length of lcf12-50 and LCF14-50.
Power 40w in-shack, higher if needed.
Mast mounted LNA 33db gain, 0.3db NF. Loss before LNA is around 0,9db.
RX is separated rx : LT70s converter with FT-990, 28Mhz IF.

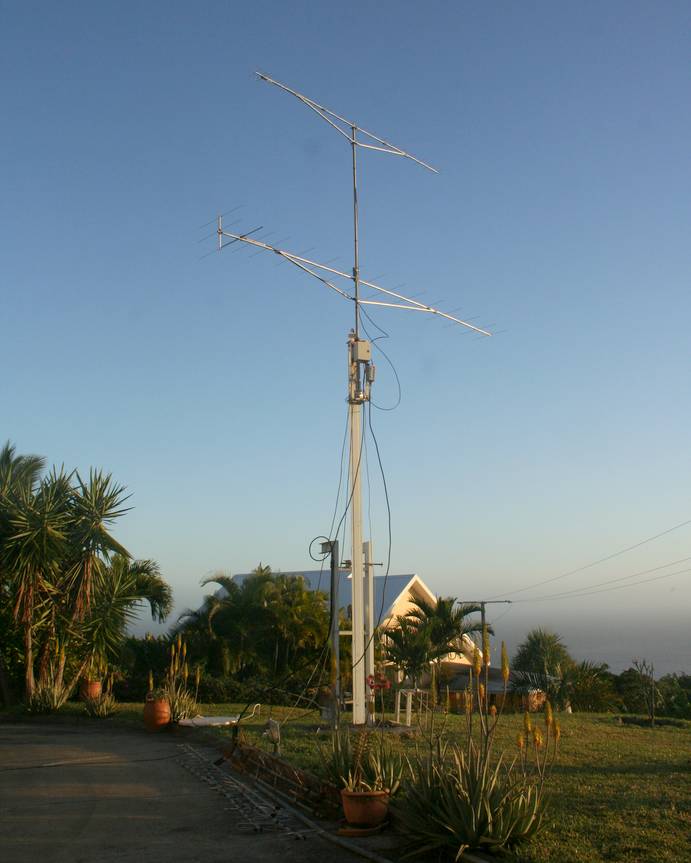

The antennas used for the qsos:





Tks to All, and see you next opening !
