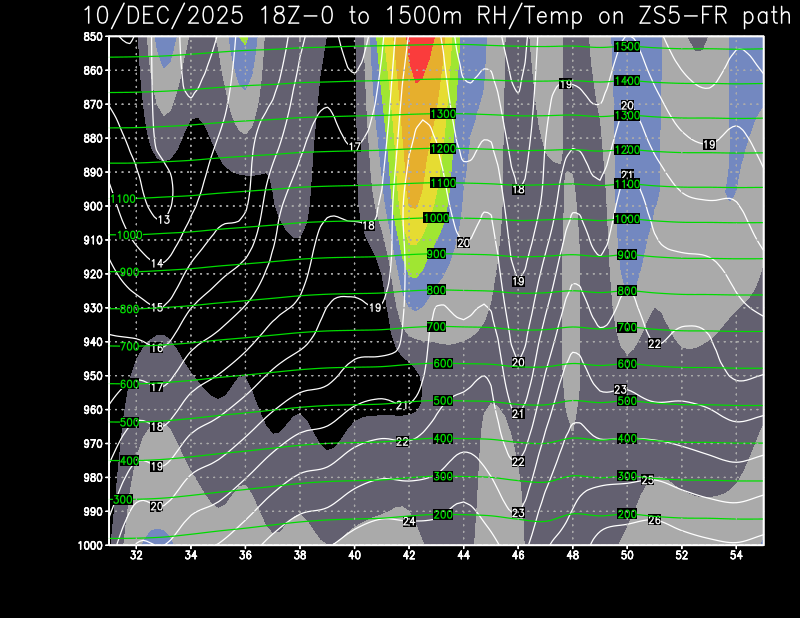

Troposphere vertical view on
ZS5 to FR paths - just a very relative approach...
Grid Analysis and
Display System (GrADS) is used to build
images. Remember, tropo
happens if above a given height , RH decreases and T°
higher
than standard , giving dry/warm area in altitude. Humidity
color scale used in images (%)
(rose - red colors are equivalent to very good
tropo, with RH
decrease, T° increase, and if not similar scale with lower
height air
mass)
