432Mhz EME antennas at FR5DN

Back to RADIO page

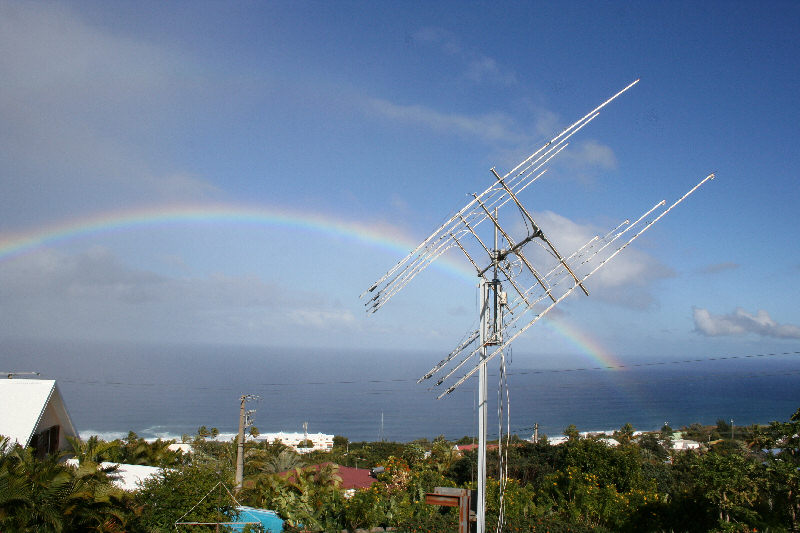

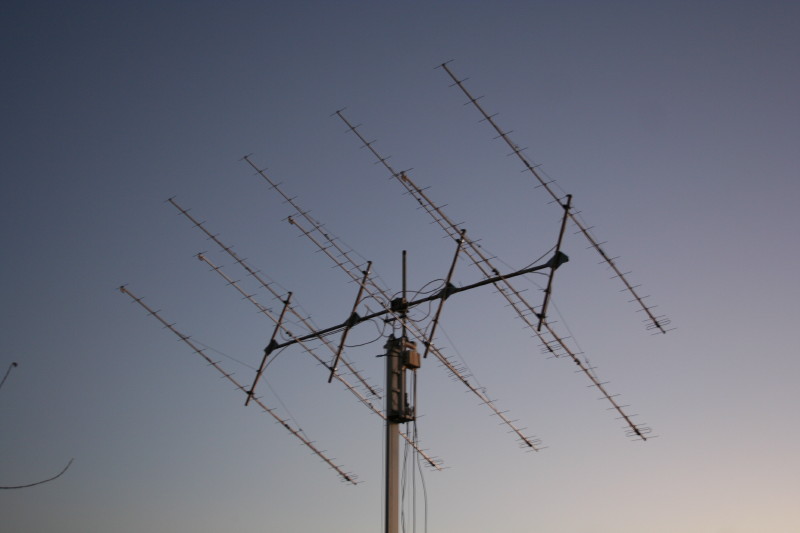

8x21el F9FT -  Array gain is 24.5 dbd (26.65 dbi)

Loss before the LNA is estimated about 1 db (probably more, hi...)

LNA : 0.4db NF ; 33db gain

Phasing lines : Gedelex 2,3/50cc

TX line : 17m Gedelex 9/50cc + some 10 meters of  Cellflex LCF 1/2"

RX line : RG213

TX : TS-790E  ----- RX : LT-70S with FT990 - Spectran as DSP
